AMGO 408-P 8,000 lb 4-Post Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
* Free Drip Trays & Jack Tray *
8,000-lb. Capacity/ Four Post Parking Lift /Deluxe/The 408 deluxe series is a comfortable parking solution for vehicles up to 8,000lbs. This lift is sturdy and space-saving, with a wider entrance and longer platforms. It doesn't require anchoring to concrete and can easily be moved using caster kits. Deluxe & easy to use ā this makes it perfect for residential and commercial usage.
Features
ā Lifting capacity: 8,000lbs;
ā AMGO ETL certified power unit comes standard;
ā High quality dual hydraulic direct-drive cylinders;
ā AMGO's patented design: concealed safety lock control device with a manual single-point lock release;
ā Aero standard cables come standard;
ā Double-Ā
Ā shaped columns are used to increase strength;
ā Non-slip platforms come with foldable drive-in ramps;
ā Support back-to-back installation to save space;
ā The power side column can be installed at any corner.

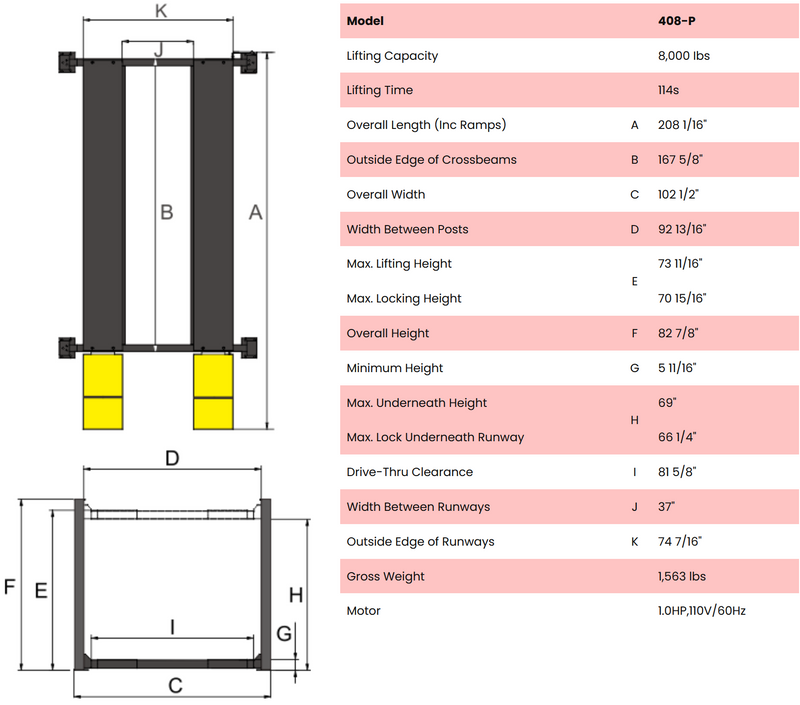

Specifications
| Model | 408-P | |
|---|---|---|
| Lifting Capacity | 8,000 Ibs | |
| Lifting Time | 114s | |
| Overall Length (Inc Ramps) | A | 208 1/16" |
| Outside Edge of Crossbeams | B | 167 5/8" |
| Overall Width | C | 102 1/2" |
| Width Between Posts | D | 92 13/16" |
| Max. Lifting Height | E | 73 11/16" |
| Max. Locking Height | 70 15/16" | |
| Overall Height | F | 82 7/8" |
| Minimum Height | G | 5 11/16" |
| Max. Underneath Height | H | 69" |
| Max. Lock Underneath Runway | 66 1/4" | |
| Drive-Thru Clearance | I | 81 5/8" |
| Width Between Runways | J | 37" |
| Outside Edge of Runways | K | 74 7/16" |
| Gross Weight | 1,563 lbs | |
| Motor | 1.0HP, 110V/60Hz |
