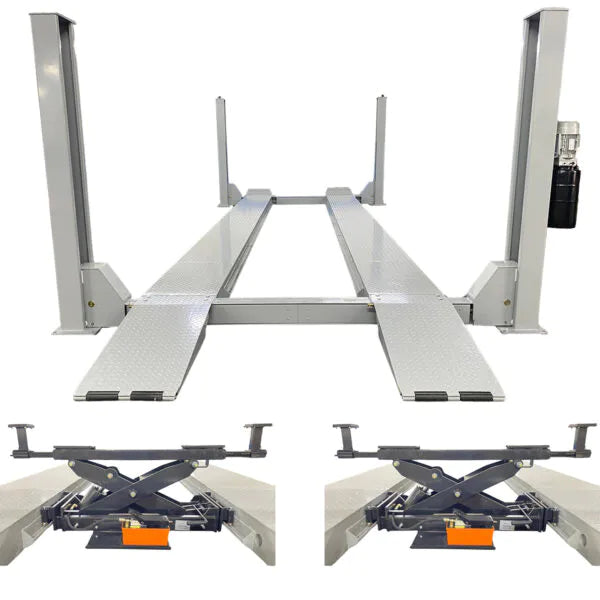

Triumph NTR-24 & 2x RJ-15 24,000lb 4-Post Lift & Two 15,000lb Rolling Bridge Jacks
by TRIUMPH
SKU NTR-24_2X_RJ-15
Save $550.00
Original price
$22,400.00
Original price
$22,400.00
-
Original price
$22,400.00
Original price
$22,400.00
Current price
$21,850.00
$21,850.00
-
$21,850.00
Current price
$21,850.00
Authorized Dealer
We are an authorized dealer for all TRIUMPH branded products.
24,000lb 4-Post Lift & Two 15,000lb Rolling Bridge Jacks
NTR-24
Features
- Pneumatic lock release with 4 pcs air cylinder and central control valve
- Machined pulleys with heat treatment , anti-slip fixed screw and internal grease lubrication
- Built-in parachute valve protection in case of hydraulic line fracture
- Built-in relief valve to prevent overloading
- Cable anti-break kit incl.
Specifications
| Capacity | 24,000 lbs. |
| Overall Height | 93.1″ |
| Overall Length Without approach ramps | 300″ |
| Overall Length With approach ramps | 338.9″ |
| Overall Width | 150.1″ |
| Minimum Runway Height | 9″ |
| Maximum Lifting Height | 70.8″ |
| Runway Length | 289.9″ |
| Runway Width | 24″ |
| Between Runway | 45.3-49.2″ |
| Width between columns | 131.8″ |
| Number of Lock positions | 9 |
| Electrical Requirement | 220 Volt Single Phase |
| Shipping Weight | 6614 lbs |
| Shipping Dimensions | 295x30x43 inches |
RJ-15
- Includes 2 sets of Height Adapters, 5″ and 6.75″
| Capacity | 15,000 lbs. |
| Lowered Height | 15.3″ |
| Maximum Lifting Height | 28.3″ |
| Minimum Width between Pads | 42.6″ |
| Maximum Width between pads | 68.7″ |
| Minimum Width between Runways | 48.7″ |
| Maximum Width between Runways | 55″ |
| Shipping Weight | 661 lbs |
| Shipping Dimensions | 51x33x17 inches |
