Triumph NTR-16 & 2x RJ-9 16,000lb 4-Post Lift & Two 9,000lb Rolling Bridge Jacks
by TRIUMPH
SKU NTR-16_2X_RJ-9
Save $2,250.00
Original price
$14,900.00
Original price
$14,900.00
-
Original price
$14,900.00
Original price
$14,900.00
Current price
$12,650.00
$12,650.00
-
$12,650.00
Current price
$12,650.00
Authorized Dealer
We are an authorized dealer for all TRIUMPH branded products.

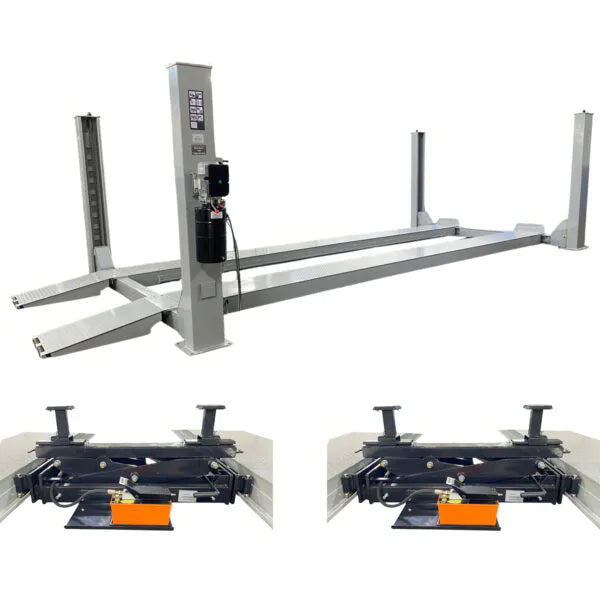

16,000lb 4-Post Lift & Two 9,000lb Rolling Bridge Jacks

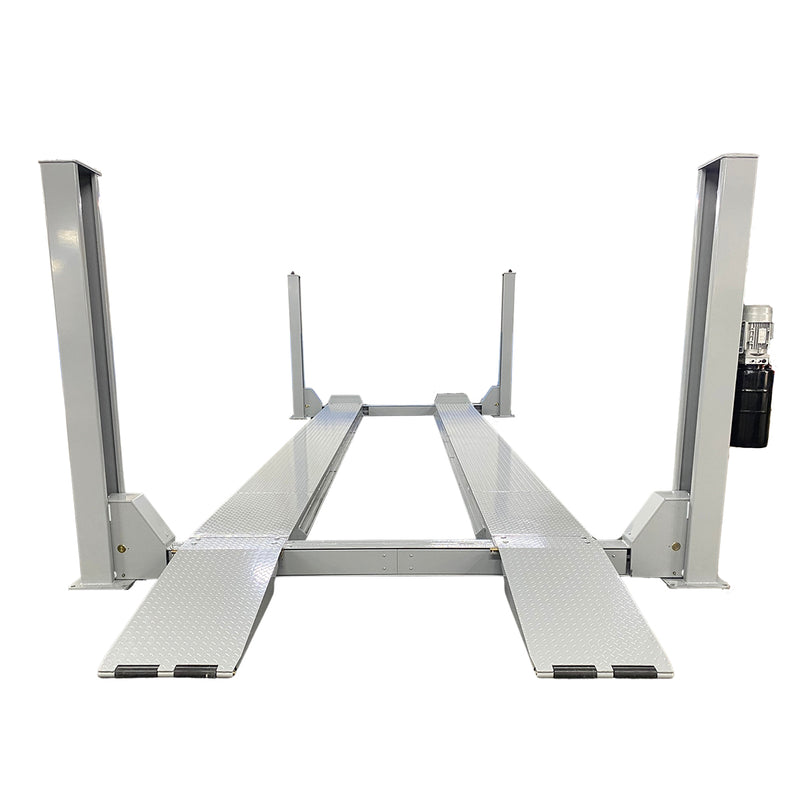

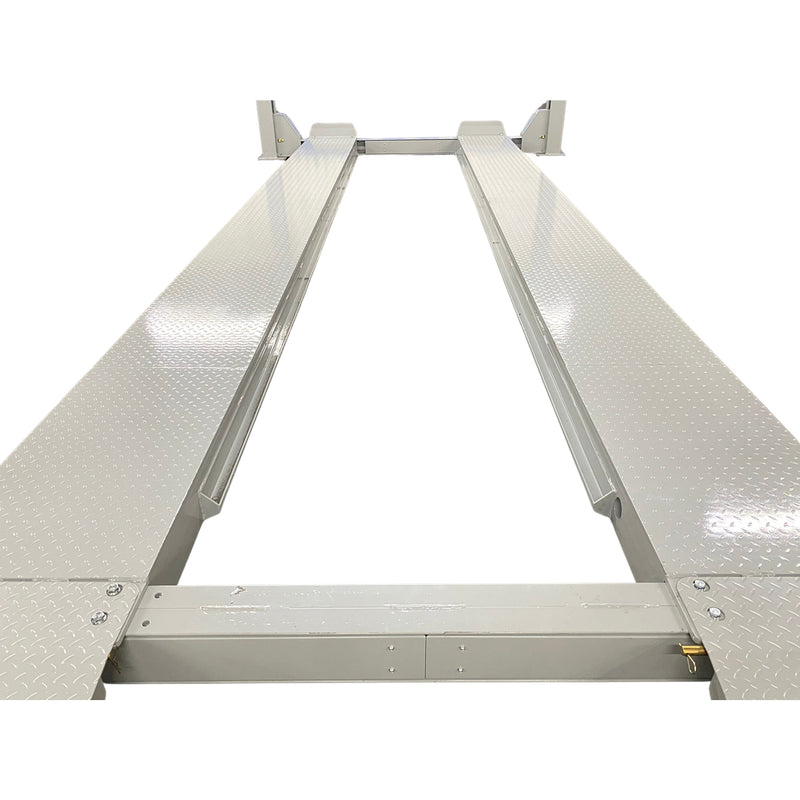

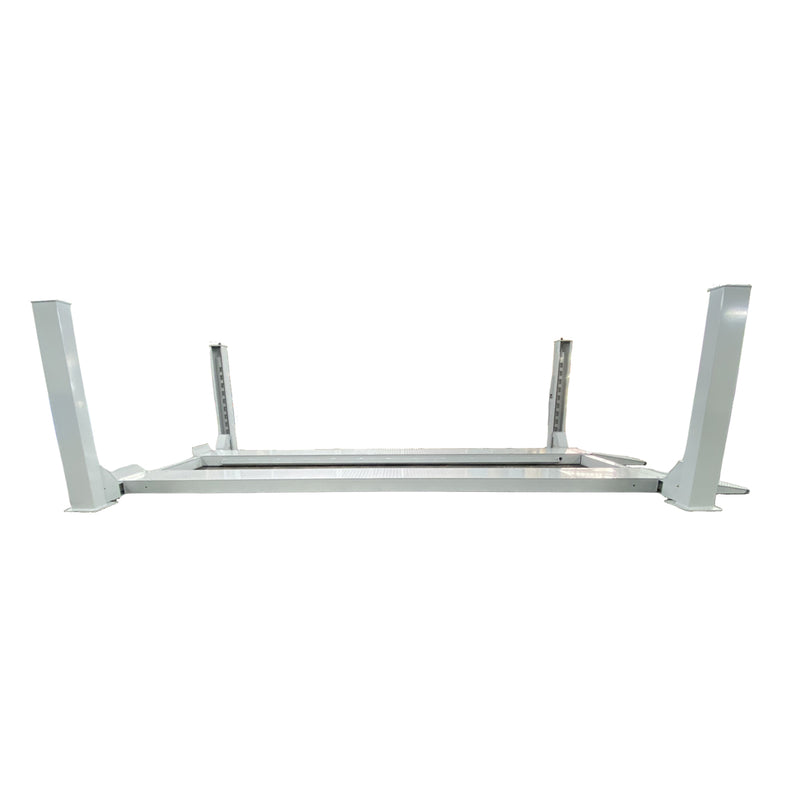

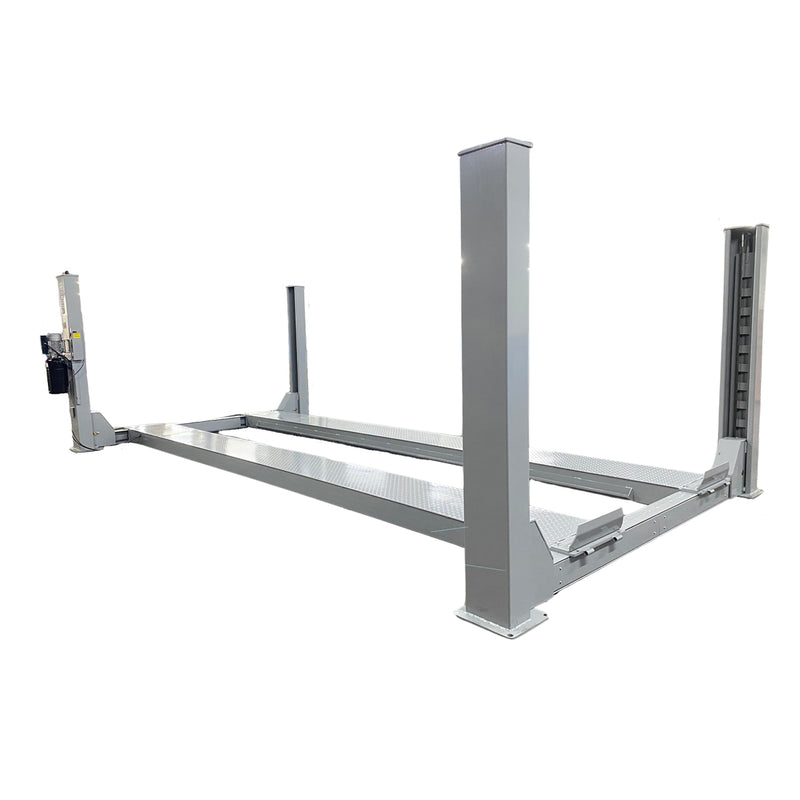

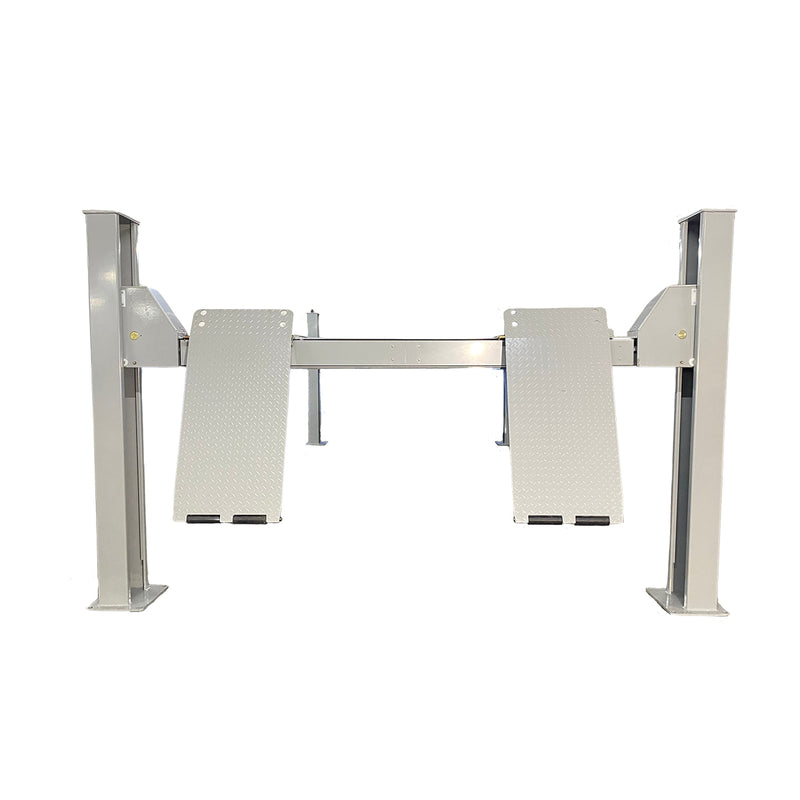

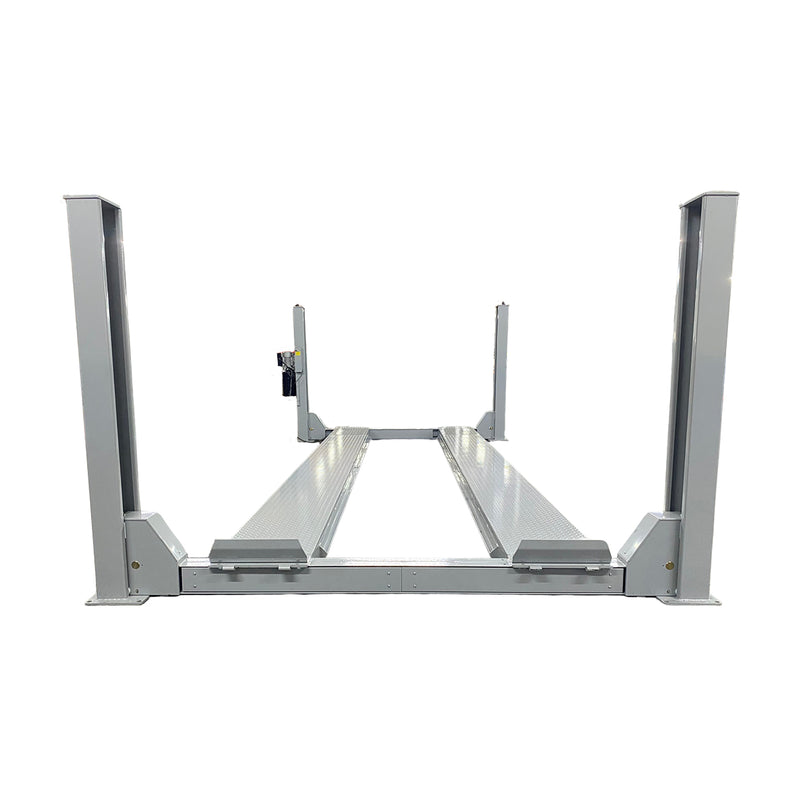

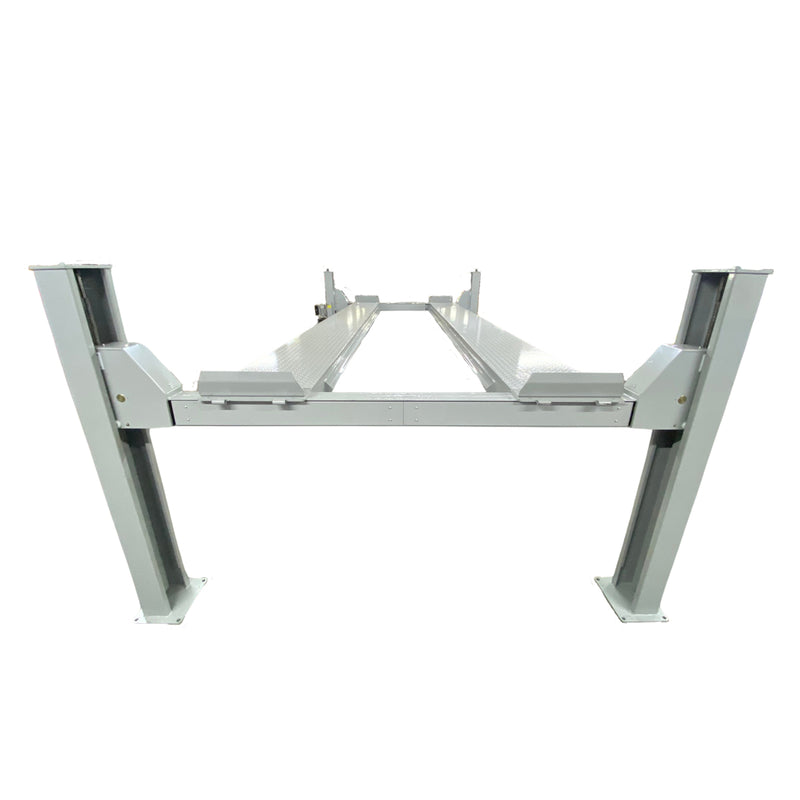

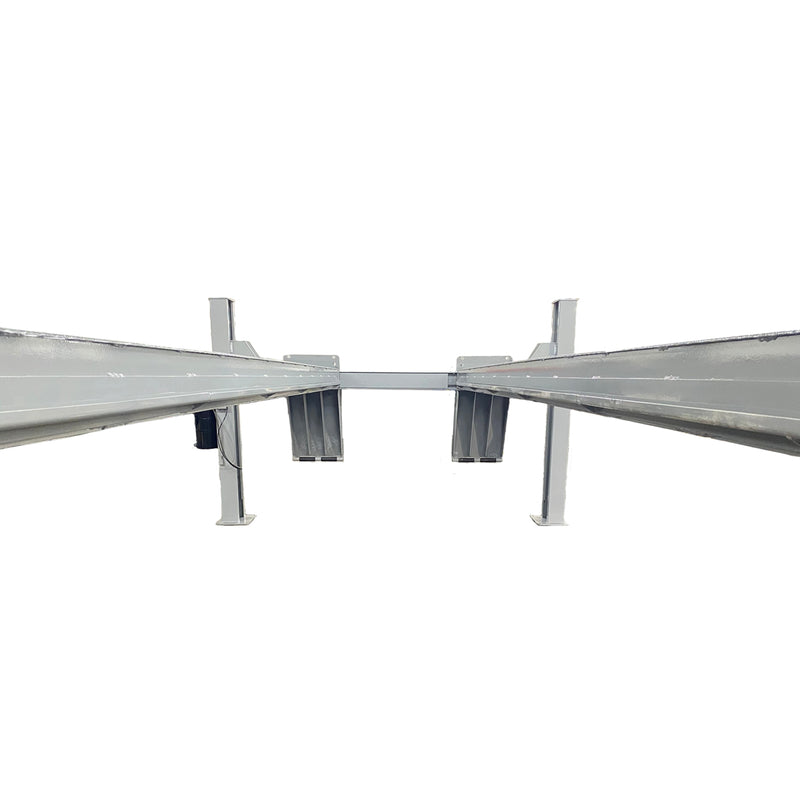

NTR-16 Lift
Features
- Pneumatic lock release with 4 pcs air cylinder and central control valve
- Machined pulleys with heat treatment , anti-slip fixed screw and internal grease lubrication
- Built-in parachute valve protection in case of hydraulic line fracture
- Built-in relief valve to prevent overloading
- Cable anti-break kit incl.
Specifications
| Capacity | 16,000 lbs. |
| Overall Height | 88.7ā³ |
| Overall Length Without approach ramps | 235ā³ |

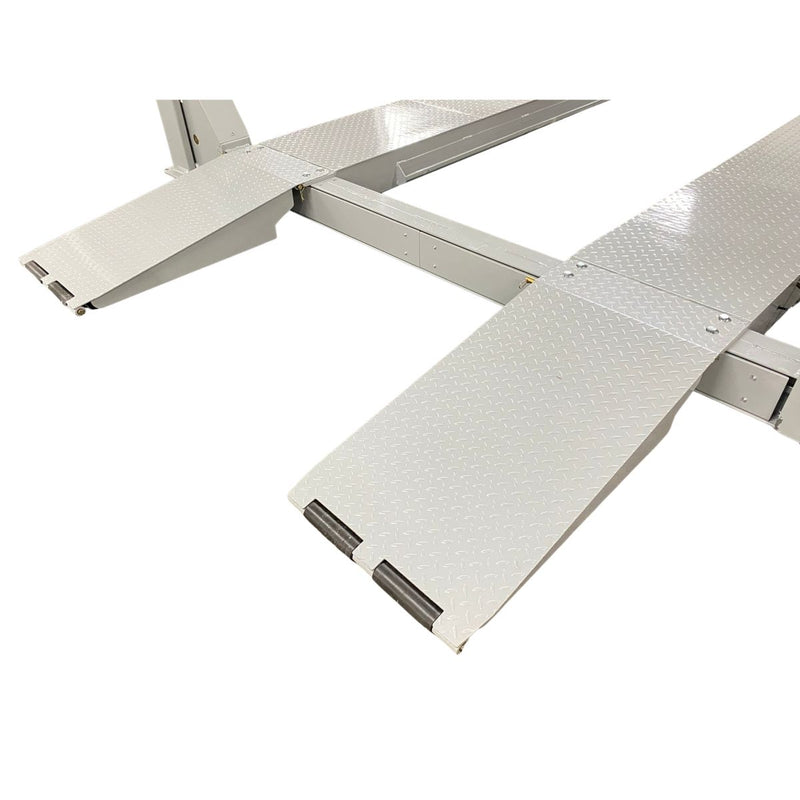

| Overall Length With approach ramps | 273.9ā³ |
| Overall Width | 161ā³ |
| Minimum Runway Height | 7.5ā³ |
| Maximum Lifting Height | 74.4ā³ |
| Runway Length | 224.5ā³ |
| Runway Width | 20ā³ |
| Between Runway | 42.5ā³ ā 46.4ā³ |
| Width between columns | 134.2ā³ |
| Number of Lock Positions | 12 |
| Electrical Requirement | 220 Volt Single Phase |
| Shipping Weight | 3,112 lbs |
| Shipping Dimensions | 234x23x43 inches |
Ā

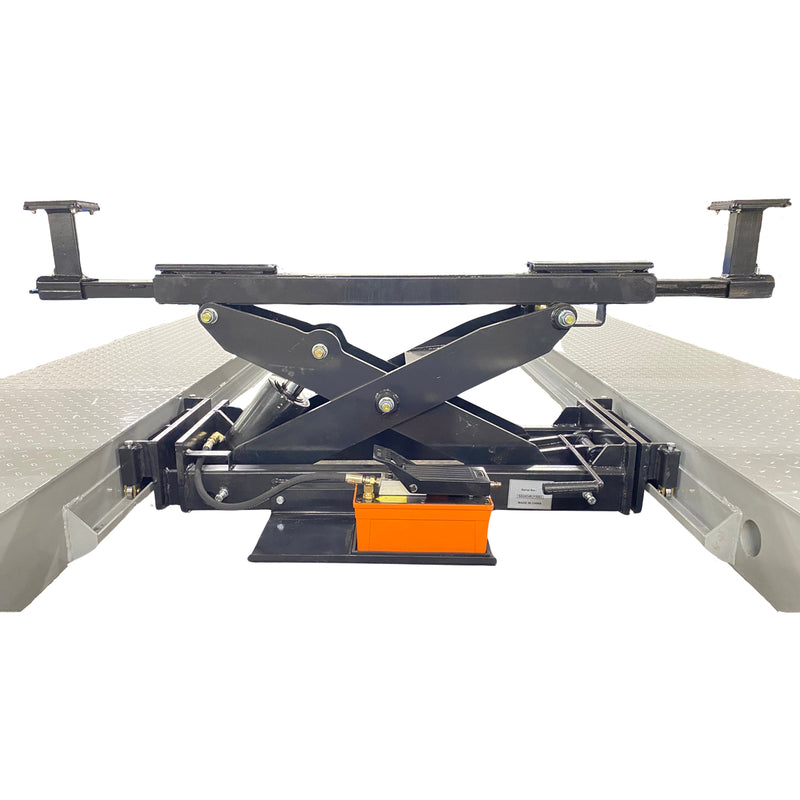

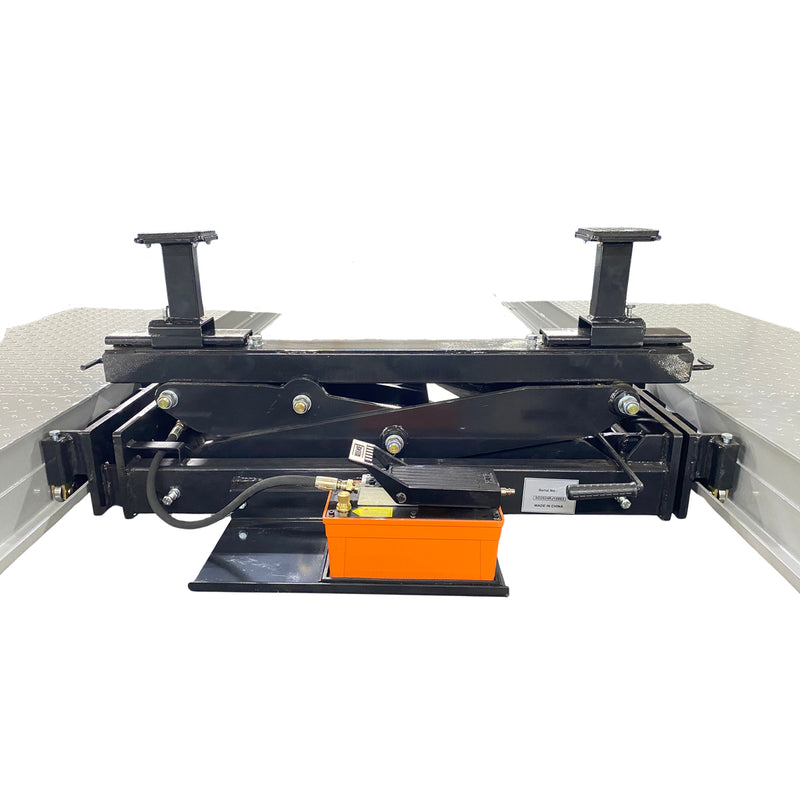

RJ-9 Bridge Jack
- Includes 2 sets of Height Adapters, 1.5ā³ and 5ā³
| Capacity | 9,000 lbs. |
| Lowered Height | 16.9ā³ |
| Maximum Lifting Height | 32.4ā³ |
| Minimum Width between Pads | 40.1ā³ |
| Maximum Width between pads | 59.8ā³ |
| Minimum Width between Runways | 43.8ā³ |
| Maximum Width between Runways | 52.3ā³ |
| Shipping Weight | 600 lbs |
| Shipping Dimensions | 48x28x16 inches |
