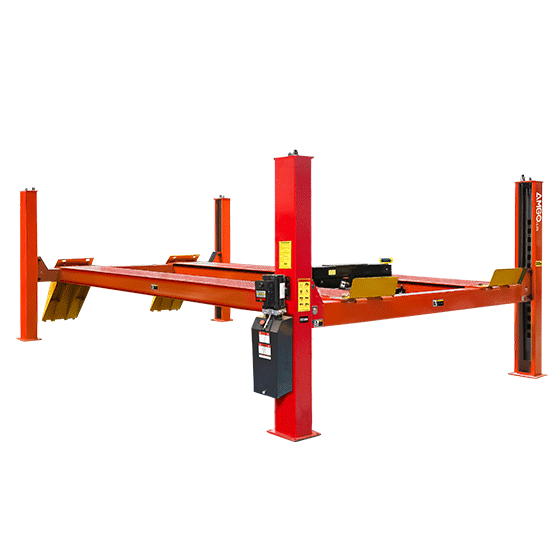

AMGO PRO-30E 30,000 lb 4-Post Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
The PRO-30E, being 59″ longer than the PRO-30, enhances both performance and comfort when it comes to lifting vehicles of even greater length.
Features
• ETL certified AMGO power unit comes standard;
• Mechanical self-locking safety device with air-driven lock release;
• Standard primary safety locks and cable-slack protection system;
• Cable-driven system utilizing areo standard, high-quality cable ;
• Hydraulic cylinders are designed and manufactured to a high standard, utilizing high-quality oil seals and a compensation valve;
• Non-skid diamond platforms with two widths setting.

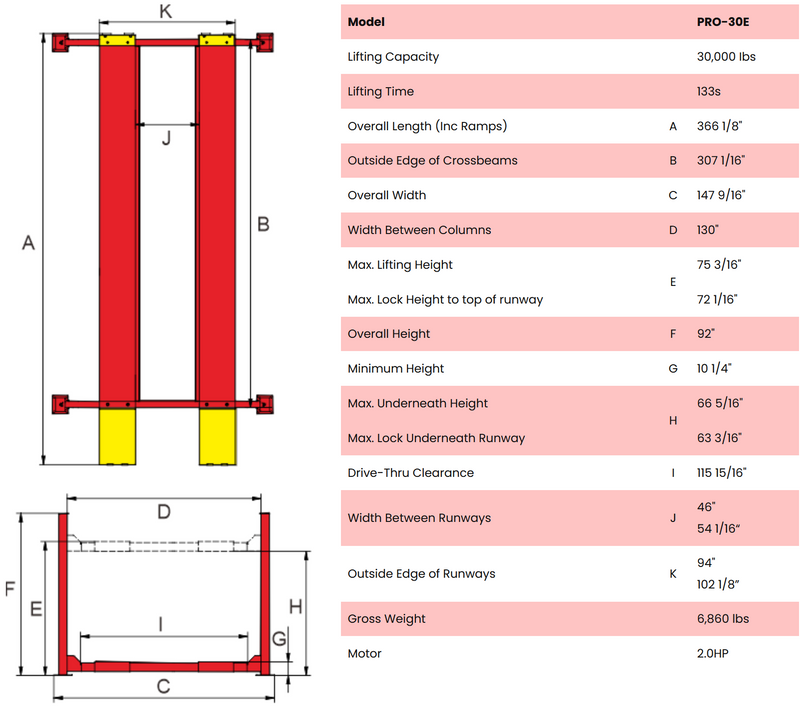

Specifications
| Model | PRO-30E | |
|---|---|---|
| Lifting Capacity | 30,000 Ibs | |
| Lifting Time | 133s | |
| Overall Length (Inc Ramps) | A | 366 1/8" |
| Outside Edge of Crossbeams | B | 307 1/16" |
| Overall Width | C | 147 9/16" |
| Width Between Columns | D | 130" |
| Max. Lifting Height | E | 75 3/16" |
| Max. Lock Height to top of runway | 72 1/16" | |
| Overall Height | F | 92" |
| Minimum Height | G | 10 1/4" |
| Max. Underneath Height | H | 66 5/16" |
| Max. Lock Underneath Runway | 63 3/16" | |
| Drive-Thru Clearance | I | 115 15/16" |
| Width Between Runways | J | 46" 54 1/16“ |
| Outside Edge of Runways | K | 94" 102 1/8” |
| Gross Weight | 6,860 lbs | |
| Motor | 2.0HP |
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Standard primary safety locks and cable-slack protection system.
Hydraulic cylinders are designed and manufactured to a high standard, utilizing high-quality oil seals and a compensation valve.
Non-slip diamond platforms with two-width setting.
Optional Air line kits-All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40106A
Optional rolling jack with 20,000lbs capacity: RJ-20A- pneumatic.
Shipping Information
1 units/package, packing measurement (LxWxH): 317 5/16" x 26"x 39 3/8". Packed with Power Unit.
2 units/package, packing measurement (LxWxH) : 317 5/16" x 26"x 78 3/4"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
Use a forklift to lift up one end of the machine about 2"-5" from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
