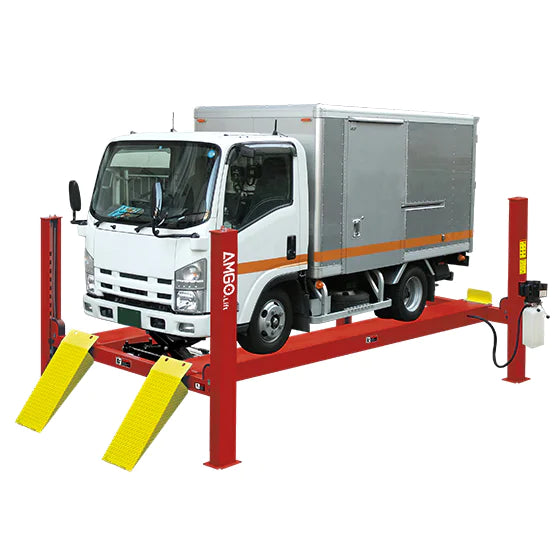

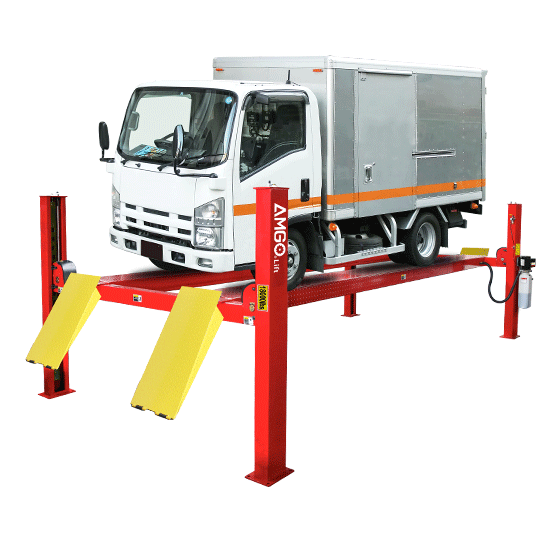

AMGO PRO-18 18,000 lb 4-Post Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
The AMGO PRO-18 delivers a 18,000-lb capacity and a heavy-duty design that’s built to handle a wide range of vehicles, including buses and trucks, to commercial heavy-duty vehicles and standard passenger cars. Its oversized platforms easily accommodate a wide range of tire widths, making even the heaviest jobs feel effortless.
Features
• 18,000 lbs capacity;
• AMGO ETL certified power unit comes standard;
• Mechanical self-locking safety device with air-driven lock release;
• Standard primary safety locks and cable-slack protection system;
• Cable-driven system with areo standard high quality cables;
• Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve;
• Non-skid diamond platforms.

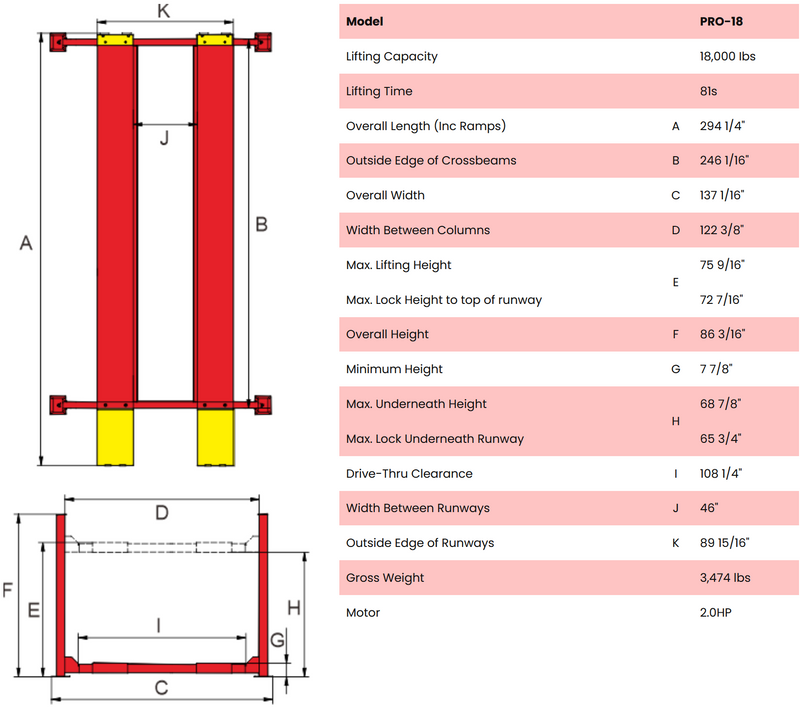

Specifications
| Model | PRO-18 | |
|---|---|---|
| Lifting Capacity | 18,000 Ibs | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 294 1/4" |
| Outside Edge of Crossbeams | B | 246 1/16" |
| Overall Width | C | 137 1/16" |
| Width Between Columns | D | 122 3/8" |
| Max. Lifting Height | E | 75 9/16" |
| Max. Lock Height to top of runway | 72 7/16" | |
| Overall Height | F | 86 3/16" |
| Minimum Height | G | 7 7/8" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 108 1/4" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 89 15/16" |
| Gross Weight | 3,474 lbs | |
| Motor | 2.0HP |

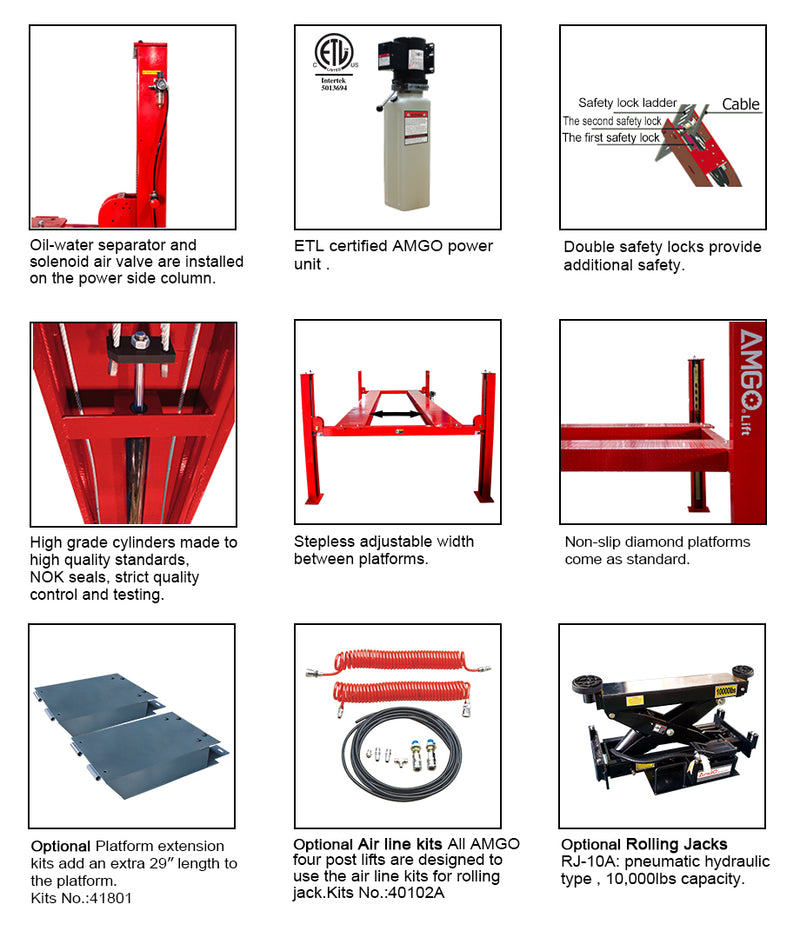

Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Standard primary safety locks and cable-slack protection system.
Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve.
Non-slip diamond platforms come standard.
Optional extension platform kit. Kits No.:41801-01
Optional Air line kits-All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional rolling jacks with 10,000lbs capacity: RJ-10A - pneumatic.
Shipping Information
1 units/package, packing measurement (LxWxH): 255 5/16" x 24 13/16"x 34 5/16". Packed with Power Unit.
2 units/package, packing measurement (LxWxH) : 255 5/16" x 24 13/16"x 66 9/16"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
Use a forklift to lift up one end of the machine about 2"-5" from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
