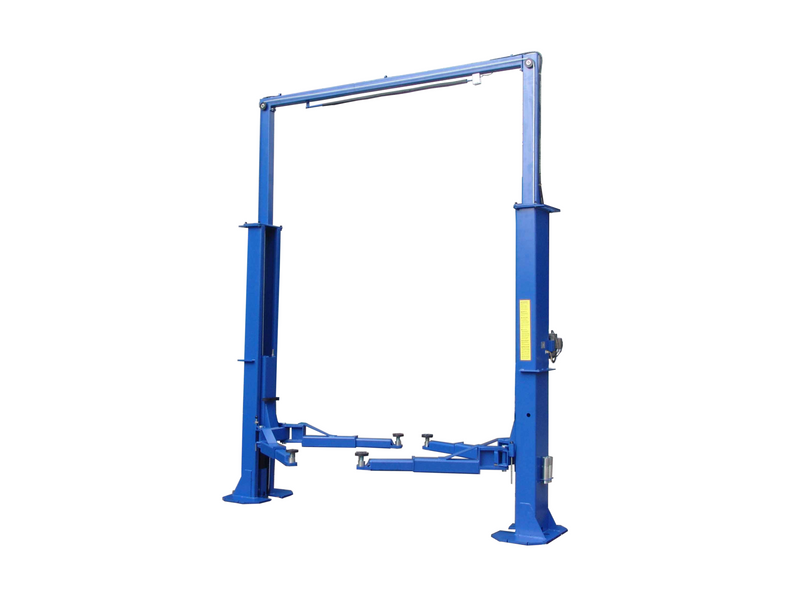

Tuxedo TP15KCX 15,000 lb 2-Post Clearfloor Lift
by TUXEDO
SKU TP15KCX
Save $301.00
Original price
$7,600.00
Original price
$7,600.00
-
Original price
$7,600.00
Original price
$7,600.00
Current price
$7,299.00
$7,299.00
-
$7,299.00
Current price
$7,299.00
Authorized Dealer
We are an authorized dealer for all TUXEDO branded products.
- 15,000 lbs Capacity
- Symmetric Arms
- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- auto Arm Restraint System

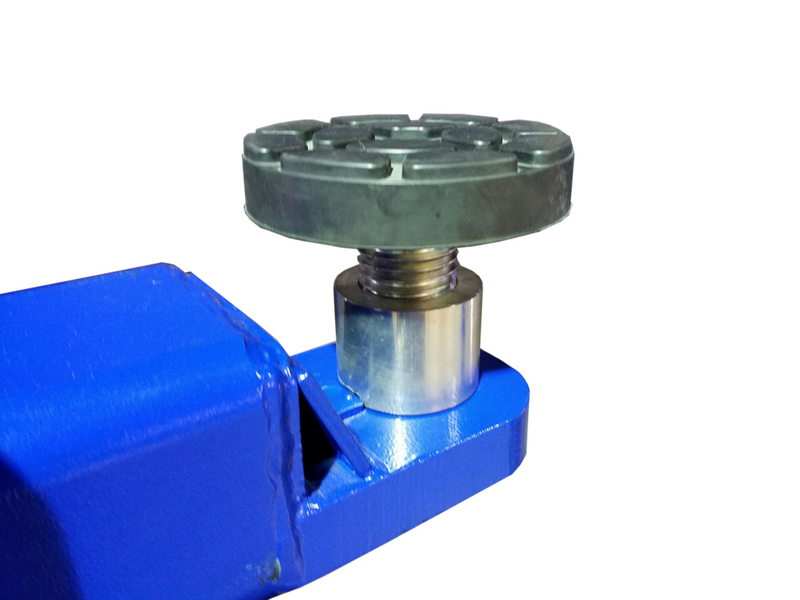

- Spin Up Lift Pads

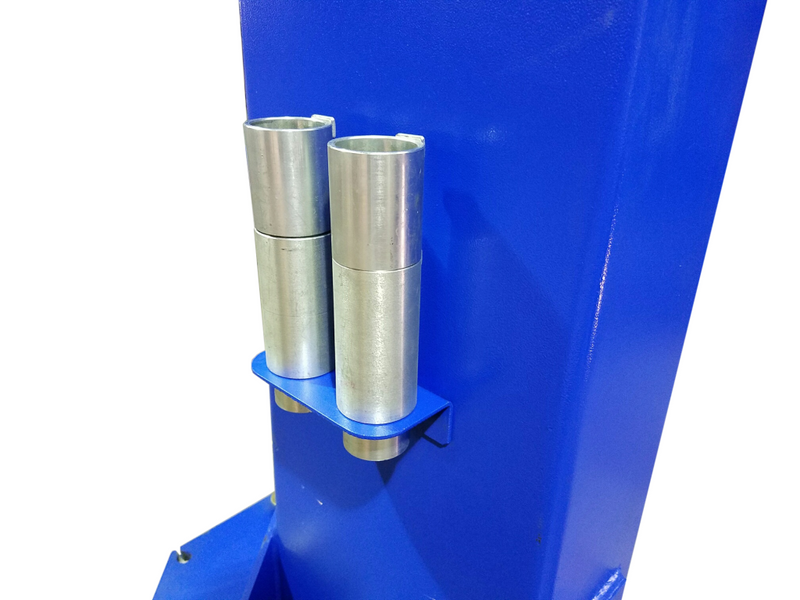

- Stackable Adapter Included

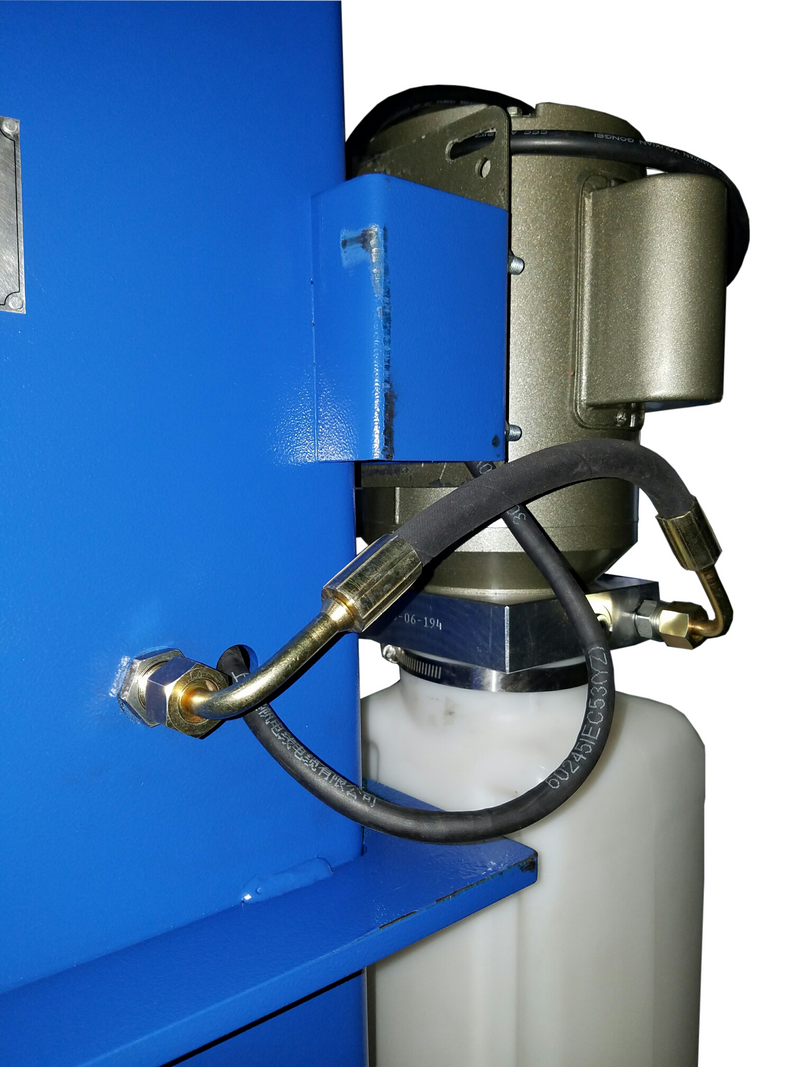

- Internal Hose routing
| Capacity | 15,000 lbs. |
| Height Overall | 179-3/8″ |
| Width Overall w/ Power Unit | 148-3/8″ |
| Max Lift Height | 76-1/2″ |
| Width Between Columns | 120-3/4″ |
| Min. Pad Height | 5″ |
| Drive Thru Clearance | 109-3/8″ |
| Lifting Speed | 45S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37″ – 52″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,750 lbs. |
| Ship Weight | 2,575 lbs |
| Power | 220V – 20 AMP – 1 PH |
