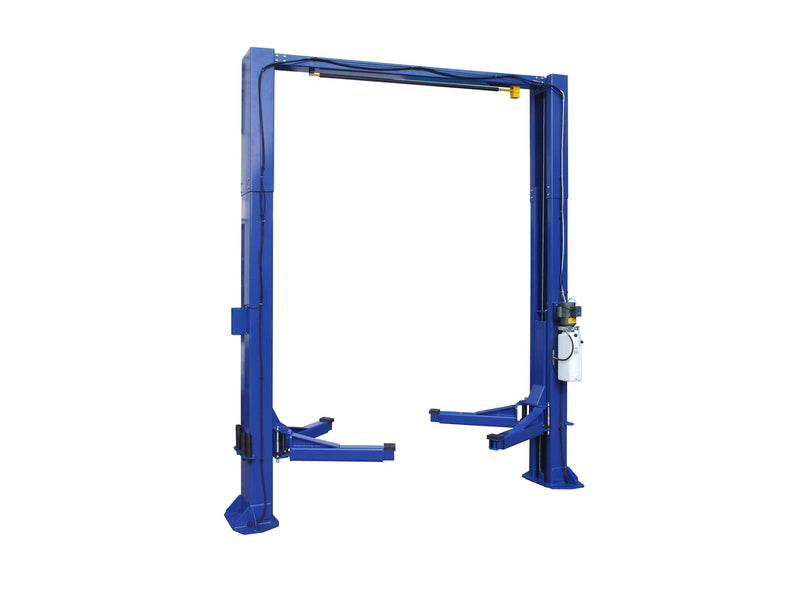

Tuxedo TP12KC-D 12,000 lb 2-Post Clear Floor Lift
by TUXEDO
SKU TP12KC-D
Save $251.00
Original price
$5,600.00
Original price
$5,600.00
-
Original price
$5,600.00
Original price
$5,600.00
Current price
$5,349.00
$5,349.00
-
$5,349.00
Current price
$5,349.00
Authorized Dealer
We are an authorized dealer for all TUXEDO branded products.
Big. Strong. Dependable. The fully gusseted oversized base plates on the TP12KC-D and the big lifting arms with reinforced swivel pin holes, promise years of reliable service.
- 12,000 lbs Capacity
- Symmetric Arms
- Rubber Door Guards
- Direct Drive push Cylinders
- Single Point pneumatic Lock Release
- Heavy Duty Arm Restraint System
- Drop-in Lift Pads
- Stackable Adapters Included
- External hose guards
| Capacity | 12,000 lbs. |
| Height Overall | 165″ |
| Width Overall w/ Power Unit | 151″ |
| Max Lift Height | 72″ |
| Width Between Columns | 122″ |
| Min. Pad Height | 5.5″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37-5/8″ – 56-3/4″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,000 lbs. |
| Ship Weight | 2,295 lbs |
| Power | 220V – 20 AMP – 1 PH |
