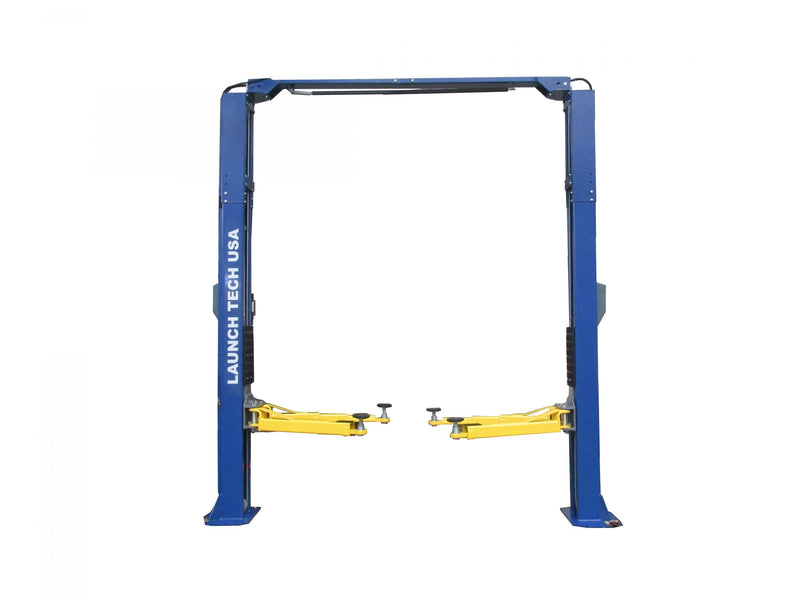

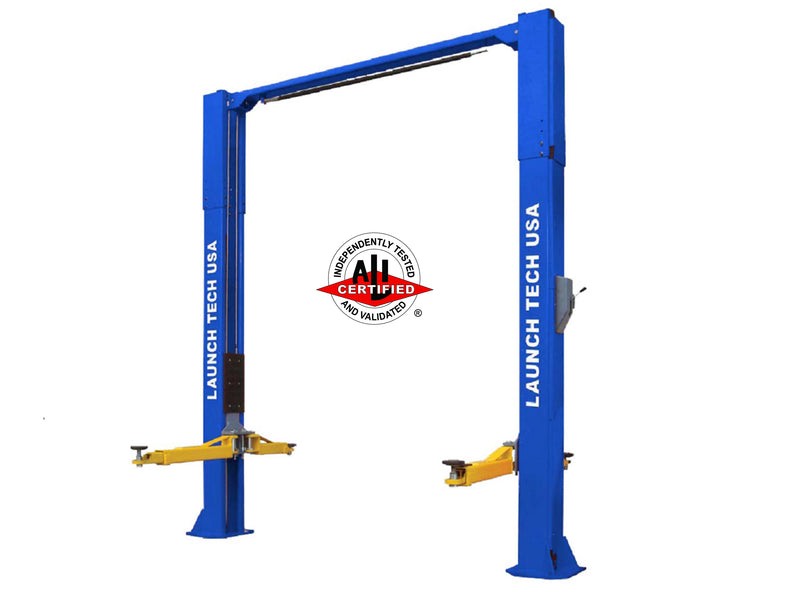

LAUNCH TECH USA TLT210-XT-B 10,000 lb 2-Post Clear Floor Lift
by TUXEDO
SKU TLT210-XT-B
Save $950.00
Original price
$5,499.00
Original price
$5,499.00
-
Original price
$5,499.00
Original price
$5,499.00
Current price
$4,549.00
$4,549.00
-
$4,549.00
Current price
$4,549.00
Authorized Dealer
We are an authorized dealer for all TUXEDO branded products.
Multi Purpose full asymmetric lift that is height and width adjustable and may be installed in a standard or rotated column configuration to accommodate the smallest cars to the largest SUV’s and trucks. This ALI/ETL certified lift comes with a one(1) year limited warranty.
- ALI certified
- 10,000 lbs capacity
- Direct Drive cylinders

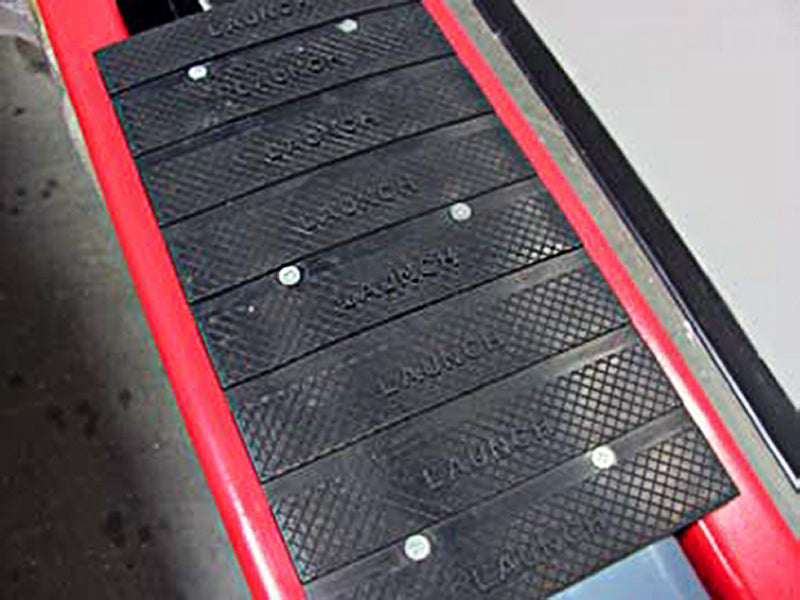

- Rubber Door Guards

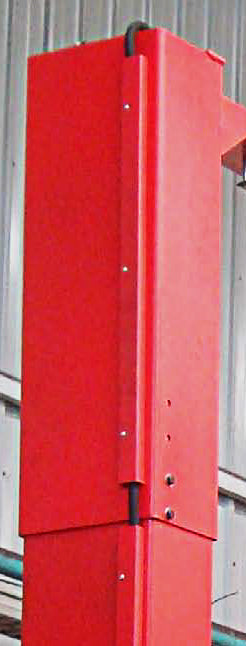

- Outer Hose Guards
- Single Point Lock Release

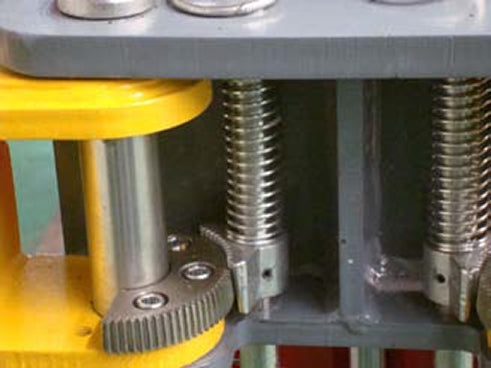

- Heavy Duty Arm Restraint System

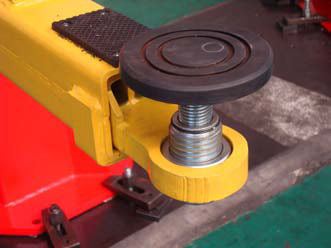

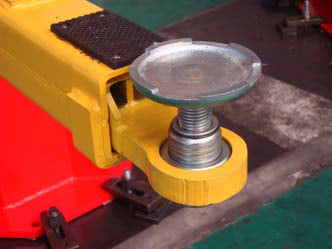

- Double Telescoping Screw Pads
- Adjustable Column Height & width
- Standard or Rotated Asymmetric Columns

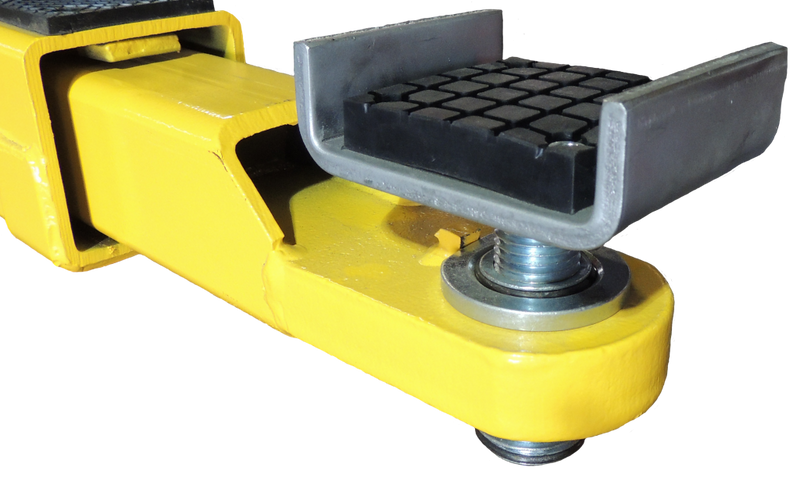

- Stackable Pad Extensions
- 3 Stage Front Arms
| Capacity | 10,000 lbs. |
| Height Overall | 145-1/2″ / 149″ |
| Width Overall w/ Power Unit | Asymmetric: 138″ Symmetric: 137″ |
| Max Lift Height | 73″ |
| Width Between Columns | 110″ / 102″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | Asymmetric: 88″ Symmetric: 98.4″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric/Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 23-5/8″-43-1/2″ |
| Long Arm Reach – min/max | 38-5/8″-61-7/8″ |
| Narrow Bay Setting | Deduct 5.9″ |
| Max Load Per Arm | 2,500 lbs |
| Ship Weight | 1,750 lbs |
| Power | 208-230V-60Hz-1 PH |
