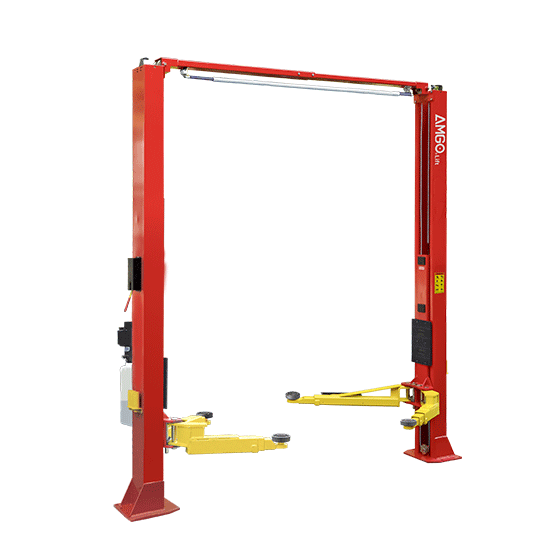

AMGO OHX-10H 10,000 lb 2-Post Overhead Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
AMGO OHX-10H is designed for exceptionally high-clearance lifting, reaching up to a maximum height of 87 3/4″, which makes working beneath a vehicle more comfortable. Featuring two height settings reaching up to 14ft and extremely long carriages, which guarantee strong performance, stability, and minimal maintenance. With 10,000lbs capacity, this lift is the ideal choice to perform your professional lifting services.
Features
- Lifting capacity: 10,000 lbs;
- High quality dual hydraulic direct-drive cylinders;
- The
arms allow a symmetrical or an asymmetrical loading, ensuring adequate door clearance; - Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- The clear-floor design provides an unobstructed workspace;
- The overhead safety shut-off device for maximum vehicle protection;
- Two standard height settings accommodate various ceiling heights;
- Additional optional kits are available to extend the height and width to support a more comprehensive service;
- Self-lubricating UHMW polyethylene sliders;
- Automatic arms restraint;
- Areo sync cables comestandard;
- Detachable toe guard and tool tray come standard;
- Standard double-screw rubber pad ( pin dia 2” ) with 3” extension adapters.
Specifications
| Model OHX-10H | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 63s | |
| Max. Lifting height: (w/o extension adapter) | A | 78 3/4"~ 80 5/8" |
| Max. Lifting height: (w/ extension adapter) | 81 3/4"~ 83 5/8" | |
| Max. lock height: (w/o extension adapter) | 77 3/16"~ 79 1/16" | |
| Max. lock height: (w/ extension adapter) | 80 3/16"~ 82 1/16" | |
| Overall Height | B | 157" （low setting) 167 3/16" (high setting) |
| Overall Width | C | 134 15/16" |
| Drive-Thru Clearance | D | 99 13/16" |
| Width Between Columns | E | 112 1/4" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,709 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 15 Units/20'GP |
Single-point manual safety lock release that simultaneously unlocks both columns from one side.
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders.
Automatic arm restraints.
Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
Two standard height settings accommodate various ceiling height.
Extremely long carriages, more than twice the length of comparable models on the market.
Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.
Optional saddle adapter. Kits No.: 21108
Optional 6" extension adapter, P/N: 1102504001-01.
Optional width extension kits, that can extend the width between columns from 112 1/4" to 118 1/8". Kits No.: 21005
