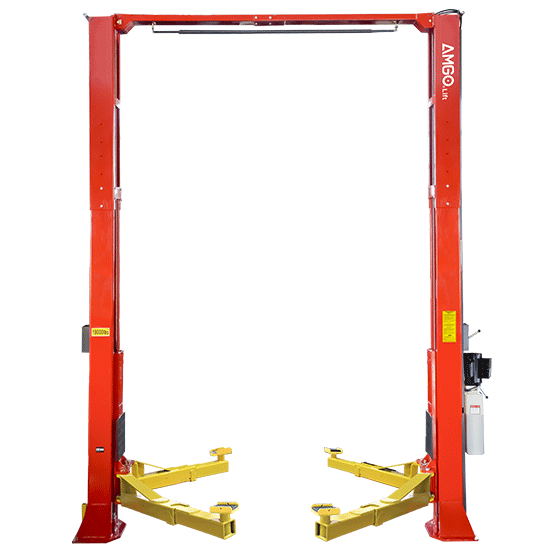

AMGO OH-18 18,000 lb 2-Post Overhead Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
AMGO’s latest OH-18 boasts heavy-duty construction and offers a high lifting capacity up to 18000lbs. It features long, sturdy carriages for enhanced stability and is equipped with two types of rubber pads for various vehicles. Additionally, it incorporates AMGO’s 3 in 1 technology to effortlessly reach different height settings.
Features
- Lifting capacity: 18,000 lbs;
- High quality dual hydraulic direct-drive cylinders;
- 4 two-stage sturdy arms ensure the heavy load stability;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- The clear-floor design provides an unobstructed workspace;
- The overhead safety shut-off device for maximum vehicle protection;
- Exclusive: adjustable three height setting accommodates varying service ceiling heights;
- Extremely long carriages are equipped to enhance the stability and durability;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Aero sync cables come standard;
- Detachable toe guard and tool tray come standard;
- Both heavy-duty single-screw rubber pad and saddle adapter come as standard;
- Both 3” and 6” extension adapters come as standard.
Specifications
| Model OH-18 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 18,000 Ibs | |
| Lifting Time | 84s | |
| Max. Lifting height: (w/o extension adapter) | A | 74 7/8"~76 1/4" |
| Max. Lifting height: (w/ extension adapter) | 83 7/8"~ 85 1/4" | |
| Max. lock height: (w/o extension adapter) | 72 7/8"~ 74 1/4" | |
| Max. lock height: (w/ extension adapter) | 81 7/8"~ 83 1/4" | |
| Overall Height: (low setting) | B | 174" |
| Overall Height: (medium setting) | 186" | |
| Overall Height: (high setting) | 198" | |
| Overall Width | C | 151 15/16" |
| Drive-Thru Clearance | D | 110 7/16" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 6 7/8" |
| Gross Weight | 2,906 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 24 Units/40'GP |
Single-point manual safety lock release that simultaneously unlocks both columns from one side
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders.
Automatic arm restraints.
Standard heavy-duty 2-stage arms (P/N of Lifting arm assy. :1102794001C-03).
Standard heavy-duty single screw rubber pads and saddle adapters.
Standard 3" and 6" extension adapters.
Optional heavy duty extreme wide saddle adapter. Kits No. 21109
Shipping Information
2 units/package, packing measurement (LxWxH) : 133 7/8" x 22 1/2" x 74 3/8" (Packed with power unit)
Attention to forklift loading and unloading
