AMGO OH-15 15,000 lb 2-Post Overhead Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
The OH-15 stands out in the AMGO lineup for its superior heavy lifting capabilities. Built with a heavy-duty construction, standard single screw rubber pads and heavy-duty saddle adapters, it fulfills diverse lifting needs – from vans, to commercial vehicles and heavy-duty trucks. It incorporates AMGO’s 3-in-1 technology, simplifying installation and providing three tall height settings to accommodate different vehicles.
Features
- Lifting capacity: 15,000 lbs;
- High quality dual hydraulic direct-drive cylinders;
- 4 two-stage sturdy arms are capable to lift trucks with different wheel bases;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- The clear-floor design provides an unobstructed workspace;
- The overhead safety shut-off device for maximum vehicle protection;
- Exclusive: adjustable three height setting accommodates varying service ceiling heights;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Aero sync cables come standard;
- Detachable toe guard and tool tray come standard;
- Both heavy-duty single-screw rubber pad and saddle adapter come as standard;
- Both 3” and 6” extension adapters come as standard.

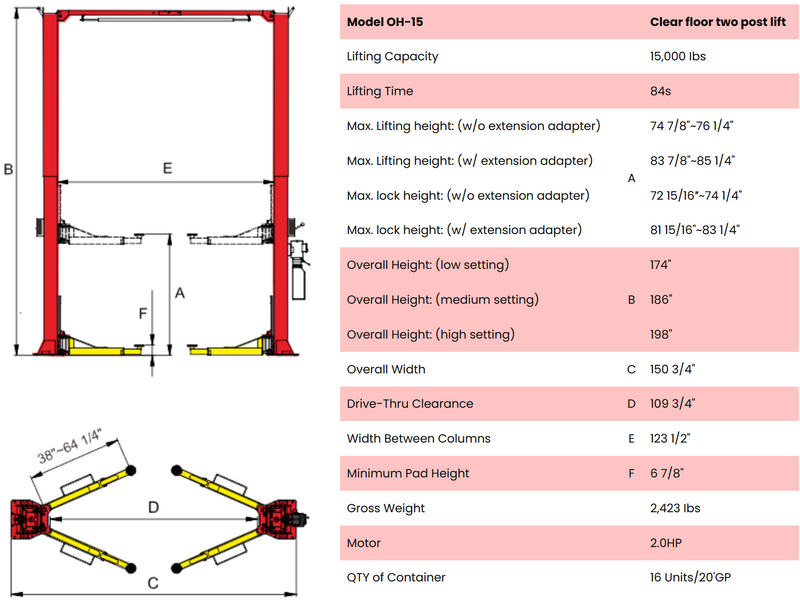

Specifications
| Model OH-15 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 15,000 Ibs | |
| Lifting Time | 84s | |
| Max. Lifting height: (w/o extension adapter) | A | 74 7/8"~76 1/4" |
| Max. Lifting height: (w/ extension adapter) | 83 7/8"~85 1/4" | |
| Max. lock height: (w/o extension adapter) | 72 15/16″~74 1/4" | |
| Max. lock height: (w/ extension adapter) | 81 15/16"~83 1/4" | |
| Overall Height: (low setting) |
B | 174" |
| Overall Height: (medium setting) | 186" | |
| Overall Height: (high setting) | 198" | |
| Overall Width | C | 150 3/4" |
| Drive-Thru Clearance | D | 109 3/4" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 6 7/8" |
| Gross Weight | 2,423 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 16 Units/20'GP |
Single-point manual safety lock release that simultaneously unlocks both columns from one side
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders.
Automatic arm restraints.
Standard heavy-duty 2-stage arms (P/N of Lifting arm assy. :10217165-03).
Standard includes both heavy-duty single screw rubber pad and saddle adapter.
Standard includes both 3" and 6" extension adapters
Optional heavy duty extreme wide saddle adapter. Kits No. 21109
Optional base extension kits. Kits no. 21501.
Shipping Information
2 units/package, packing measurement (LxWxH) : 113 3/4" x 21 1/4" x 80 3/4" (Packed with power unit)
Attention to forklift loading and unloading
