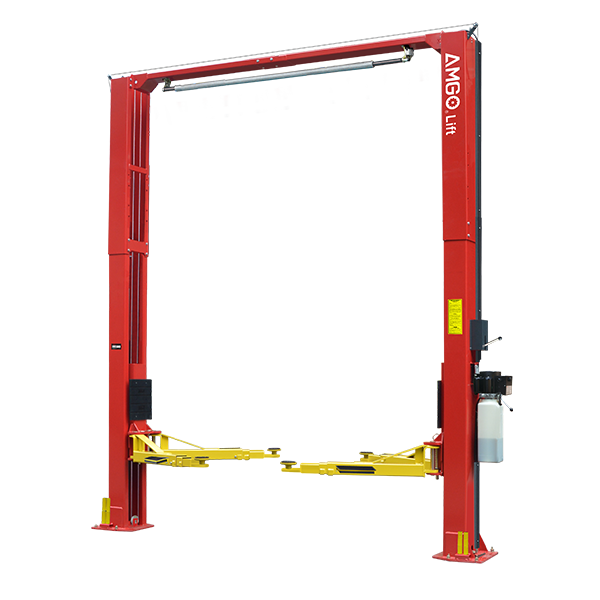

AMGO OH-12S 12,000 lb 2-Post Heavy Duty Overhead Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
The innovative heavy-duty OH-12S is engineered specifically for service centers with restricted ceiling heights. It maximizes your shop’s full potential, offering three standard height settings. Delivering unrivaled flexibility without sacrificing performance, the OH-12S ensures a seamless, space-saving operation.
Features
- Lifting capacity: 12,000 lbs;
- High quality dual hydraulic direct-drive cylinders;
- 4 three-stage arms provide the flexibility to lift vehicles from short to long wheelbases;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- The clear-floor design provides an unobstructed workspace;
- The overhead safety shut-off device for maximum vehicle protection;
- Exclusive: adjustable three height setting accommodates varying service ceiling heights;
- Self-lubricating UHMW polyethylene sliders;
- Automatic arms restraint;
- Standard areo sync cables;
- Detachable toe guard and tool tray come standard;
- Heavy-duty singe-screw rubber pad ( pin dia 2” ) with both 3” and 6” extension adapters.

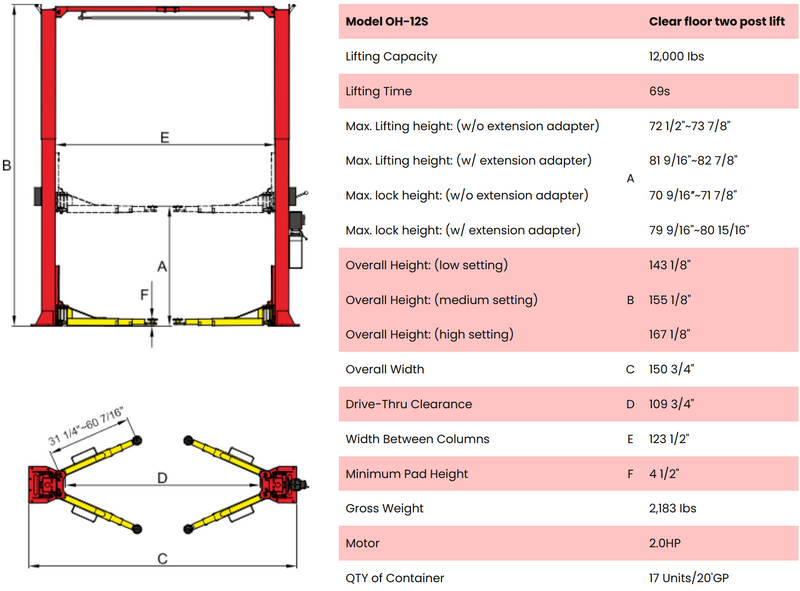

Specifications
| Model OH-12S | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 69s | |
| Max. Lifting height: (w/o extension adapter) | A | 72 1/2"~73 7/8" |
| Max. Lifting height: (w/ extension adapter) | 81 9/16"~82 7/8" | |
| Max. lock height: (w/o extension adapter) | 70 9/16″~71 7/8" | |
| Max. lock height: (w/ extension adapter) | 79 9/16"~80 15/16" | |
| Overall Height: (low setting) | B | 143 1/8" |
| Overall Height: (medium setting) | 155 1/8" | |
| Overall Height: (high setting) | 167 1/8" | |
| Overall Width | C | 150 3/4" |
| Drive-Thru Clearance | D | 109 3/4" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 4 1/2" |
| Gross Weight | 2,183 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 17 Units/20'GP |
Single-point manual safety lock release that simultaneously unlocks both columns from one side.
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders.
Automatic arm restraints.
Standard heavy-duty 3-stage arms (P/N of Lifting arm assy. :10212303001C)
Standard heavy-duty single screw rubber pad.
Both 3" and 6" extension adapters come as standard.
Optional saddle adapter. Kits No.: 21108
Optional heavy duty extreme wide saddle adapter. Kits No. 21109
Optional base plate extension. Kits No.: 21501
Shipping Information
3 units/package, packing measurement (LxWxH) : 113 1/4" x 21 1/4" x 89" (Packed with power unit)
Attention to forklift loading and unloading
