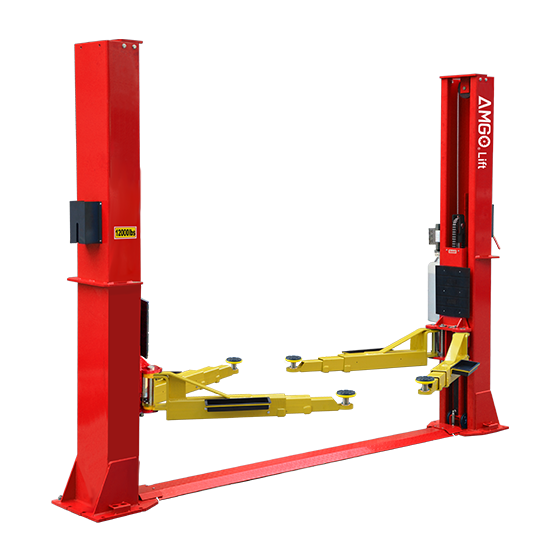

AMGO BP-12 12,000 lb 2-Post Baseplate Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
With a massive 12,000lb lifting capacity, the BP-12 is your best choice for heavy-duty lifting. It features durable 3-stage retractable arms and two width settings. Whether you’re working on a compact car, or full sized truck with wider or taller rigs, this lift delivers the versatility and strength you need.
Tough, adjustable, and ready for anything.
Features
- Lifting capacity: 12,000 lbs;
- Sturdy three-stage retractable arms that works for various vehicles;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- Base plate design that can accommodate various vehicles;
- Exclusive: Two width settings for installation: width between columns 118 1/8″ and 123 1/2″;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come standard;
- Comes with detachable toe guard and tool tray;
- Heavy-duty single-screw rubber pad and saddle adapter come standard;
- 3″ and 6″ extension adapters come standard.

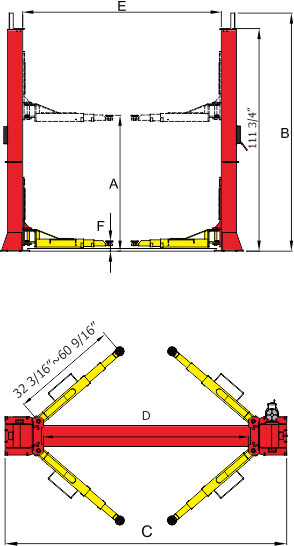

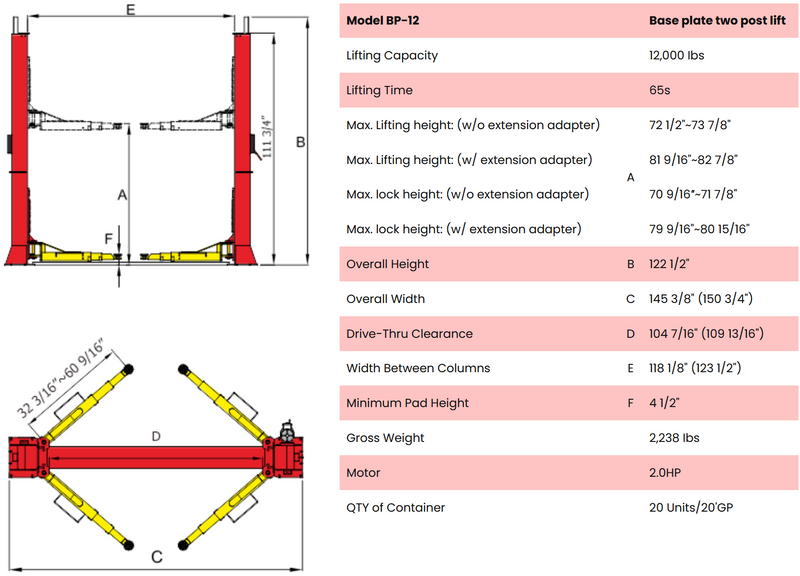

Specifications
| Model BP-12 | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 65s | |
| Max. Lifting height: (w/o extension adapter) | A | 72 1/2"~73 7/8" |
| Max. Lifting height: (w/ extension adapter) | 81 9/16"~82 7/8" | |
| Max. lock height: (w/o extension adapter) | 70 9/16″~71 7/8" | |
| Max. lock height: (w/ extension adapter) | 79 9/16"~80 15/16" | |
| Overall Height | B | 122 1/2" |
| Overall Width | C | 145 3/8" (150 3/4") |
| Drive-Thru Clearance | D | 104 7/16" (109 13/16") |
| Width Between Columns | E | 118 1/8" (123 1/2") |
| Minimum Pad Height | F | 4 1/2" |
| Gross Weight | 2,238 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 20 Units/20'GP |
Single-point manual safety lock release that simultaneously unlocks both columns from one side
Two installation widths available to choose from.
Four 3-stage retractable arms fit more vehicles. Toe guards and tool trays come standard.
The pulley with self-lubricating bronze bush, no need additional lubrication, virtually maintenance-free.
Heavy duty single-screw rubber pads and saddle adapters come standard.
3" and 6" extension adapters come standard.
Optional heavy duty extreme wide saddle adapter. Kits No. 21109
Optional base plate extention. Kits no.: 21501
Optional Extremely long 3-stage arms . Kits no.: 10207063-02
Shipping Information
2 units/package, packing measurement (LxWxH) : 114 15/16" x 22 7/16" x 74 13/16" (Packed with power unit)
Attention to forklift loading and unloading
