AMGO BP-10 10,000 lb 2-Post Baseplate Lift
Authorized Dealer
We are an authorized dealer for all AMGO branded products.
Description
AMGO BP series lifts are stronger and easier to operate than any other lift in the world, with the BP-10 as the best representative. This is an exceptional model that features a 10,000lbs capacity and two widths setting, capable to lift most cars from compact cars to long wheelbases and heavy cars. The BP-10 is built to AMGO’s highest standards, utilizing advanced technology for maximum safety, long-term durability, and reliable performance.
Features
- Lifting capacity: 10,000 lbs;
- Two installation widths that fit various vehicles;
- Commercial grade with an strong structure, designed for professional workshops and home garages;
- Symmetric four 3-stage retractable arms that fit more vehicles;
- Automatic arms restraint;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- Dual-safety lock structure guarantees more security;
- Self-lubricating UHMW polyethylene sliders;
- Aero sync cables come standard;
- Toe guards and tool trays come standard;
- Standard double-screw rubber pad ( pin dia 2″ ) with 3″ extension adapters.

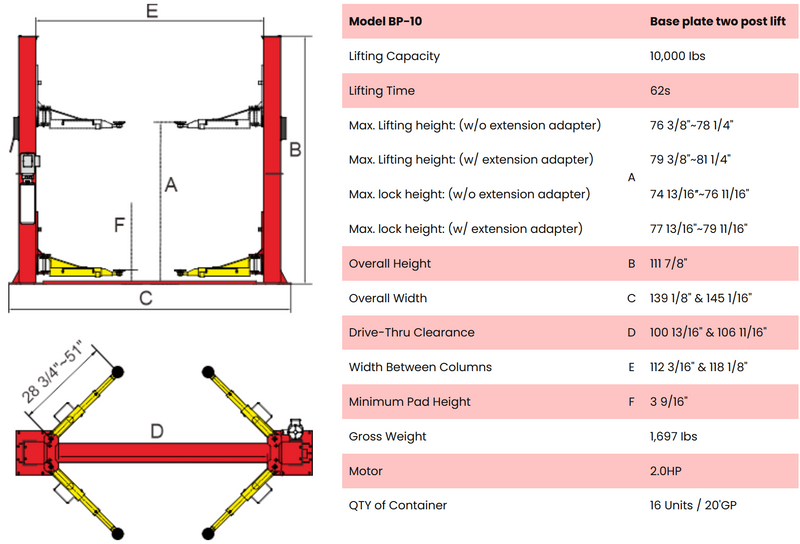

Specifications
| Model BP-10 | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 62s | |
| Max. Lifting height: (w/o extension adapter) | A | 76 3/8"~78 1/4" |
| Max. Lifting height: (w/ extension adapter) | 79 3/8"~81 1/4" | |
| Max. lock height: (w/o extension adapter) | 74 13/16″~76 11/16" | |
| Max. lock height: (w/ extension adapter) | 77 13/16"~79 11/16" | |
| Overall Height | B | 111 7/8" |
| Overall Width | C | 139 1/8" & 145 1/16" |
| Drive-Thru Clearance | D | 100 13/16" & 106 11/16" |
| Width Between Columns | E | 112 3/16" & 118 1/8" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,697 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 16 Units / 20'GP |
Single-point manual safety lock release that simultaneously unlocks both columns from one side.
ETL certified AMGO power unit.
Symmetric 3-stage retractable arms are suitable for more vehicles. Toe guards and tool trays come standard
Two installation widths available to choose (Distance between columns: 112 3/16", 118 1/8").
AMGO's exclusive dual safety lock structure.
Double-screw rubber pad with pin dia. 2", comes with 3" extension adapter.
Optional saddle adapter. Kits No.: 21108
Optional 6" extension adapter. P/N: 1102504001-01
Optional base plate extention. Kits no.: 20903
Shipping Information
2 units/package, packing measurement (LxWxH) : 114 1/8" x 20 1/8" x 71" (Packed with power unit)
Attention to forklift loading and unloading
