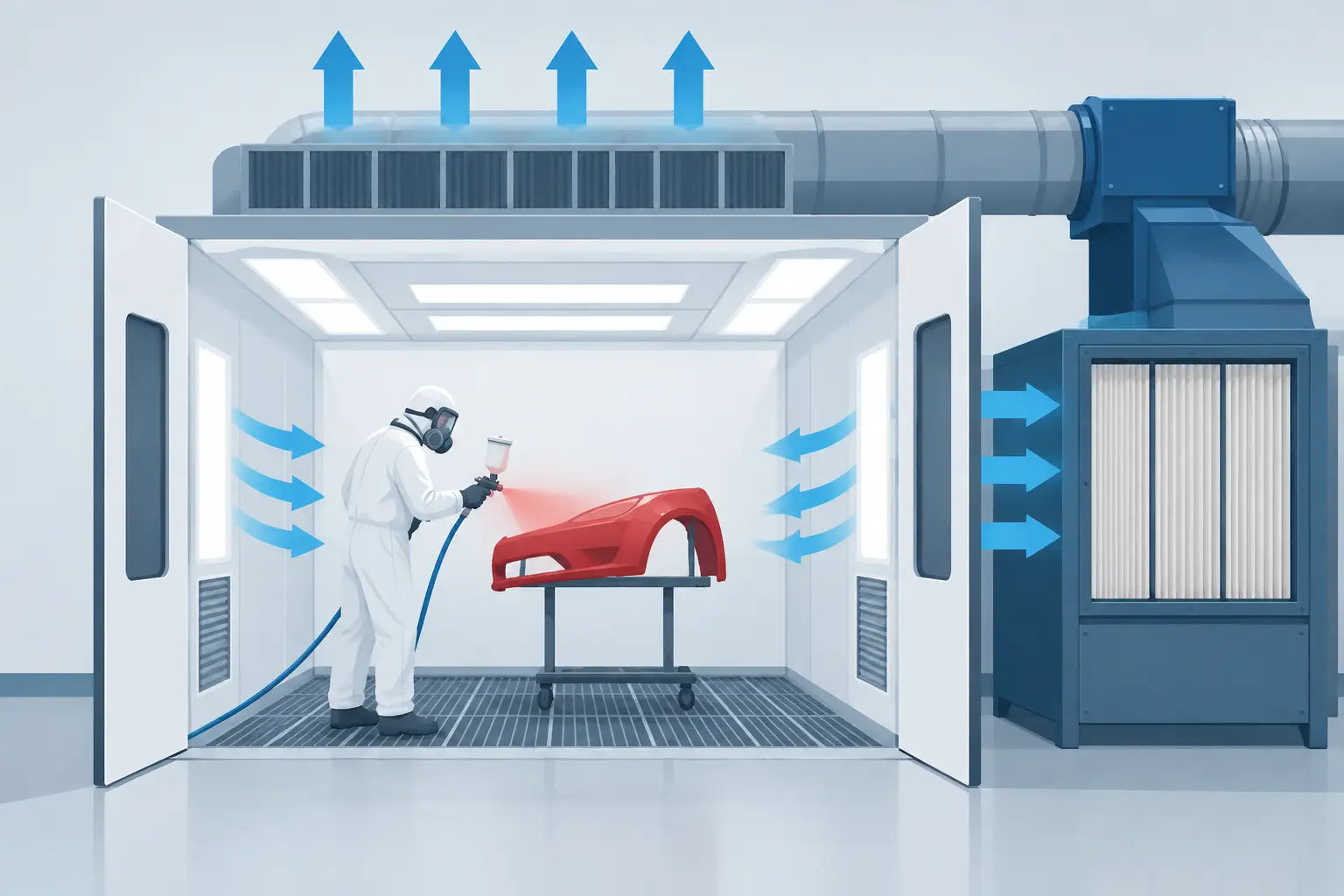

How to Ventilate a Paint Booth for Safe Spraying

A paint booth can look clean, professional, and ready for work, yet still be unsafe if it cannot move air the way it should. Overspray hanging in the booth, solvent odor drifting into the shop, dust landing in fresh clear coat, and slow dry times are all warning signs. Knowing how to ventilate a paint booth starts with treating ventilation as part of the booth system, not as an add-on fan at the end of the job.

For body shops and serious home garage builders, the goal is straightforward: bring in clean replacement air, pull contaminated air through the work area in a controlled direction, filter it, and discharge it safely. The right setup protects people, improves finish quality, and helps keep the rest of the facility cleaner.

Start With Airflow Direction, Not Fan Size

Before selecting an exhaust fan, decide how air should travel through the booth. The best airflow pattern depends on the booth design, the parts being painted, available building space, and local code requirements.

A crossdraft booth pulls air from filtered doors or intake panels at one end and exhausts it through the opposite end. This is a common, practical arrangement for many smaller automotive booths. It can be cost-effective and easy to understand, but airflow travels across the vehicle and can pass overspray through the painter's work zone.

A semi-downdraft booth brings filtered air in through the front portion of the ceiling and pulls it toward exhaust filtration at the rear of the booth. This gives better control around the vehicle than a basic crossdraft layout, especially when painting panels and complete vehicles.

A full downdraft booth supplies air through the ceiling and pulls it down through a pit or raised-floor exhaust system. It offers excellent finish control because overspray moves away from the painter and vehicle surfaces. It also requires more planning, more building work, and typically a larger budget. For a production body shop, that investment can make sense. For a smaller operation, a well-designed crossdraft or semi-downdraft booth may be the better value.

No matter the style, air should move smoothly from the clean-air side to the exhaust side. Dead spots, turbulence, and air leaks are problems because they allow vapors and overspray to linger.

Calculate Air Volume for the Booth

Ventilation is usually sized by airflow volume, measured in cubic feet per minute, or CFM. The booth's interior volume is the starting point. Multiply its length by width by height to find cubic feet. A 30-foot-long, 14-foot-wide booth with a 10-foot ceiling contains 4,200 cubic feet of air.

That number alone does not tell you what fan to buy. Required airflow also depends on the desired air velocity across the booth opening or work area, the type of spraying being performed, filter resistance, duct length, bends, discharge arrangement, and the applicable fire and mechanical codes.

This is where guessing gets expensive. An undersized system will leave haze and fumes in the booth, restrict visibility, and shorten filter life. An oversized system can create excessive turbulence, pull dirt through openings, waste energy, and make it difficult to maintain proper temperature. The fan must also hold its performance as intake and exhaust filters load with paint residue.

Use the booth manufacturer's specifications whenever they are available. For a custom booth or a major upgrade, have a qualified ventilation professional calculate airflow, static pressure, duct sizing, and makeup-air requirements. Local permitting authorities and your fire marshal may also have specific requirements for paint spray operations.

Use a Rated Exhaust Fan and Proper Ductwork

A standard shop fan is not a paint booth exhaust system. Paint products can produce flammable vapors, and spraying creates combustible overspray. The exhaust equipment must be appropriate for the hazard and installed according to the fan manufacturer's instructions and local code.

For many spray applications, that means a properly rated exhaust fan with the motor kept out of the contaminated airstream or an approved hazardous-location motor and electrical setup where required. The exact equipment depends on the coating materials, booth design, and local rules. Do not put a household box fan, open-motor fan, or improvised blower in the exhaust path.

Ductwork matters just as much as the fan. Keep duct runs as short and straight as the building allows. Every sharp elbow, restriction, and unnecessary transition adds resistance that reduces real airflow. Use smooth metal ductwork sized for the system design, support it correctly, and seal joints as required. Avoid discharging paint-laden air near doors, windows, HVAC intakes, neighboring buildings, or areas where people work.

The discharge point should be planned before booth installation, not after the booth is already in place. A good booth location makes safe duct routing possible and leaves room for filter access, fan service, and fire-safety clearances.

Bring in Enough Makeup Air

Every cubic foot exhausted from the booth has to be replaced. Without enough makeup air, the booth pulls air through cracks, open doors, and other uncontrolled paths. That creates negative pressure, poor finish quality, difficult door operation, and dust problems. It can also interfere with other fuel-burning equipment in the building.

Clean makeup air should enter from the intake side of the booth through proper filtration. In colder parts of the country, the incoming air may need heating. In warm or humid conditions, temperature and humidity control may be necessary for consistent paint application and curing. The right answer depends on the products you spray and the climate where the shop operates.

Do not rely on opening a nearby overhead door for replacement air. It may seem to solve the pressure issue, but it brings in dust, insects, moisture, and weather swings. It also makes airflow unpredictable. A controlled intake system costs more up front, but it helps protect expensive paintwork and makes the booth easier to use day after day.

Filter Both the Intake and Exhaust Air

Intake filters protect the job. They remove airborne dust and debris before fresh air enters the booth. Use filters designed for spray booth intake service, install them without gaps, and replace them before they become dirty enough to choke airflow.

Exhaust filters capture overspray before it reaches the fan and discharge duct. They are not permanent. As filters load up, static pressure rises and airflow falls. A booth can appear to be running normally while actual ventilation has dropped below a safe or effective level.

Build filter checks into the shop routine. Inspect intake and exhaust filters regularly, and replace them based on pressure readings, manufacturer guidance, paint volume, and visible loading. Keep records if your operation is subject to inspections or insurance requirements.

For shops doing steady production work, a differential pressure gauge is a worthwhile addition. It gives the operator a real indication of filter condition instead of relying only on appearance. That helps prevent a clogged exhaust bank from becoming a finish-quality problem or a safety issue.

Control Ignition Sources and Electrical Equipment

Ventilation reduces vapor concentration, but it does not make poor electrical practices safe. Spray booths need careful attention to lights, switches, wiring, heaters, and other potential ignition sources. Equipment installed in or near the spray area must meet the applicable classification and code requirements.

Keep welding, grinding, cutting, and open-flame work away from the booth and its exhaust path. Do not use unapproved portable heaters to warm a booth. Make sure the booth is properly grounded and that any interlocks work as intended. Many systems are designed so spraying cannot begin unless the exhaust fan is operating.

A fire suppression system may be required based on the booth, coatings, occupancy, and local jurisdiction. Your local fire official and the booth supplier can help identify what applies to your installation. This is not a place to cut corners. A lower purchase price means nothing if the system creates an unsafe shop.

Test the Booth Before Spraying

Once the system is installed, test it under real operating conditions. Check that the booth doors close properly, air moves in the intended direction, and no visible haze hangs in corners. Confirm that the fan starts before spraying begins and that the booth does not pull excessive air from adjacent work areas.

A qualified technician can measure airflow and static pressure to verify the system is performing as designed. Repeat those checks after changes such as new ductwork, a different fan, added filters, or a switch to a coating system with different ventilation needs.

Your painters should also use the required personal protective equipment. A ventilated booth is not a substitute for the respirator, eye protection, gloves, and protective clothing specified for the products being sprayed. Read the coating manufacturer's safety data and follow it every time.

A paint booth earns its keep when it helps produce clean work without putting people or the building at risk. Plan the airflow before buying equipment, leave room for makeup air and service access, and get qualified help with code-sensitive details. If you are selecting a booth for a new shop or upgrading an existing spray area, Wholesale Lifts can help you talk through practical equipment options before freight arrives.
