Olympic 4PXLA-10
“The Dually” 10,000lb Alignment Lift
(Free Shipping)
$9,400
$7,737
Features / Specs

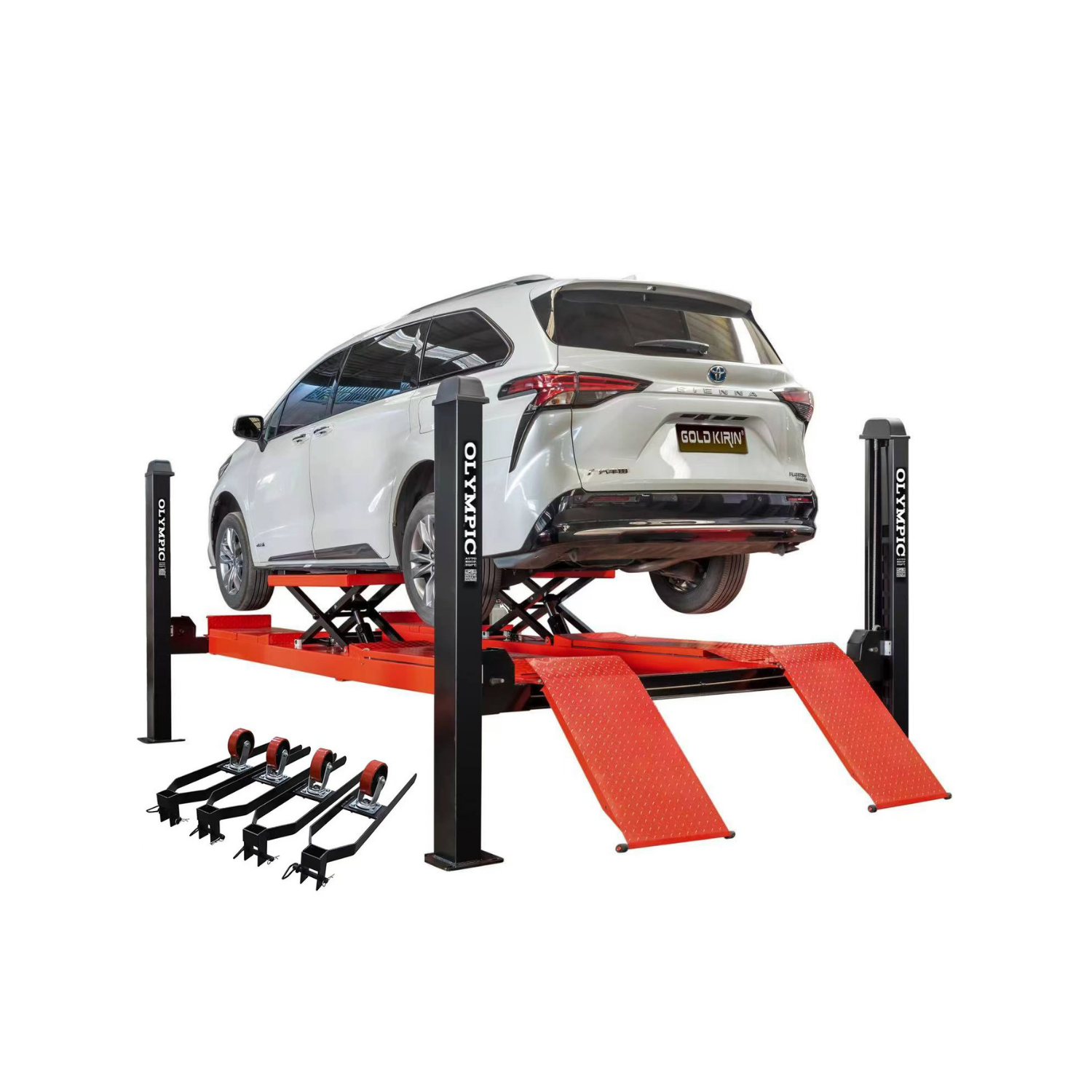

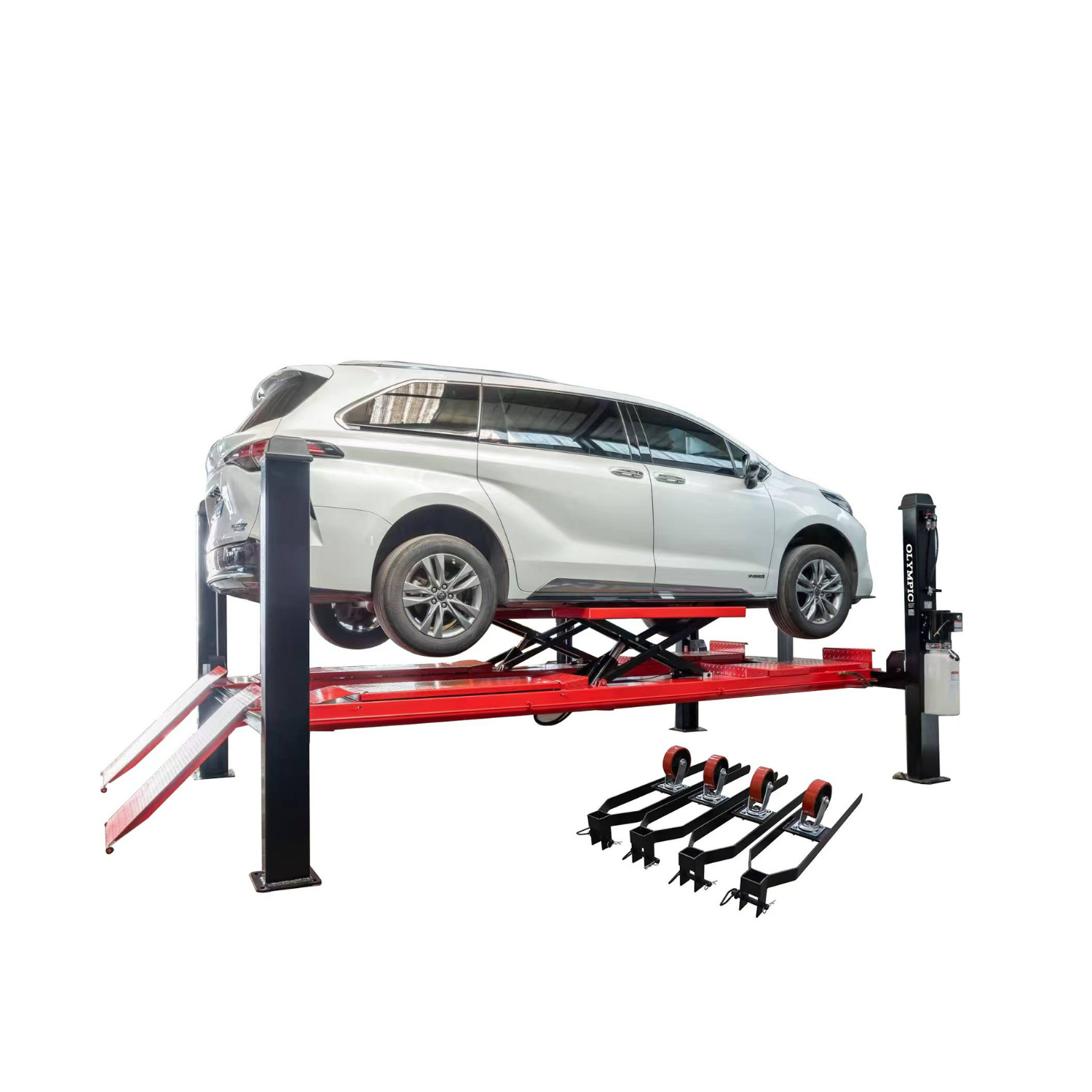

Olympic 4PXLA-10 / “The Dually” Portable Scissor Jack Alignment Lift
THE ONLY 4-POST ALIGNMENT LIFT WITH BUILT-IN SCISSOR JACKS!
The 4PXLA-10 “Dually” is the Swiss-Army Knife of alignment lifts — designed specifically to accommodate dual-wheel trucks, service vehicles, and super-wide cars. Perfect for service, storage, maintenance, brake and wheel work, and four-wheel alignment.
Our exclusive built-in scissor jack design eliminates the need for bulky bridge jacks. Lift vehicles directly off the runways without repositioning equipment — saving time, space, and labor.
Capacity: 10,000 lbs. Drive-Through Width: 112″ Maximum Clearance Under Runways: 84.89″ Width Between Posts: 125″
Key Features
- Industry-Best 10-Year Warranty
- High-quality Q235 structural steel construction
- Designed for dual-wheel long-bed trucks & service vehicles
- Portable drive-through configuration
- 112″ drive-through width
- 125″ between posts
- Adjustable runway width (64.96″ – 71.65″)
- 19 locking ladder positions
- Durable powder-coated finish

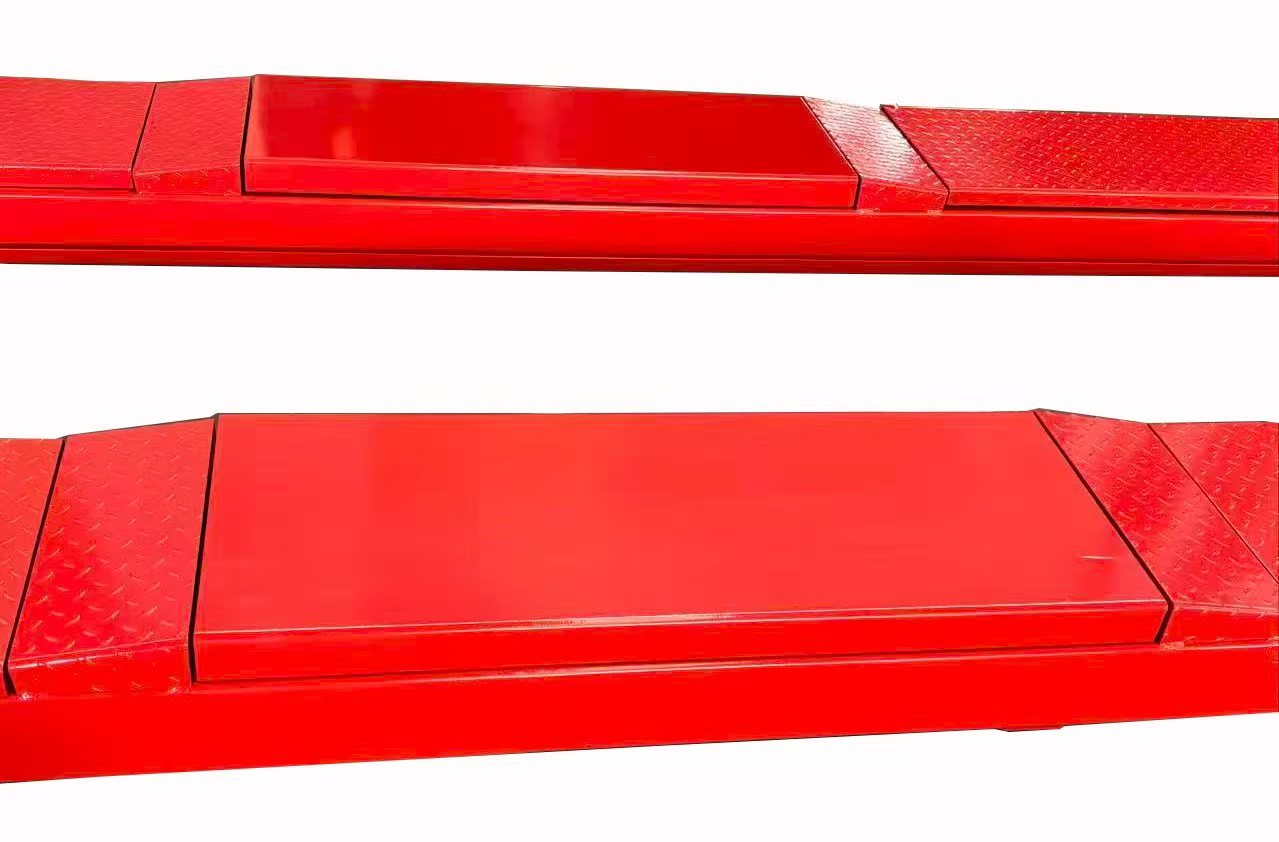

- Includes turntables and slip plates

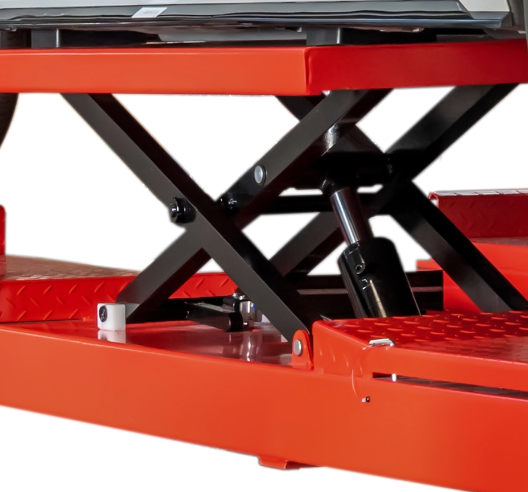

- Includes 6,500 lb. capacity scissor jacks built into runways
- Includes portability package (caster kit)
- Includes removable approach ramps
- Includes removable wheel stops
- 110V 2.2KW power unit included
- Optional 220V 3KW or 4KW power unit available
- Certified & tested at 150% of rated capacity

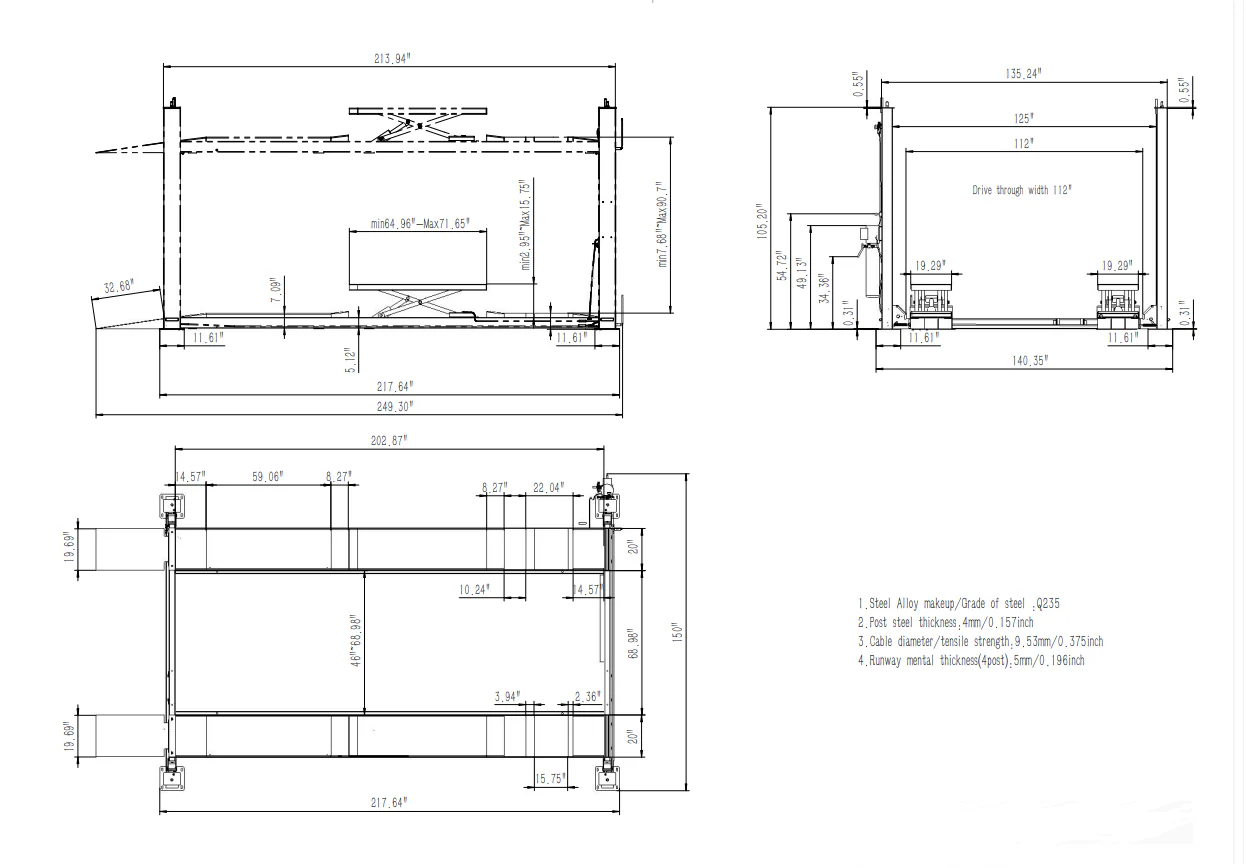

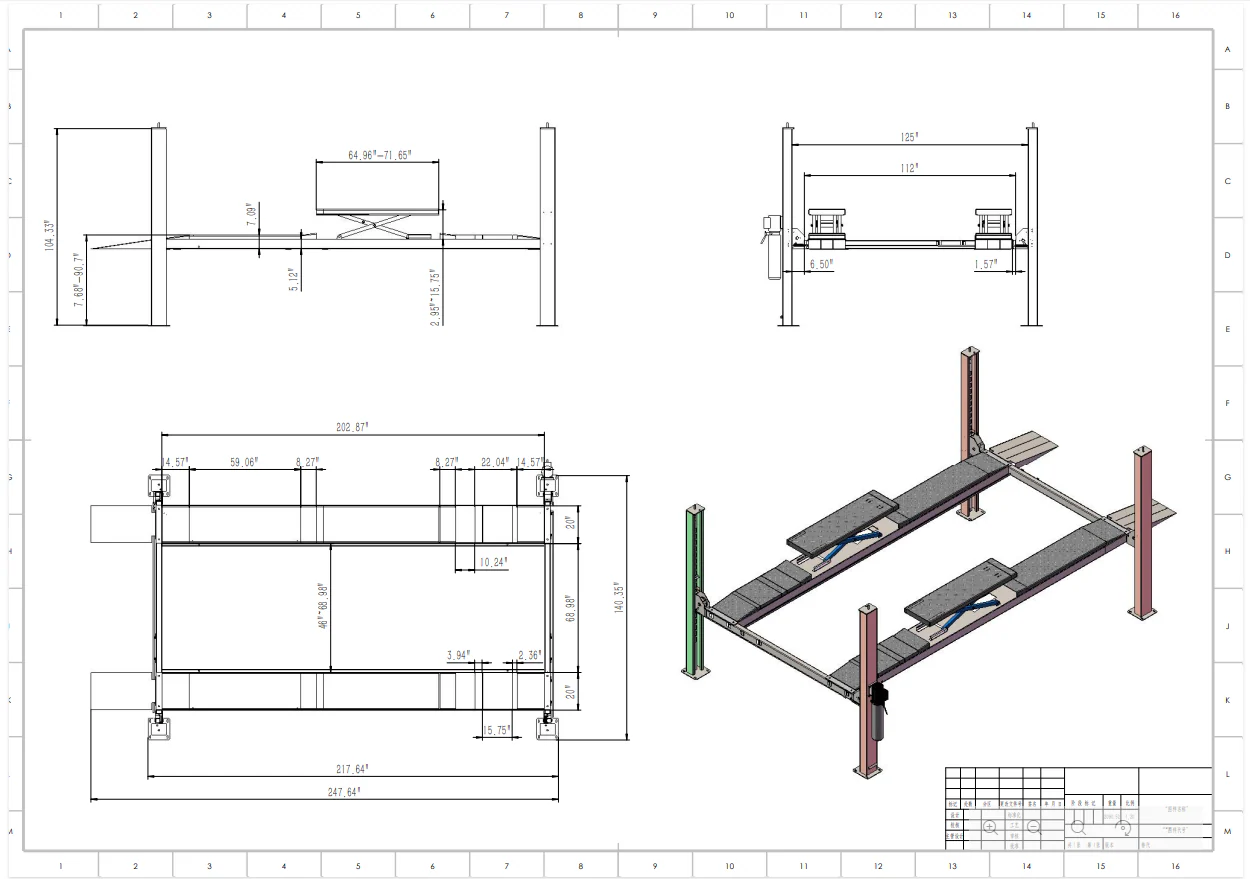

Specifications
| Style | 4-Post Dually Alignment Lift with Built-In Scissor Jacks |
|---|---|
| Capacity | 10,000 lbs. |
| Overall Length (Including Ramps) | 249.30″ |
| Overall Platform Length | 217.64″ |
| Overall Width | 140.35″ |
| Overall Height | 105.20″ |
| Drive-Through Width | 112″ |
| Width Between Posts | 125″ |
| Lifting Range | 7.68″ – 90.71″ |
| Maximum Clearance Under Runways | 84.89″ |
| Runway Width (Adjustable) | 64.96″ – 71.65″ |
| Width Between Tracks | 46″ |
| Runway Metal Thickness | 5mm (0.196″) |
| Post Steel Thickness | 4mm (0.157″) |
| Cable Diameter | 9.53mm (0.375″) |
| Steel Grade | Q235 |
| Speed of Rise | Approximately 50 seconds |
| Speed of Lowering | Approximately 50 seconds |
| Power Unit | 3HP / 2.2KW (110V standard, 220V optional) |
Why Choose an Olympic Lift?
When you invest in an Olympic lift, you’re investing in performance, durability, and long-term reliability. Built with premium materials, engineered for safety, and certified to perform at 150% of rated capacity — this may be the last lift you ever need to buy.
Backed by our Industry-Leading 10-Year Warranty.
ACCESSORIES

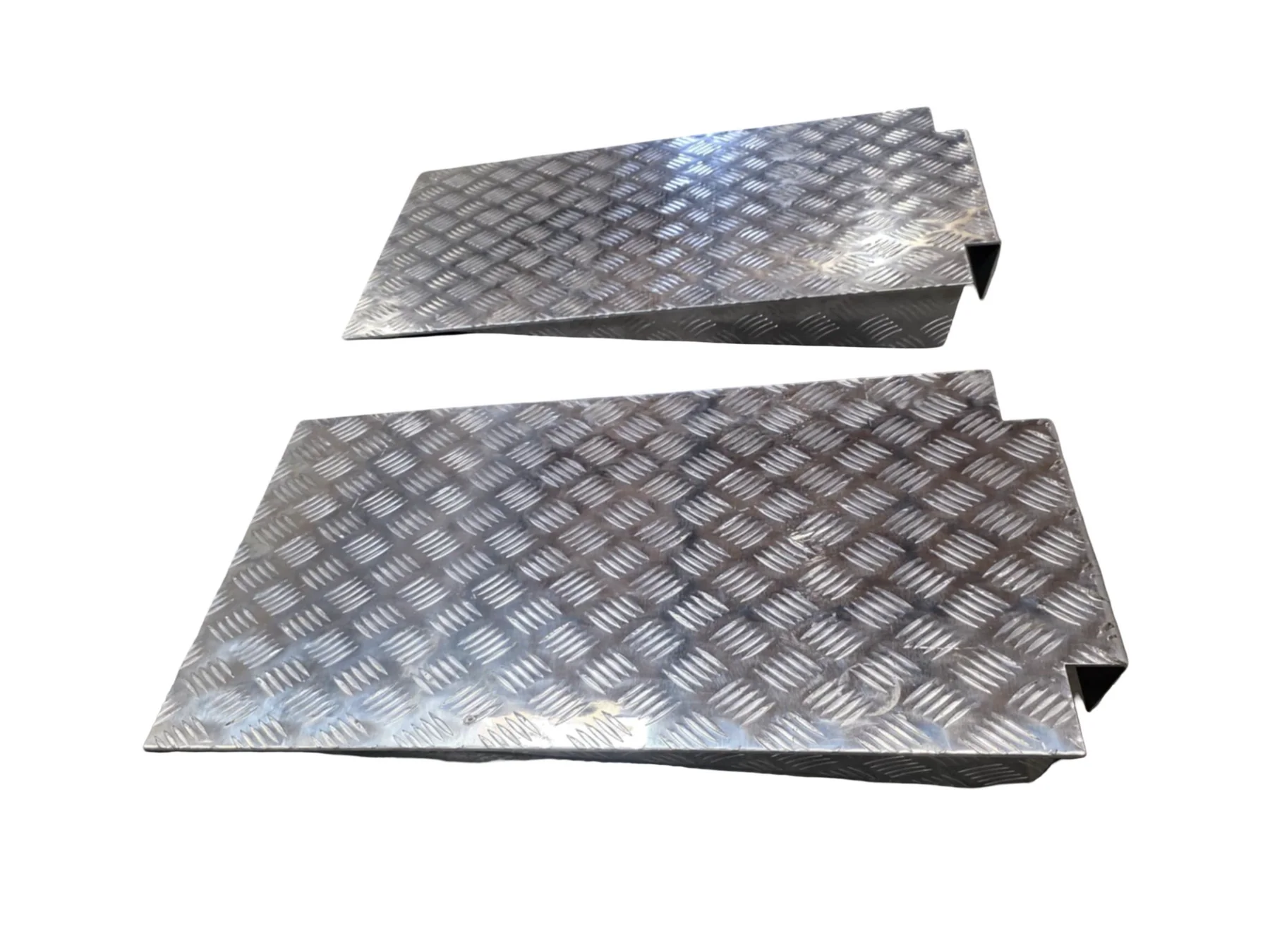

FBAR
$660 – Aluminum Ramps Set

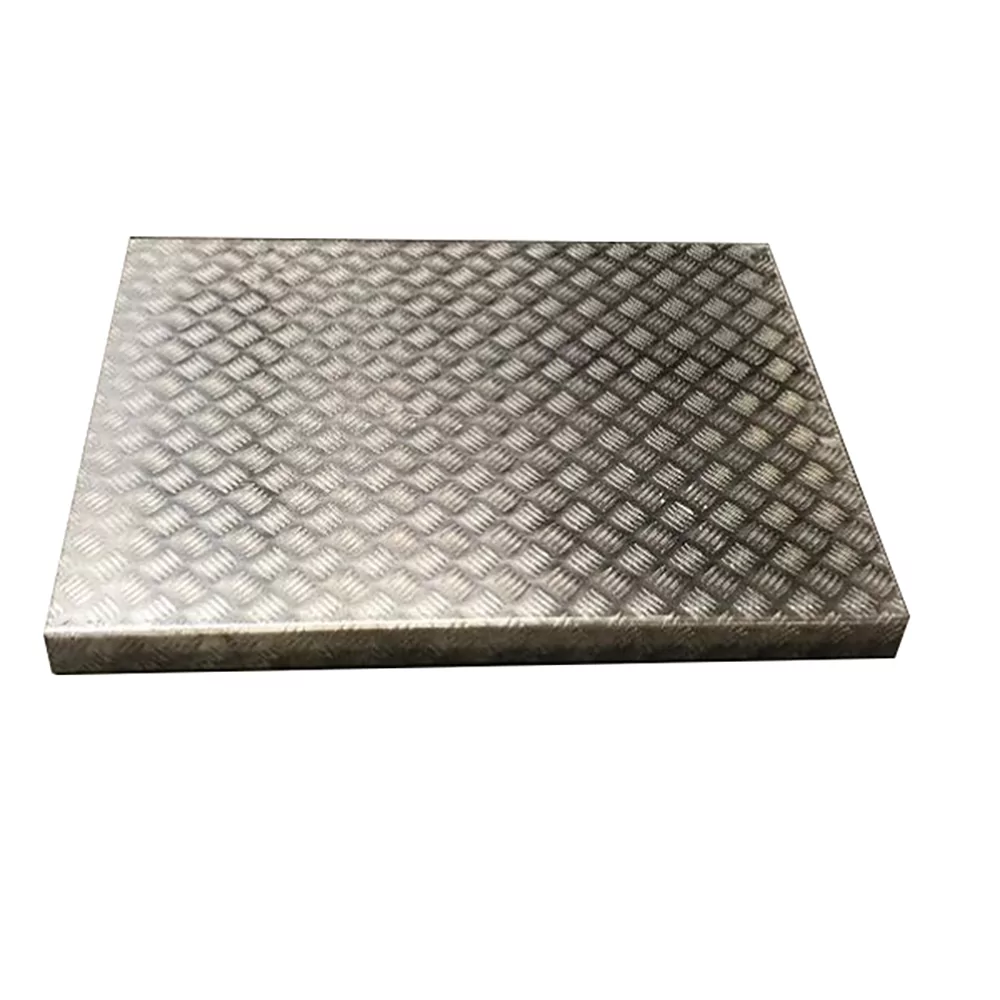

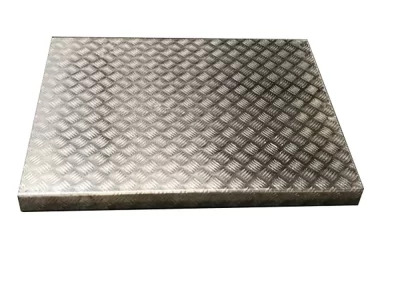

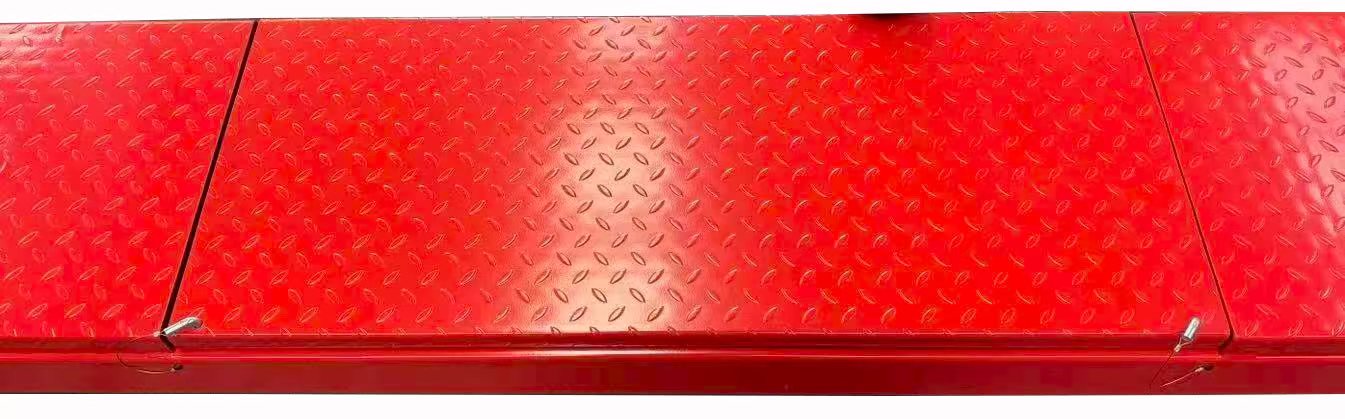

HR-10PLFM
$295/each – Aluminum Platform Panel Inserts 1000lb capacity

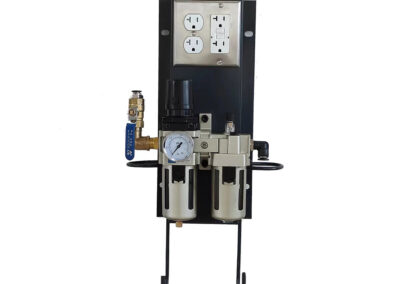

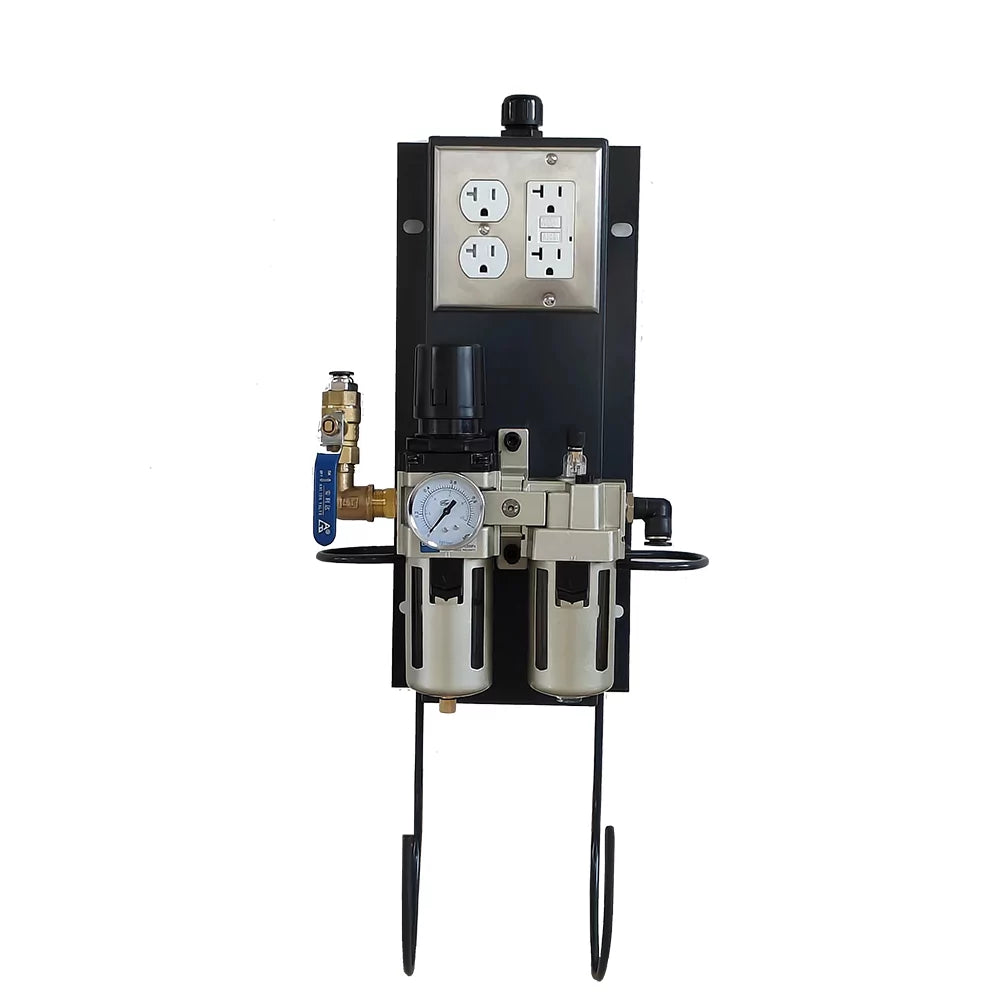

APU
$469 – Air / Power Utility Station Premium Accessory
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
