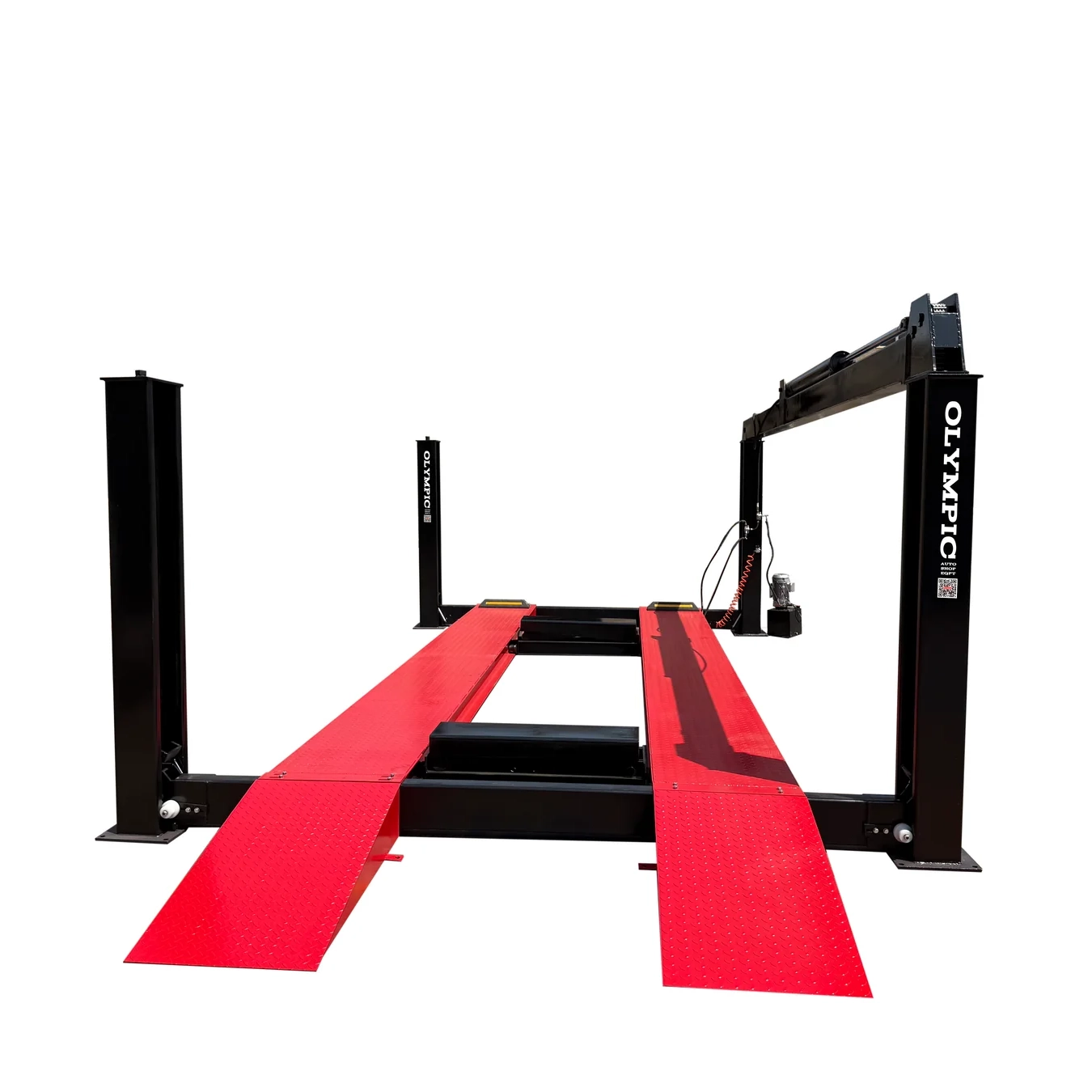

Olympic 4PHDXLA-33
33,000-lb. 4-Post Heavy-Duty Alignment Lift
$48,425
$27,739
Features / Specs
"THe Big-Rig 33,000 lb. Alignment Lift"
Heavy-Duty Commercial-Grade Alignment lift for Trucks, Heavy Equipment and Cars.
"The Big-Rig" 33,000 Lbs. Capacity Alignment Lift designed for maximum durability, strength and performance. Perfect for servicing and aligning large trucks, dump trucks, and semi-tractors, yet versatile enough to accommodate light-duty vehicles and cars. This lift handles anything you load on it, with precision and stability.
Its advanced design supports a wide range of service operations — inspections, repairs, maintenance, alignment — making it the ultimate shop investment. Includes one 9,000 lb. rolling bridge jack.
Capacity: 33,000 lbs | Overall Height: 94.9″ | Overall Length 312" | Runway Width: 25.6″
Key Features
- Industry Best 10-Year Warranty
- 33,000 lb. load capacity
- High-quality Q235 spec structural steel
- High-quality Q235 spec structural steel
- Includes one 9,000 lb. rolling bridge jack (4PRJ-9)
- Built-in turntables and slip plates for alignments
- Aircraft-quality stainless steel hydraulic cylinders
- Movable runways for versatility
- Slip-resistant extra-long runways (275.6″)
- Heavy-duty galvanized aircraft-grade cables
- Secondary locking system guards against cable failure
- Spring-loaded safety locks engage automatically
- Adjustable ladder locks for precision leveling
- Built-in grease fittings for easy lubrication
- Chain drive prevents over-extension
- Acceptable for outdoor use (protect power unit)
- Includes one 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Optional 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Maintenance-free 380V 3-phase hydraulic power unit
- Certified & tested at 150% of rated capacity
Specifications
| Style | 4-Post Alignment Lift |
|---|---|
| Weight Capacity | 33,000 lbs |
| Overall Lift Length | 289.3″ |
| Overall Width | 152.3″ |
| Overall Height | 94.9″ |
| Minimum Lift Height | 7.88″ |
| Lifting Height | 67″ |
| Runway Width | 27.6″ |
| Runway Length | 275.6″ |
| Runway Height | 7.9″ |
| Width Between Runways | 43.3″ |
| Width Between Posts | 129″ |
| Speed of Rise | 60 seconds |
| Speed of Lowering | 60 seconds |
| Bridge Jack Capacity | 9,000 lbs |
| Voltage | 220/380V, 3KW, 60Hz, 3-phase |
| Amps | 15 / 8.8 |
ACCESSORIES

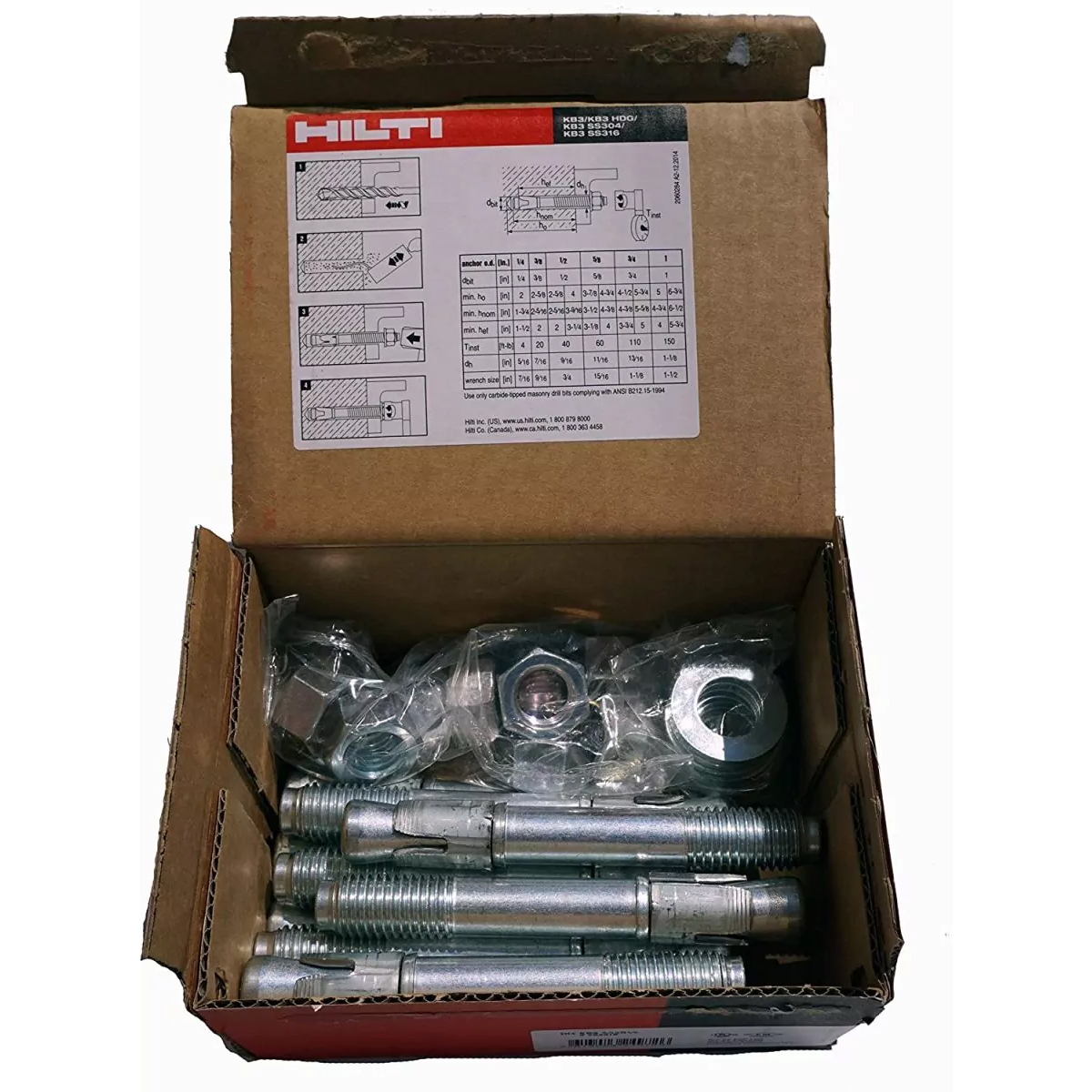

AB-1
$99 – High Quality Anchor Bolts (12 pack)

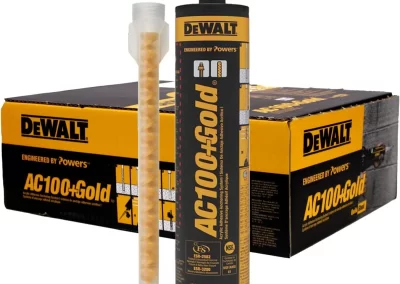

Anchoring Epoxy
$35
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
