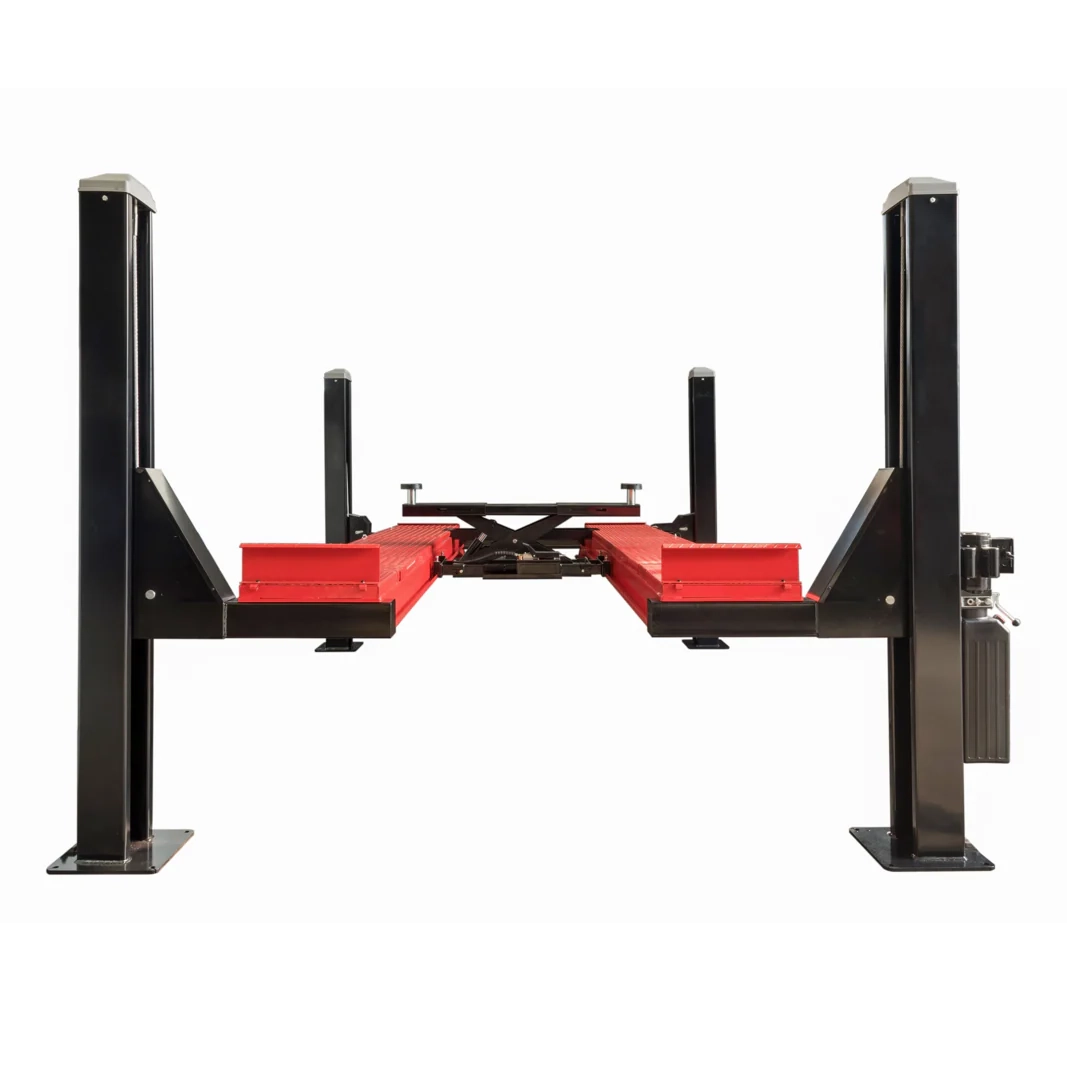

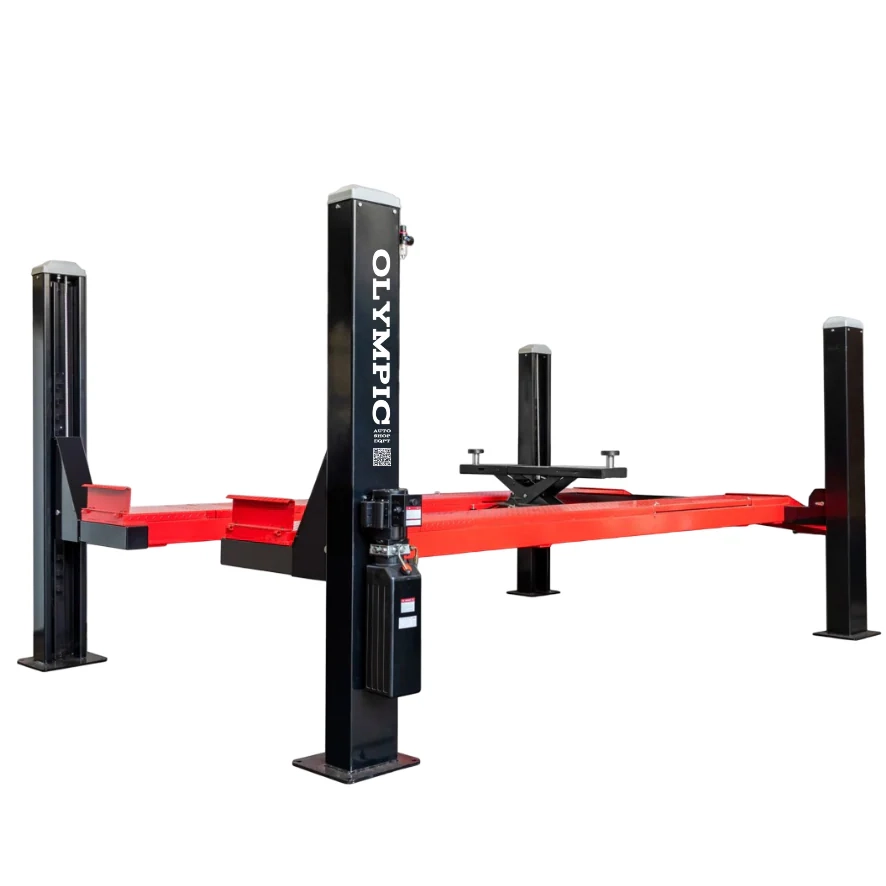

Olympic 4PHDXLA-11 / 11,000 lb. Open Front Alignment Lift

The ultimate open-front alignment and service lift for professionals.
The Olympic Open Front Alignment 11,000 lb. capacity Lift doubles as both a vehicle maintenance lift and an advanced wheel alignment system. Built tough and engineered for performance, it’s the bulletproof backbone your shop needs—especially if you service large trucks. The open-front design improves access, boosts workflow, and enhances technician efficiency.

Heavy-duty slip plates and turntables are integrated directly into the runways, allowing wheels to respond freely to adjustments for smooth, accurate alignments. Longer approach ramps ensure effortless loading and unloading for vehicles of all sizes.

Key Features

• Industry Best 10-Year Warranty
• High-quality Q235 spec structural steel
• Load capacity: 11,000 lbs
• Includes turntables and slip-plates
• Max lift height: 70.9″
• Air lock release system
• 21.6″ runway width
• Cable-driven lifting system
• Adjustable lock system — locks at any height
• Adjustable runway for various tread widths
• Cable anti-failure system for improved safety
• Italian oil seals
• Durable powder-coated finish
• Optional 7,000 lb. Bridge Jack (Part No. YZ-4PHDA-RJ)
• Includes heavy-duty 220V power unit (HPU2204: 4HP, 3KW, 60Hz, 1PH)
• Internationally certified and tested to perform flawlessly at 150% of rated capacity

Operating & Power Requirements

• Power requirement: 220V 60Hz 2.2KW or 3KW 1-phase
• Operating temperature: 5°C to 40°C
• Ambient humidity: 30% to 95% (at 40°C)
• Installation altitude: 5,500 feet/1675m above sea level
• Storage/transport temperature: -25°C to 55°C

Additional Notes

Optional Bridge Jack: 7,000 lbs. (Model 4PHDA-RJ). Each jack features telescoping arms, stackable adapters, and built-in safety locks. A pair allows full-vehicle lift for efficient wheel and brake service.

Comparison: Offers unmatched value versus leading brands such as Hunter — superior quality, features, and price.

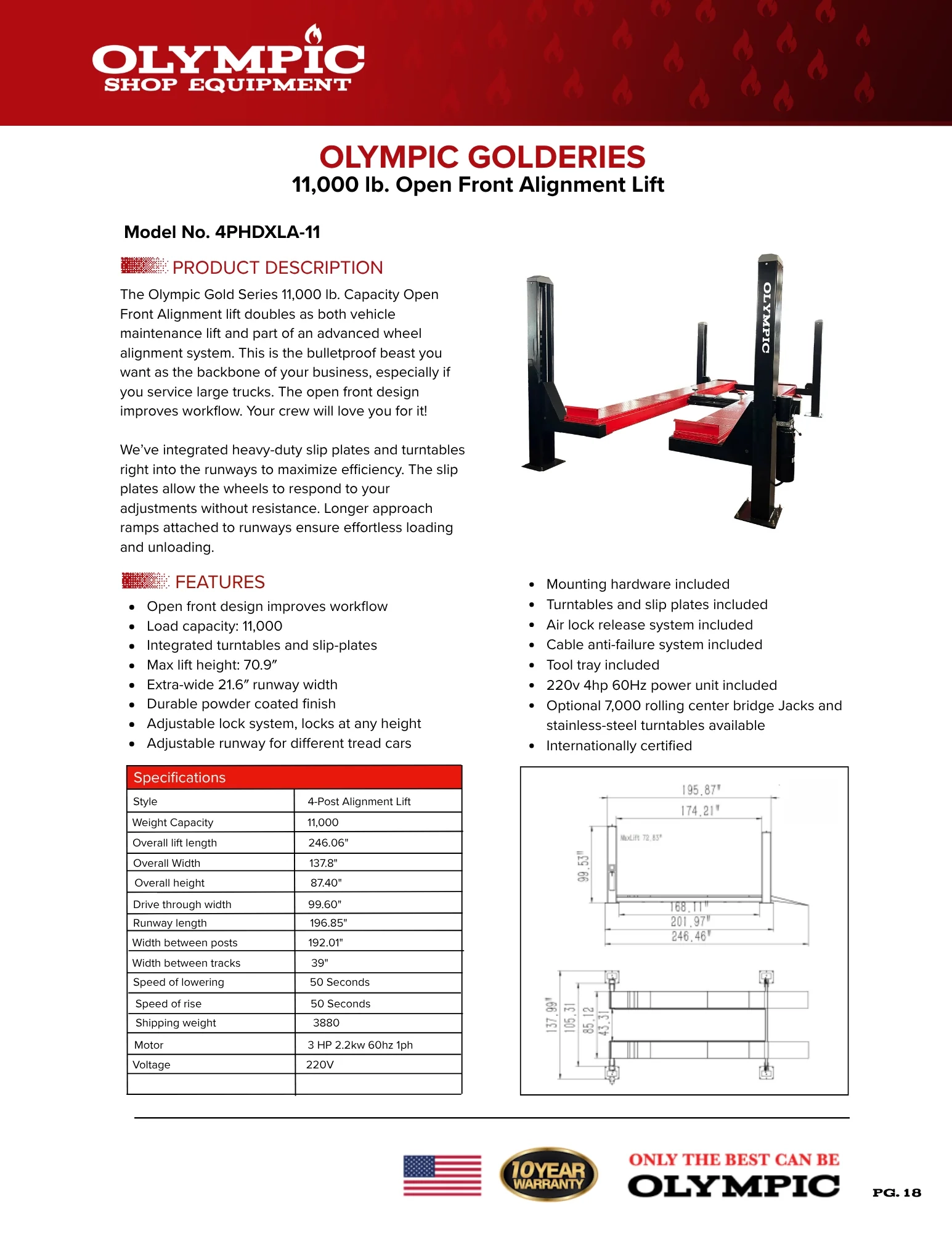

Specifications
