iDEAL Alignment Combo
Wheel Aligner System & 4-Post Alignment Lift Combo With 2 Free Jacks (CK-FP14KACX-IWA-60-2000T-K)IWA-60-2000T-K
FP14KAC-X
RAJ-7K-H
$27,125
$23,750
DESCRIPTION
Experience the pinnacle of wheel alignment technology with the iDEAL 3D iPRO Imaging Wheel Alignment System (IWA-60-2000T-K). The state-of-the-art aligner system is engineered for unparalleled precision, offering 0.01 degrees of alignment accuracy with real-time measurements to enhance your workshop’s productivity. The iDEAL iPRO 3D Wheel Aligner’s portability facilitates versatile applications across multiple bays, while the innovative ‘Wide Scope’ technology doubles the working height range compared to conventional 3D image wheel aligners. The system’s four-point contact, ‘self-centering’ adjustable wheel clamps, and reversible studs, paired with robust magnesium targets, ensure rapid and accurate positioning for a wide array of tire rims, guaranteeing precise and secure wheel mounting. The intuitive software, complete with 3D vehicle chassis models, allows for immediate visualization of wheel alignment angles. The 21.5-inch wide-screen LCD monitor offers clear instructions and the choice of 2D or 3D graphic illustrations, supported by an integrated help system. Elevate your service offerings with the iDEAL iPRO 3D Wheel Aligner Multi-Bay System, the ultimate solution for precision, versatility, and ease of use in alignment technology.
FEATURES
SPECIFICATIONS
DESCRIPTION
The iDEAL FP14KAC-X 14,000 lb. Four Post Commercial Alignment Lift is a high-performance closed front, cable pull vehicle lift designed for Cars, SUVs, Vans & Trucks. The FP14KAC-X Alignment Lift comes standard with full width Rear Slip Plates, Turntables, Roll-Back Spacers & internal Air-Line Kit, while also applying the latest in design & safety features, such as narrow & wide runway mount positions, extended rise height, concealed hydraulic / mechanical cable lift system with slack cable safety devices and durable pulley & shaft design incorporating convenient grease fittings to extended life of the lift. Easy lift operation is provided with single point pneumatic lock release & high-quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KAC-X modular design also provides the flexibility to extend the runways for aligning or servicing longer vehicles! The standard powder coat finish, 20” wide runways, adjustable lock stops for easy runway leveling and optional power unit mount positions complete the package for a premium, high quality alignment lift, all at an unmatched value!
FEATURES
- 14.000 LBS CAPACITY
- HIGH PERFORMANCE COMMERCIAL ALIGNMENT LIFT
- DURABLE, HIGH QUALITY CABLE LIFT SYSTEM
- EXTENDED RISE HEIGHT
- ‘BOLT-ON’ RUNWAY ALIGNMENT KIT
- 166.7″ MAX ALIGNMENT WHEELBASE (2 WHEEL)
- 157″ MAX ALIGNMENT WHEELBASE (4 WHEEL)
- 182.5″ MAX SERVICE WHEELBASE
- 18 LOCKING HEIGHT POSITIONS
- FULL WIDTH REAR WHEEL SLIP PLATES
- TWO TURNTABLE POSITIONS W/ SPACER COVERS
- 20* WIDE RUNWAYS
- NARROW & WIDE RUNWAY MOUNTING POSITIONS
- SINGLE POINT PNEUMATIC LOCK RELEASE
- FULLY ADJUSTABLE LOCK STOPS FOR EASY LEVELING
- SLACK CABLE SAFETY DEVICES
- SELF-CHOCKING APPROACH RAMPS W/ NYLON ROLLERS
- WHEEL CHOCKS (1PR)
- DURABLE POWDER COAT FINISH
SPECIFICATIONS
| Capacity | 14,000 lbs. |
| Overall Length w/Ramp | 252-1/2″ |
| Overall Width (Without Power Unit) | 131-7/8″ |
| Overall Width (With Power Unit) | 142″ |
| Overall Height | 92-1/2″ |
| Max Rise Height | 79-1/2″ |
| Min Height | 9-7/8″ |
| Width Between Posts | 116-1/4″ |
| Length Between Posts | 196″ |
| Width Between Runways | 43″ or 46″ |
| Width of Runways | 20″ |
| Max Wheelbase | 182-1/2″ |
| Max Align Wheelbase (2 Wheel) | 166-3/4″ |
| Min / Max Align Wheelbase (4 Wheel) | 103″ / 157″ |
| Ramp Length | 44″ |
| Max Clearance Under Runway | 69-5/8″ |
| Drive-Thru Clearance | 100″ |
| Base Plate | 10-1/2″ x 9″ |
| Power Requirement | 220V – 20Amp – 1PH |
| Ship Weight | 3,810 lb |
| Min Bay Size | 16′ x 25′ |
DESCRIPTION

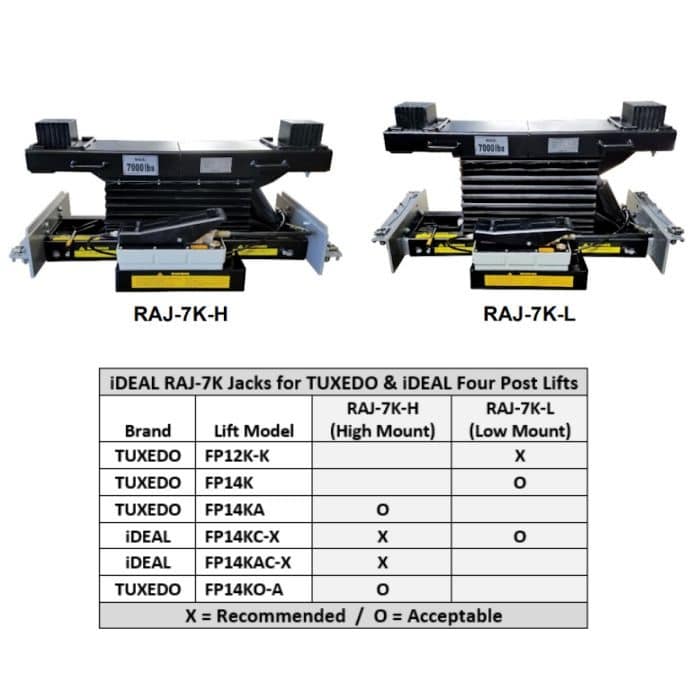

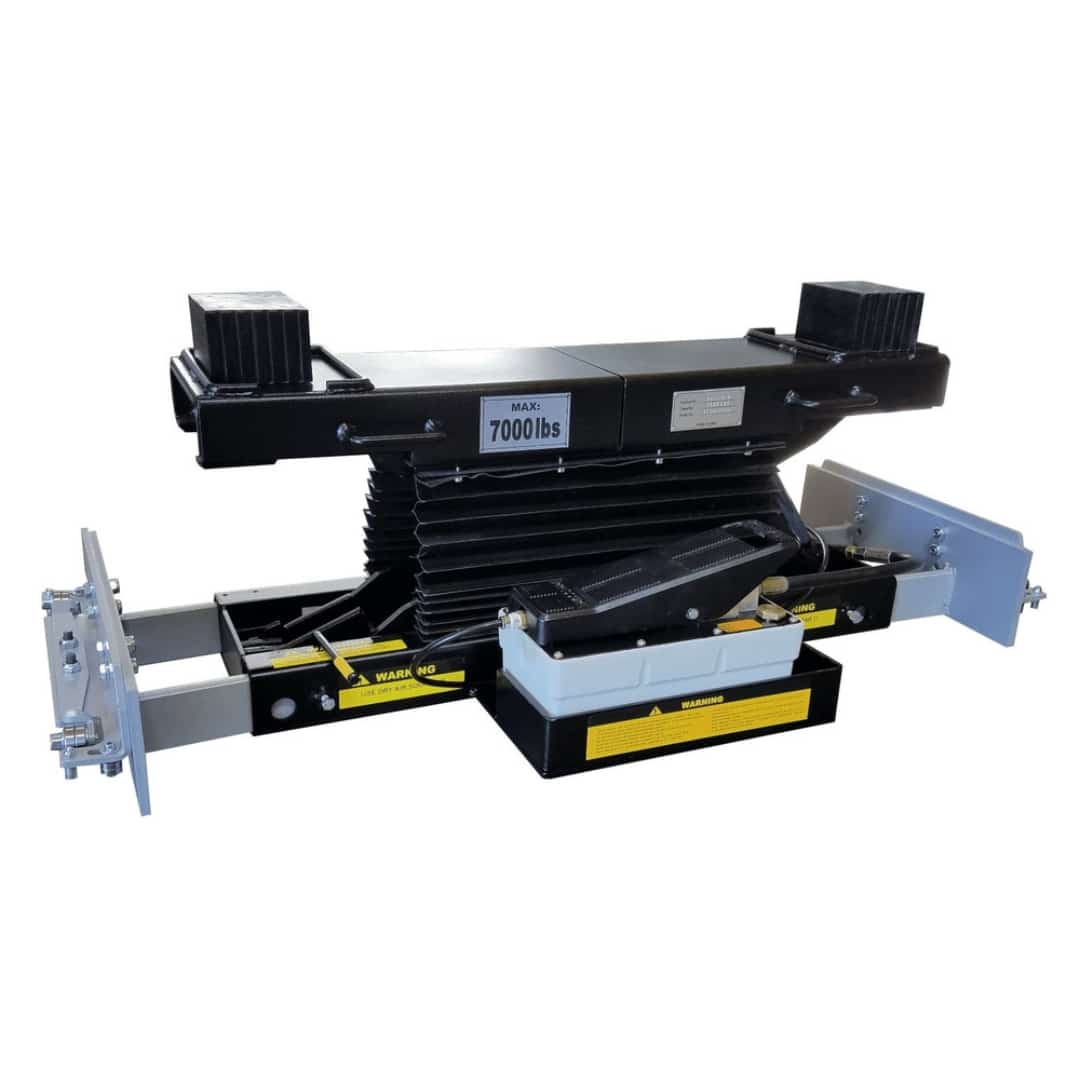

The iDEAL RAJ-7K-H Rolling Bridge Jack is a high quality, automotive frame engaging 7,000 lbs. capacity, pneumatic / hydraulic operated, scissor-style rolling bridge jack, designed to be easily mounted on most four post or scissor lift’s jack rails to expand the lift’s service ability. Designed to lift either the front or rear wheels off the runways to provide ‘wheels free’ service for brake, suspension, tire repairs or general maintenance jobs. The iDEAL RAJ-7K-H Jack model includes ‘exclusive’ universal roller body brackets designed for either ‘High Mount’ or ‘Low Mount’ jack rail configurations for commercial four post or scissor lifts with integrated jack rails between the runways.
The iDEAL RAJ-7K’s exclusive design incorporates ‘spring loaded’ adjustable width & height roller body support brackets, allowing for the best fit to runways, while the dual-precision roller bearing guide wheels ‘track’ on the top edge & side of the jack rails, ensuring for smooth & safe long-term rolling operation. The RAJ-7K Jack also comes standard with a pair of rubber pad adaptors, protective scissor side skirts & high-quality pneumatic / hydraulic pump for premium, commercial grade rolling bridge jacks, all for an unmatched value!

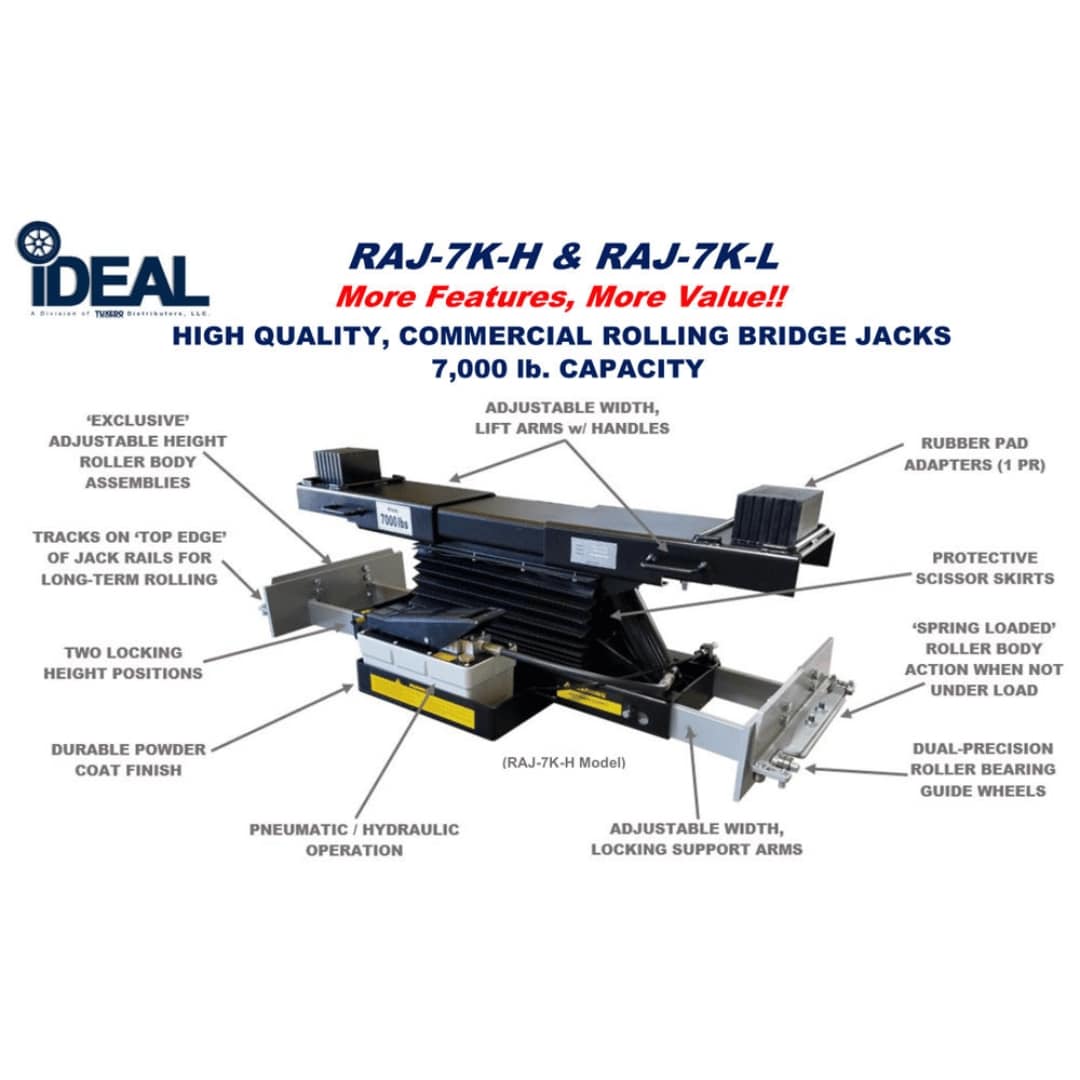

FEATURES
- 7,000 lbs. Capacity
- High Quality, Commercial Grade
- High Mount Design for Low Position Jack Rails
- Adjustable Height Roller Body Assemblies
- Tracks on ‘TOP Edge’ of Jack Rails for Long-Term Rolling
- Dual ‘Spring-Loaded’ Roller Body Operation
- Dual Precision Roller Bearing Guide Wheels
- Smooth ‘On-Rail’ Rolling with Roller Bearing Wheels
- Adjustable Width Telescoping and Locking Support Arms
- Air / Hydraulic Operation
- Protective Scissor Skirts
- Two Locking Height Positions
- Rubber Height Adapters (Set of 2 Each)
- Durable Powder-Coat Paint Finish

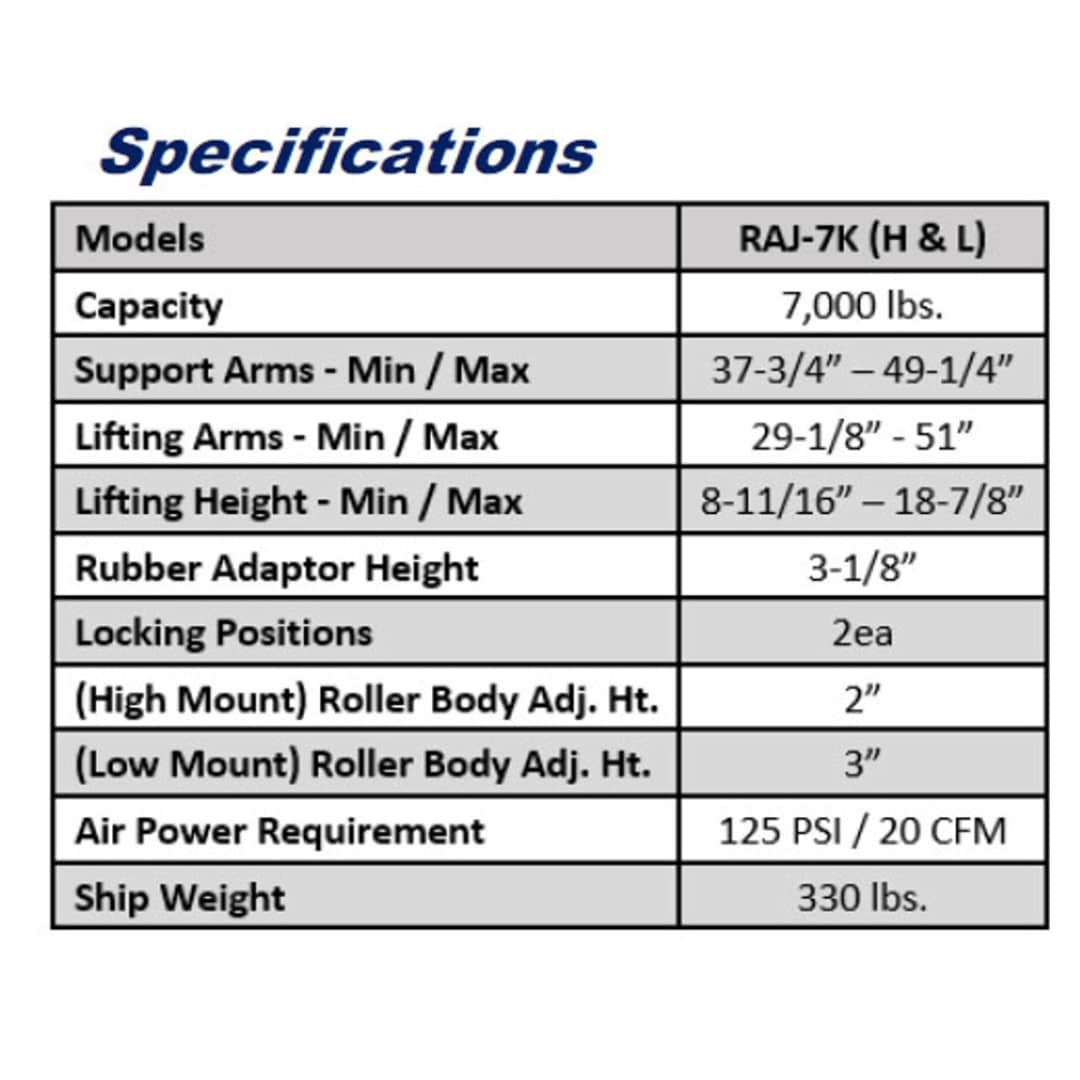

SPECIFICATIONS
- Capacity: 7,000 lbs.

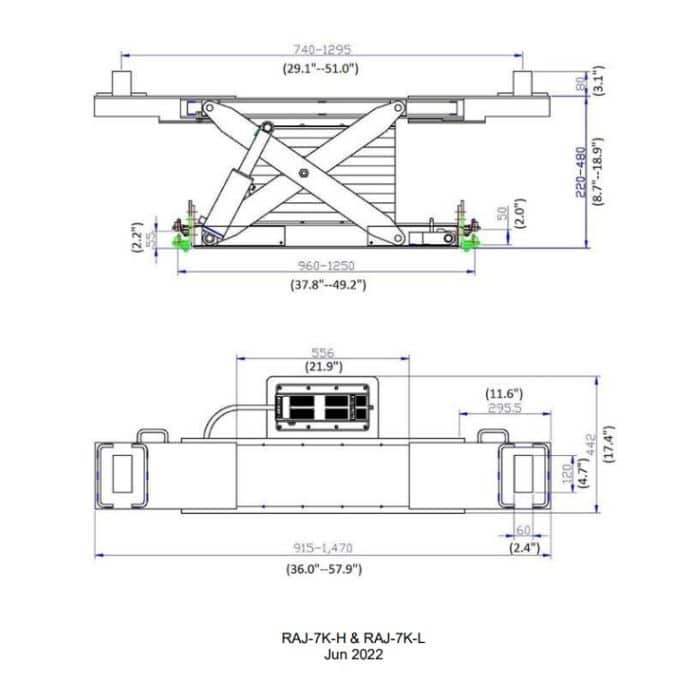

- Support Arms Min / Max: 37-3/4″ – 49-1/4″
- Lifting Arms Min / Max: 29-1/8″ – 51″
- Lifting Height Min / Max: 8-11/16″ – 18-7/8″
- Rubber Adapter Height: 3-1/8″
- Locking Positions: 2

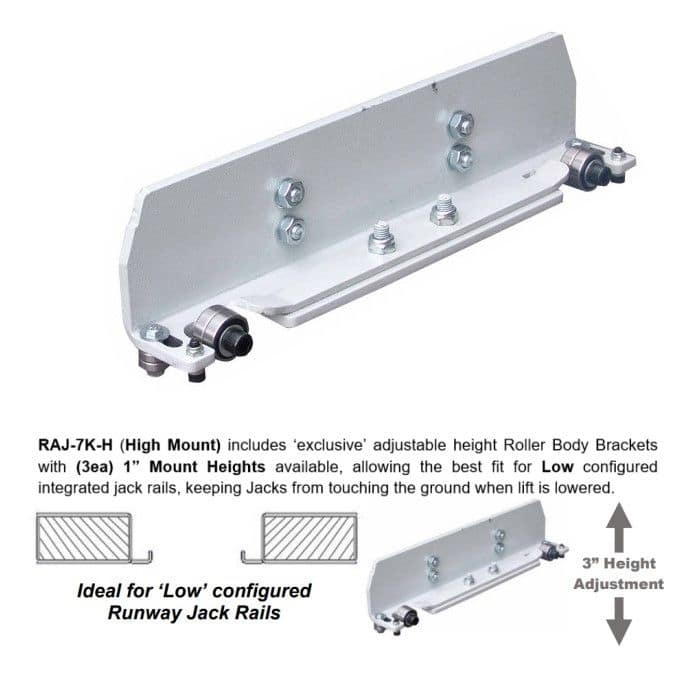

- Roller Body Adj. Height: 3″
- Air Power Requirement: 125 PSI / 20 CFM
- Net Weight: 300 lbs.
- Shipping Weight: 330 lbs.
- Warranty: Limited (1) Year Warranty
