FP14KAC-X
14,000 lb 4-Post Alignment Lift
$8,000
Description

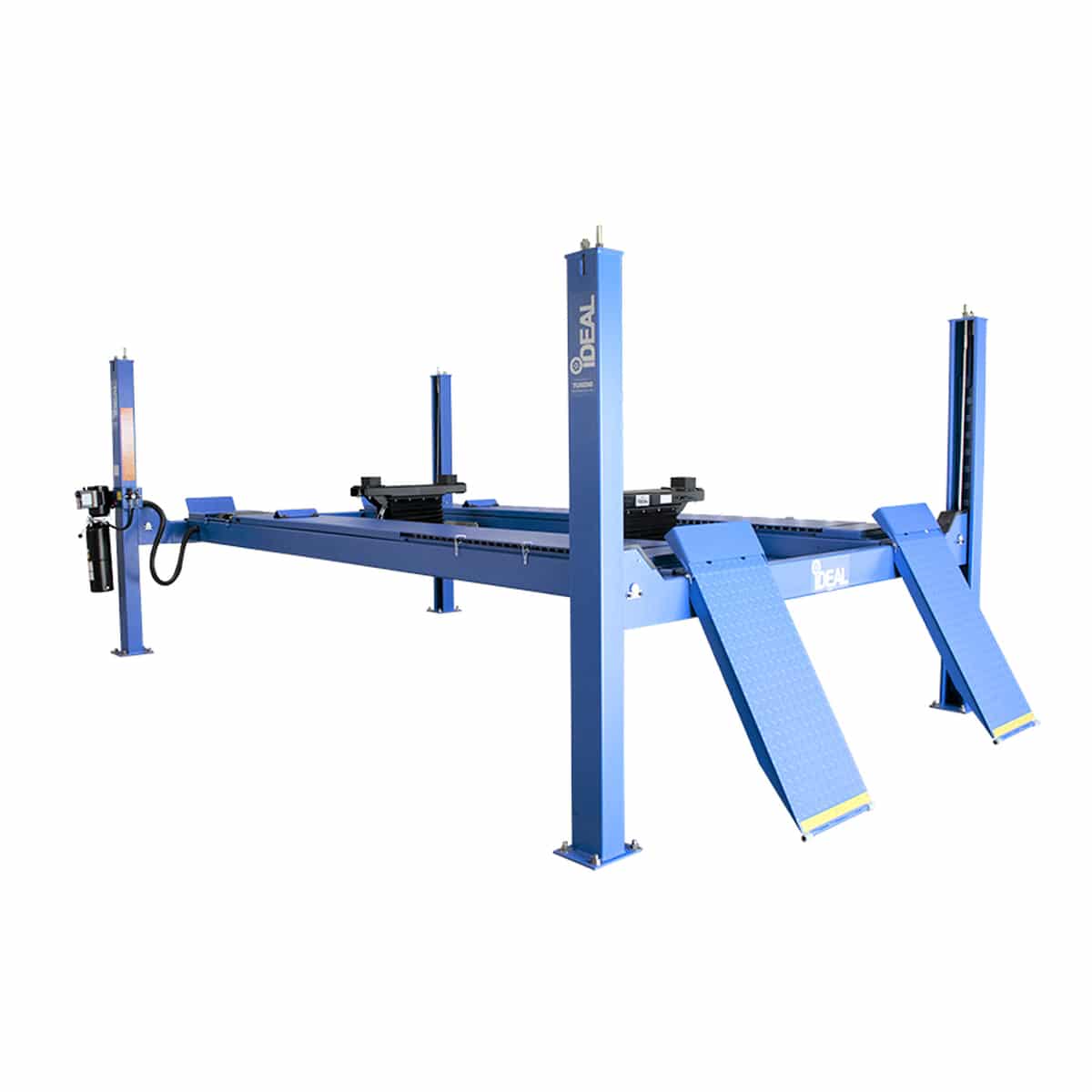

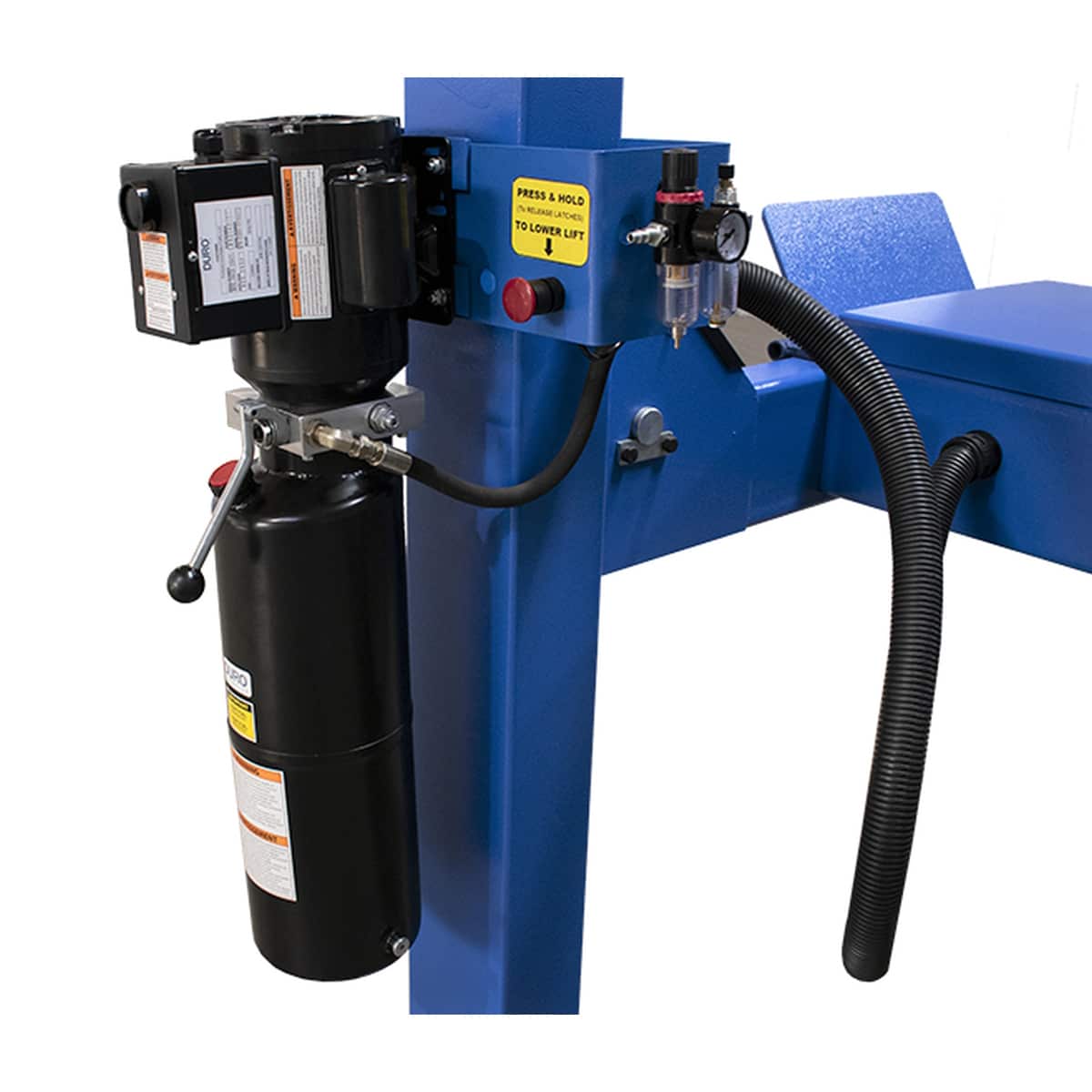

The iDEAL FP14KAC-X 14,000 lb. Four Post Commercial Alignment Lift is a high-performance closed front, cable pull vehicle lift designed for Cars, SUVs, Vans & Trucks. The FP14KAC-X Alignment Lift comes standard with full width Rear Slip Plates, Turntables, Roll-Back Spacers & internal Air-Line Kit, while also applying the latest in design & safety features, such as narrow & wide runway mount positions, extended rise height, concealed hydraulic / mechanical cable lift system with slack cable safety devices and durable pulley & shaft design incorporating convenient grease fittings to extended life of the lift. Easy lift operation is provided with single point pneumatic lock release & high-quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KAC-X modular design also provides the flexibility to extend the runways for aligning or servicing longer vehicles! The standard powder coat finish, 20” wide runways, adjustable lock stops for easy runway leveling and optional power unit mount positions complete the package for a premium, high quality alignment lift, all at an unmatched value!
Features
- 14.000 LBS CAPACITY
- HIGH PERFORMANCE COMMERCIAL ALIGNMENT LIFT
- DURABLE, HIGH QUALITY CABLE LIFT SYSTEM
- EXTENDED RISE HEIGHT
- ‘BOLT-ON’ RUNWAY ALIGNMENT KIT
- 166.7″ MAX ALIGNMENT WHEELBASE (2 WHEEL)
- 157″ MAX ALIGNMENT WHEELBASE (4 WHEEL)
- 182.5″ MAX SERVICE WHEELBASE
- 18 LOCKING HEIGHT POSITIONS
- FULL WIDTH REAR WHEEL SLIP PLATES
- TWO TURNTABLE POSITIONS W/ SPACER COVERS
- 20* WIDE RUNWAYS
- NARROW & WIDE RUNWAY MOUNTING POSITIONS
- SINGLE POINT PNEUMATIC LOCK RELEASE
- FULLY ADJUSTABLE LOCK STOPS FOR EASY LEVELING
- SLACK CABLE SAFETY DEVICES
- SELF-CHOCKING APPROACH RAMPS W/ NYLON ROLLERS
- WHEEL CHOCKS (1PR)
- DURABLE POWDER COAT FINISH
Specifications
| Capacity | 14,000 lbs. |
| Overall Length w/Ramp | 252-1/2″ |
| Overall Width (Without Power Unit) | 131-7/8″ |
| Overall Width (With Power Unit) | 142″ |
| Overall Height | 92-1/2″ |
| Max Rise Height | 79-1/2″ |
| Min Height | 9-7/8″ |
| Width Between Posts | 116-1/4″ |
| Length Between Posts | 196″ |
| Width Between Runways | 43″ or 46″ |
| Width of Runways | 20″ |
| Max Wheelbase | 182-1/2″ |
| Max Align Wheelbase (2 Wheel) | 166-3/4″ |
| Min / Max Align Wheelbase (4 Wheel) | 103″ / 157″ |
| Ramp Length | 44″ |
| Max Clearance Under Runway | 69-5/8″ |
| Drive-Thru Clearance | 100″ |
| Base Plate | 10-1/2″ x 9″ |
| Power Requirement | 220V – 20Amp – 1PH |
| Ship Weight | 3,810 lb |
| Min Bay Size | 16′ x 25′ |
Details on Freight
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
