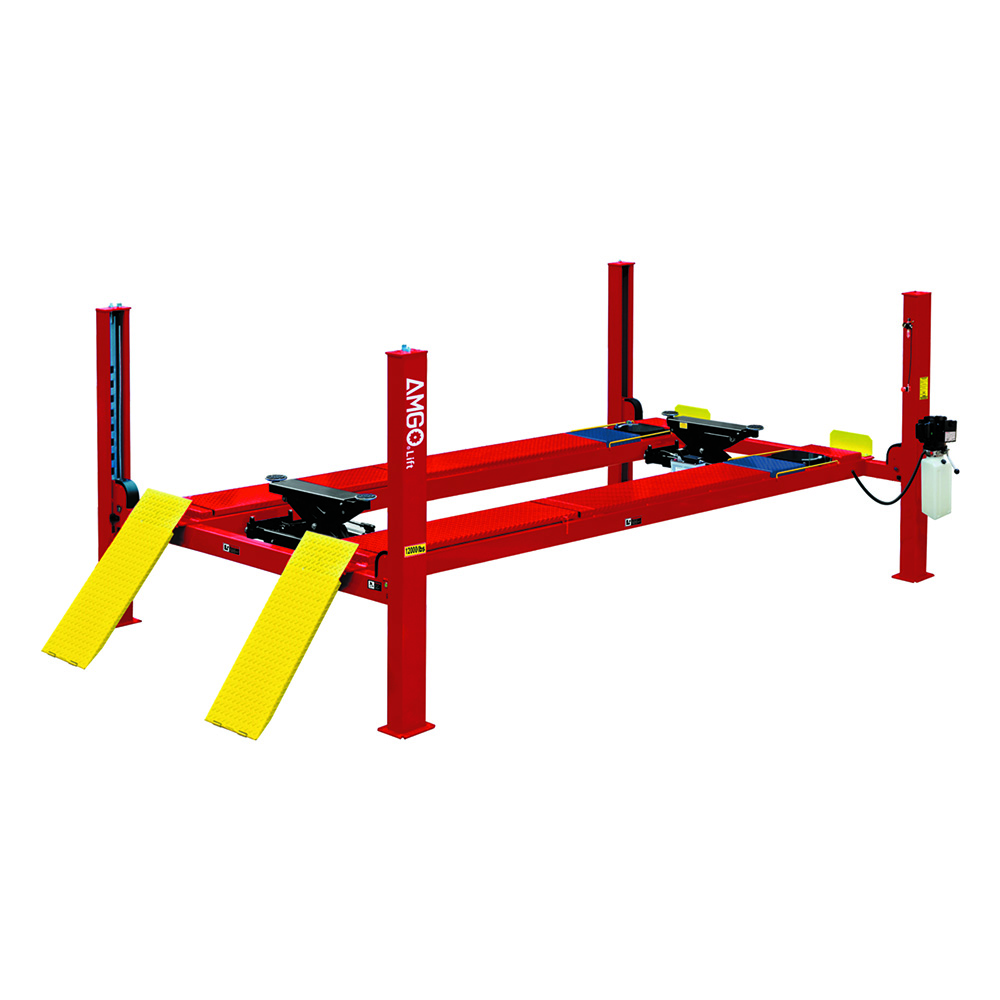

AMGO PRO-12ASX
12,000 lb 4-Post Lift$5,095
Description
Need alignment work done on everyday vehicles? This is the lift for you! With double safety locks to ensure you and your vehicle are always safe, you can feel secure with your work.
Features
-
12,000 lbs lifting capacity
-
Air-released safety lock for convenient operation and reliability
-
Mechanical self lock and cable breaking protection
-
Ø1/2″ aircraft quality cable
-
Optional adjustable turnplate pockets to fit different wheel bases
-
Skid proof diamond platform
-
Hydraulic cylinders are designed and Made to high quality standards, high quality NOK seals
-
Strict quality control of cylinders with flow restrictors to keep a constant low speed
-
Optional Rolling Jacks:
-
J6H 6,000lbs manual control
-
J6A 6,000lbs pneumatic pump
-
Front Turnplates No. 40101
-
-
More choices:
-
Optional led lights: No. 40102001
-
Optional extension kits: No. 40903
-
Optional air line kits: No. 40102.
-
-
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

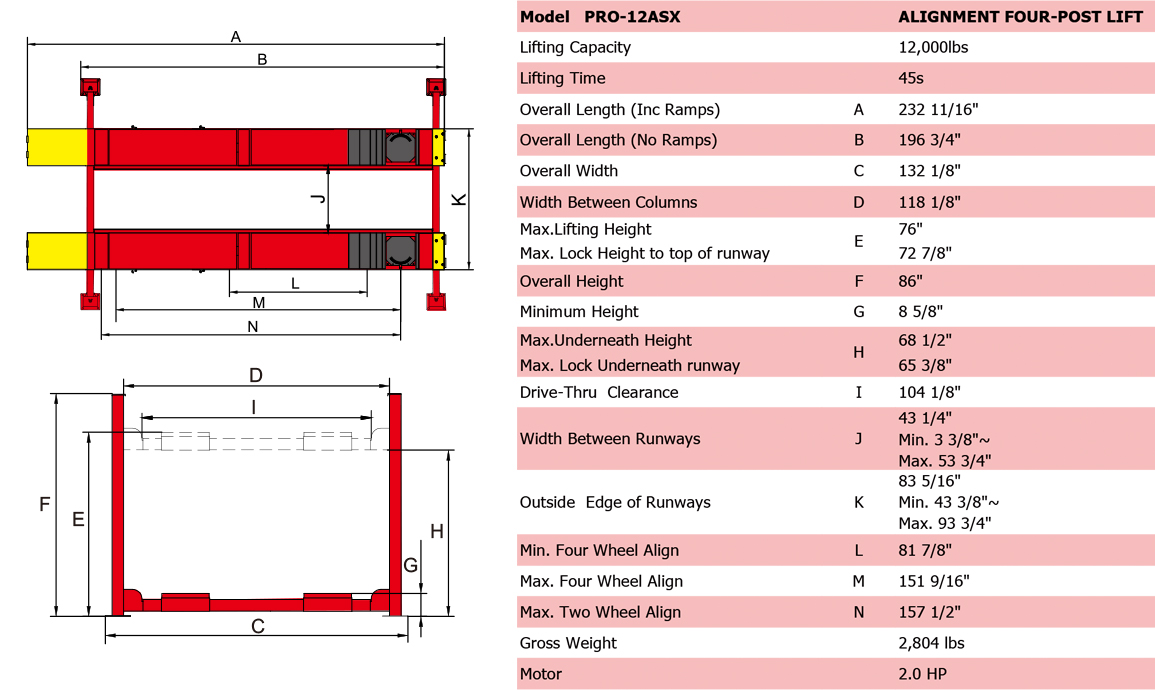

Specifications
Style | Alignment |
Lifting Capacity | 12,000 lbs (5,500 kg) |
Lifting Time | 45S |
A: Overall Length (Inc.Ramps) | 232 5/8″ (5910mm) |
B: Overall Length (No.Ramps) | 196 3/4″ (4998mm) |
C: Overall Width | 132 1/8″ (3356mm) |
D: Width Between Columns | 118 1/8″ (3000mm) |
E: Lifting Height | 75 3/8″ (1915mm) |
F: Overall Height | 86″ (2185mm) |
G: Minimum Height | 8 5/8″ (220mm) |
H: Runway Width | 20″ (508mm) |
I: Drive-Thru Clearance | 104 1/8″ (2646mm) |
J: Width Between Runways | 43 1/4″ (1100mm) Max.53 3/4″ (1365mm) |
K: Min. Four Wheel Align | 81 7/8″ (2080mm) |
L: Max. Four Wheel Align | 151 5/8″ (3850mm) |
M: Max. Two Wheel Align | 157 1/2″ (4000mm) |
Gross Weight | 2,520 lbs (1,143 kg) |
Motor | 2.0HP, 220V/60Hz Single Phase |
Details on Freight
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
AMGO Locations:
- Temecula, CA
- Kalamazoo, MI
- Manning, SC
- Dallas, TX
*Locations subject to change, please contact us for the most updated information

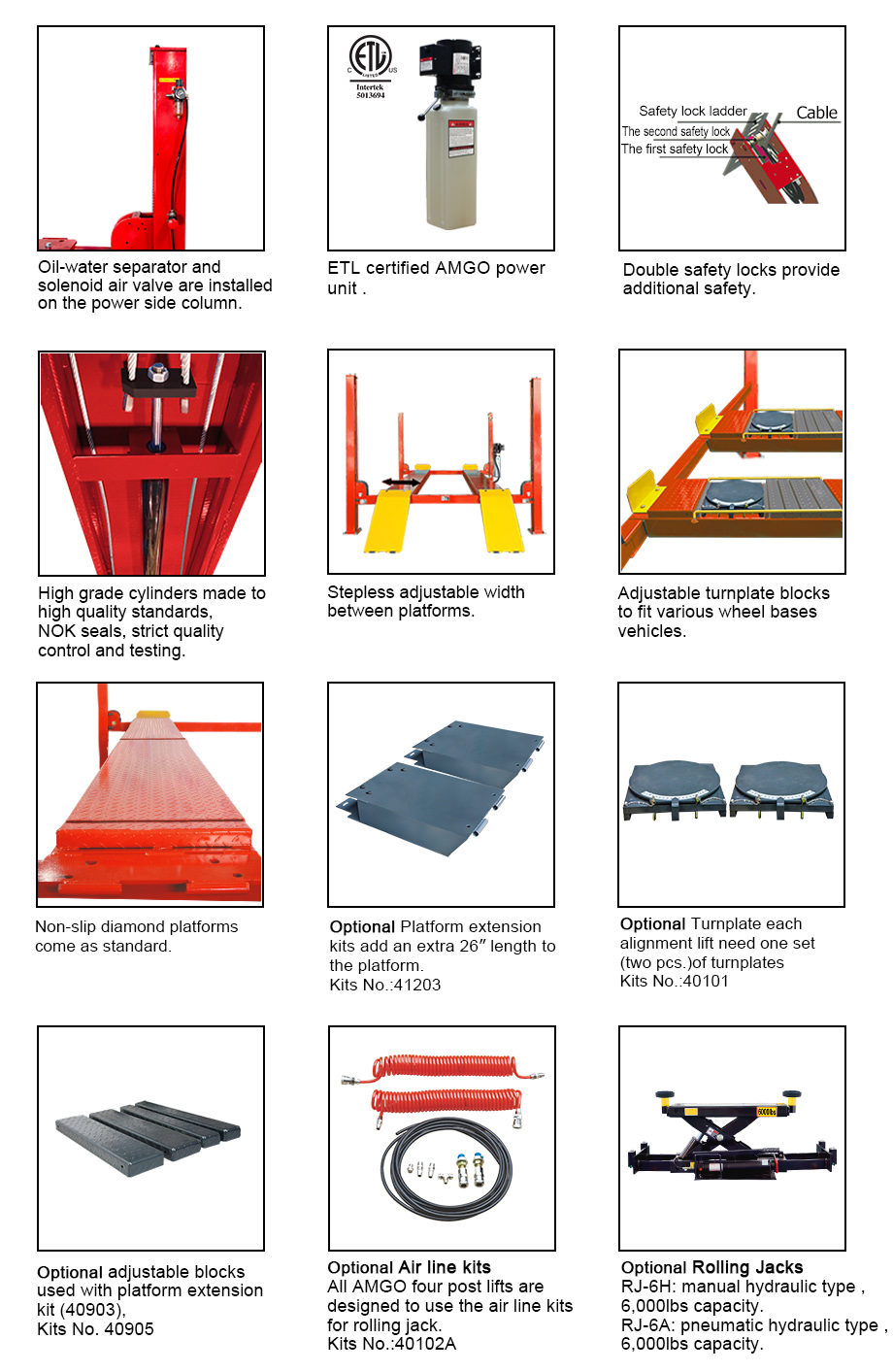

PRO-12ASX_3
High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
PRO-12ASX_5
Optional Rolling Jacks: J6H: Manual hydraulic type 6,000lbs ; J6A:Pneumatic hydraulic type 6,000lbs;RJ-8A: Pneumatic hydraulic type 8,000lbs;
PRO-12ASX_6
$75 – Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No 40102
PRO-12ASX_7
Optional adjustable blocks for alignment 4 post lift. Kits No.:40905(used with kits 40903/41203/41403)
PRO-12SX_6
$519 – Optional length extension kits adds an extra 26″ (660mm) length to the platform. Kits No.: 40903(PRO-12SX,PRO-12ASX)
