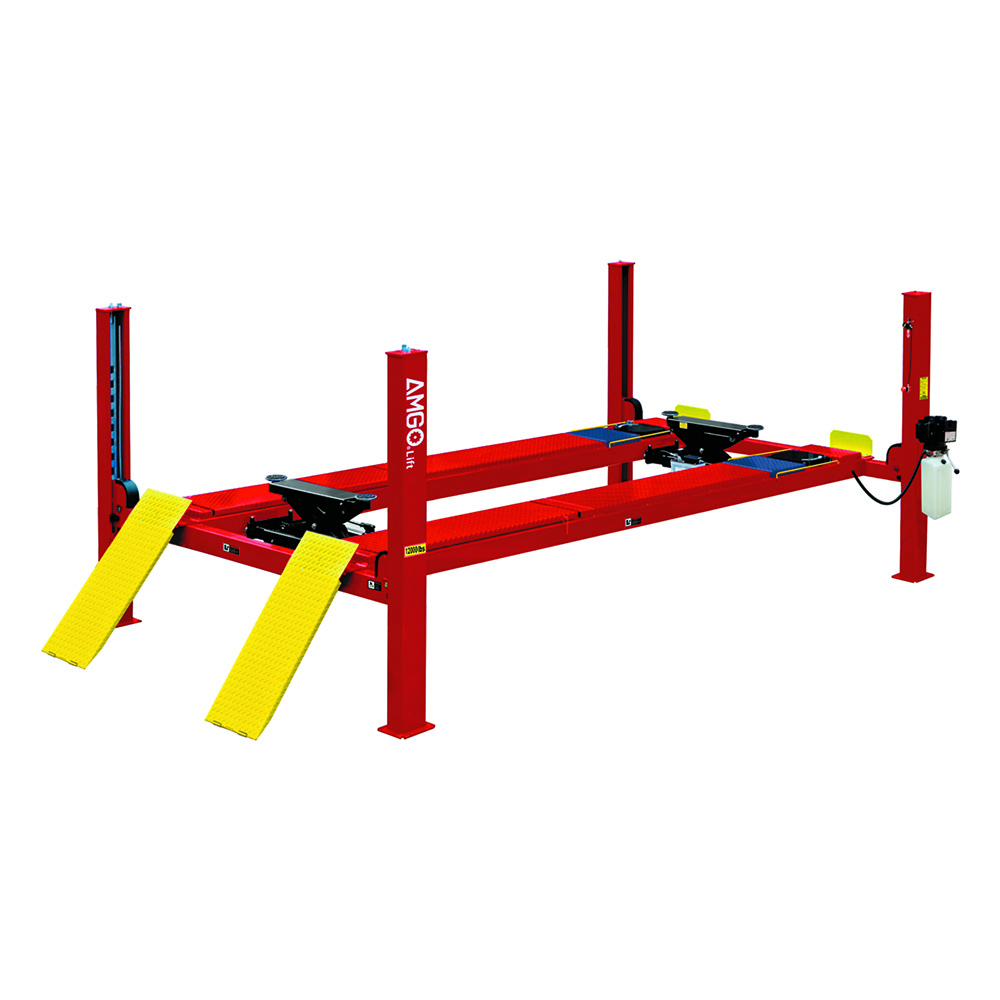

AMGO PRO-12A
12,000 lb Alignment Lift
$5,475
Description
The PRO-12A, with a 12,000 lb lifting capacity, provides wheel service maintenance with integrated rear slip plates and it has adjustable turn plate pockets to fit various wheelbases.
Features
-
12,000 lbs Capacity
-
Air-Lock Released for Safety and Reliability of Convenient Operation
-
Mechanical Self-Lock and Cable-Breaking Protection
-
1/2″ Aircraft at Quality Cable
-
Hydraulic cylinders are designed and made to high quality standards
-
Skid Proof Diamond Platform
-
Optional Rolling Jacks:
-

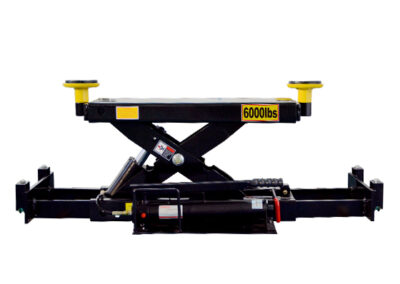

J6H 6,000lbs manual pump
-

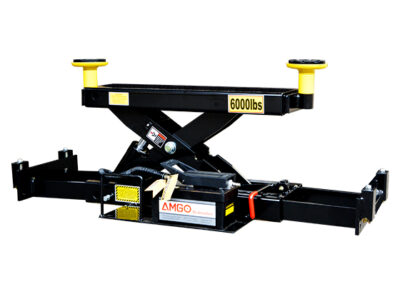

J6A 6,000lbs pneumatic pump
-
-
More choices:
-
Optional led lights: No. 40102001
-
Optional extension kits: No. 41203
-
Optional air line kits: No. 40102
-
-
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

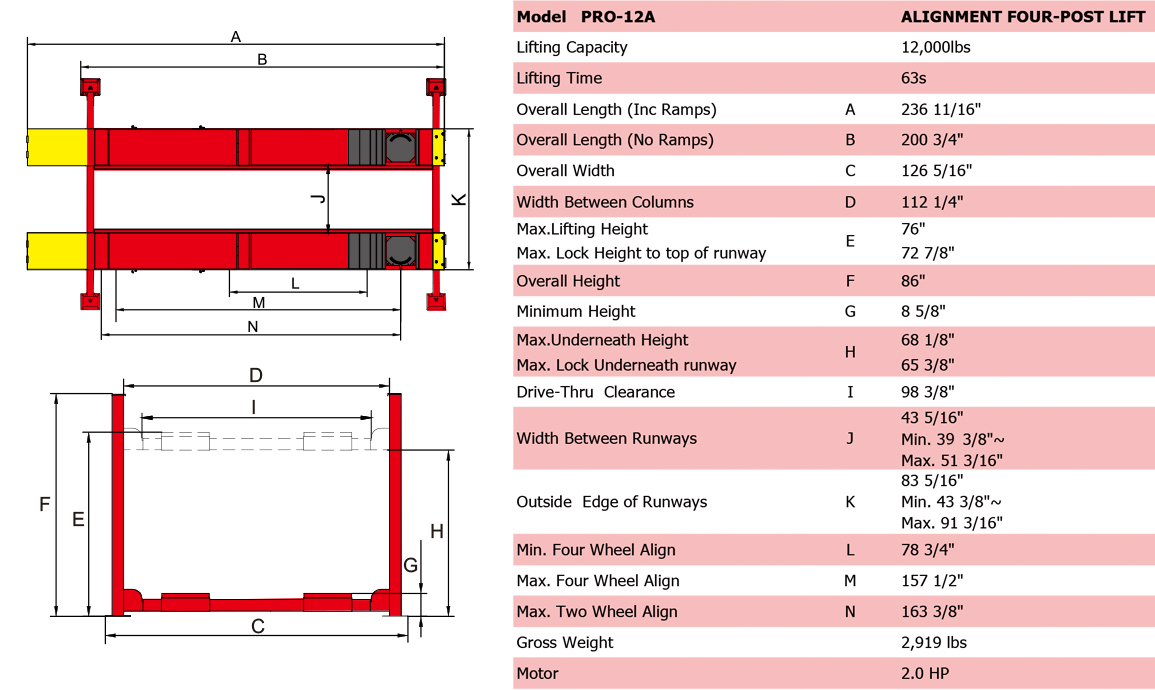

Specifications
| Style | Alignment |
| Lifting Capacity | 12,000 lbs (5,500kg) |
| Lifting Time | 63S |
| A: Overall Length (Inc.Ramps) | 236 5/8″ (6012mm) |
| B: Overall Length (No.Ramps) | 200 3/4″ (5100mm) |
| C: Overall Width | 126 1/4″ (3208mm) |
| D: Width Between Columns | 112 1/4″ (2852mm) |
| E: Lifting Height | 75 3/8″ (1915mm) |
| F: Overall Height | 86″ (2185mm) |
| G: Minimum Height | 8 5/8″ (220mm) |
| H: Runway Width | 20″ (508mm) |
| I: Drive-Thru Clearance | 98 3/8″ (2500mm) |
| J: Width Between Runways | 43 1/4″ (1100mm) Max.51 1/8″ (1300mm) |
| K: Min. Four Wheel Align | 78 3/4″ (2000mm) |
| L: Max. Four Wheel Align | 155 7/8″ (3960mm) |
| M: Max. Two Wheel Align | 161 3/8″ (4100mm) |
| Gross Weight | 2,901 lbs (1,316kg) |
| Motor | 2.0HP, 220V/60Hz Single Phase |
Details on Freight
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
AMGO Locations:
- Temecula, CA
- Kalamazoo, MI
- Manning, SC
- Dallas, TX
*Locations subject to change, please contact us for the most updated information

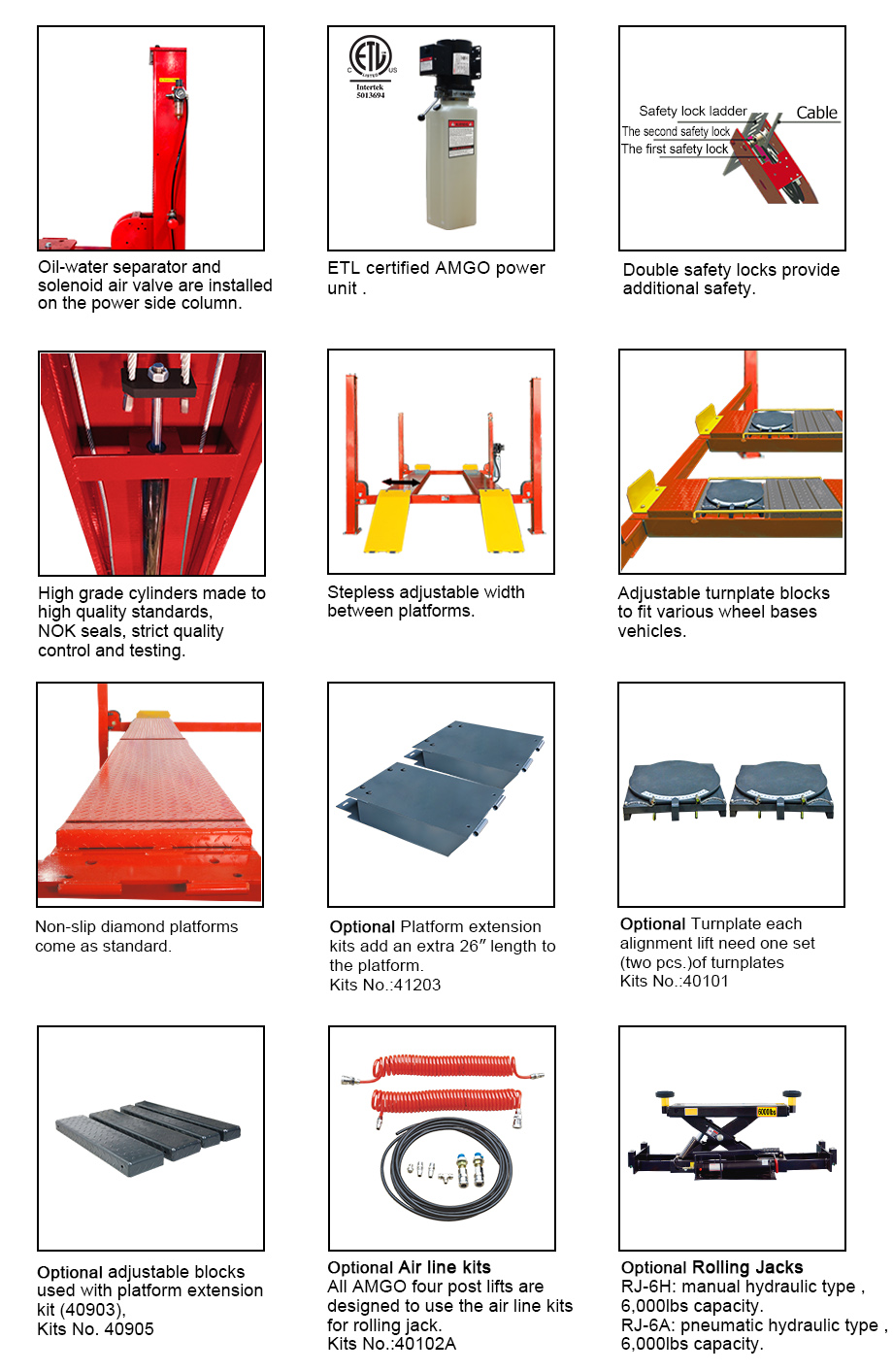

PRO-12A_1
Air control safety device.
PRO-12A_2
Double-safety locks
PRO-12A_3
High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
PRO-12ASX_4

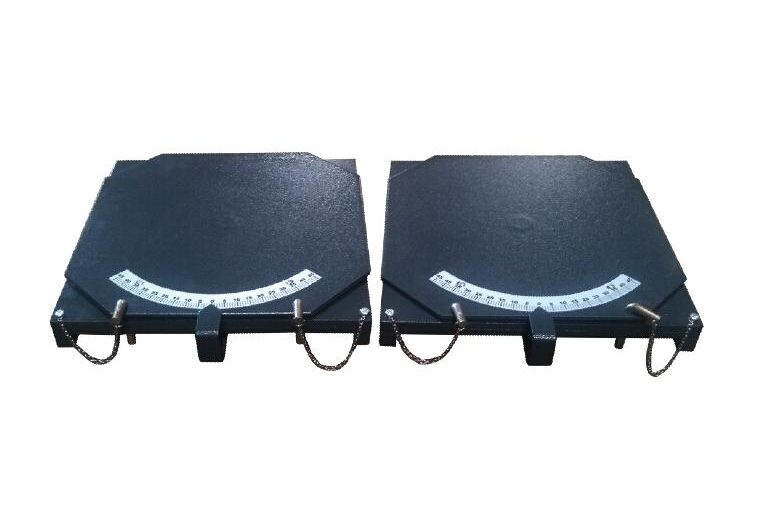

Adjustable turnplate blocks. Optional turnplate. Kit No.: 40101
PRO-12A_5
Optional Rolling Jacks: J6H: Manual hydraulic type 6,000lbs ; J6A:Pneumatic hydraulic type 6,000lbs;RJ-8A: Pneumatic hydraulic type 8,000lbs;
PRO-12A_6
$75 – Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No 40102
PRO-12_6
$530 – Optional length extension kits adds an extra 26″ (660mm) length to the platform. Kits No.: 41203 (PRO-12,PRO-12A)
PRO-12ASX_7

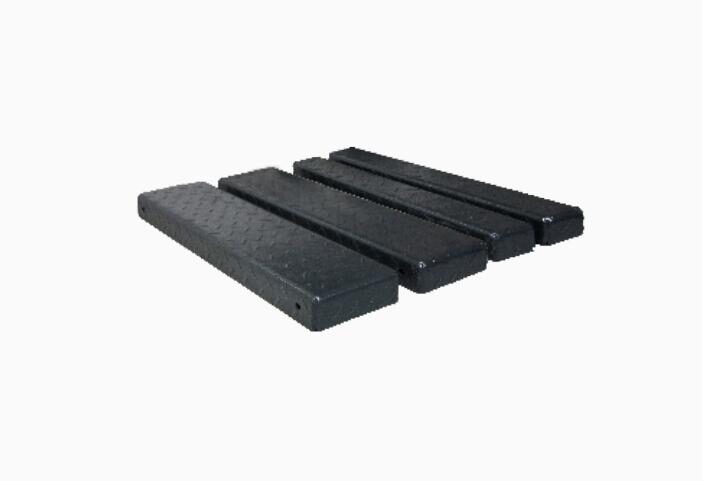

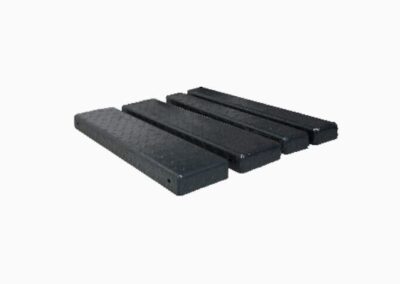

Optional adjustable blocks for alignment 4 post lift. Kits No.:40905(used with kits 40903/41203/41403)
