Triumph NTO-20S
20,000 lb 2-Post Symmetric Clearfloor Lift
$8,899
$7,799
Description

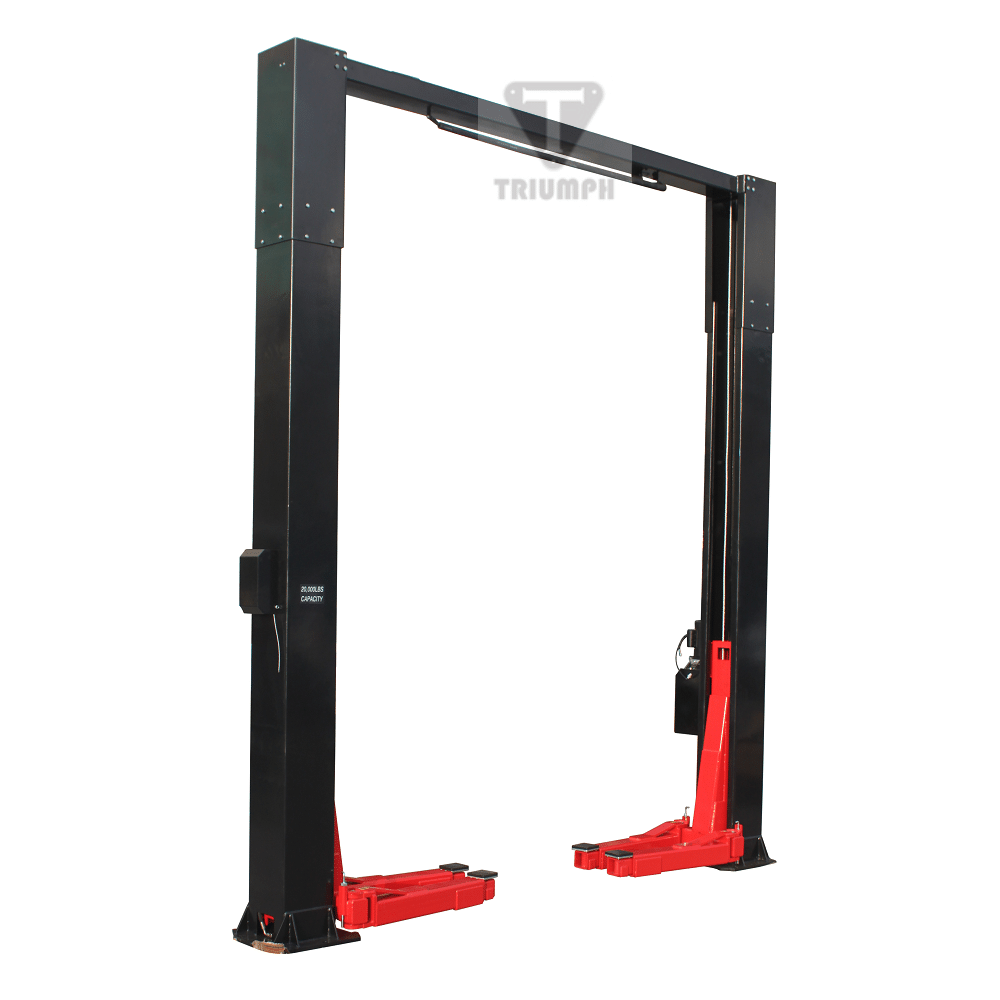

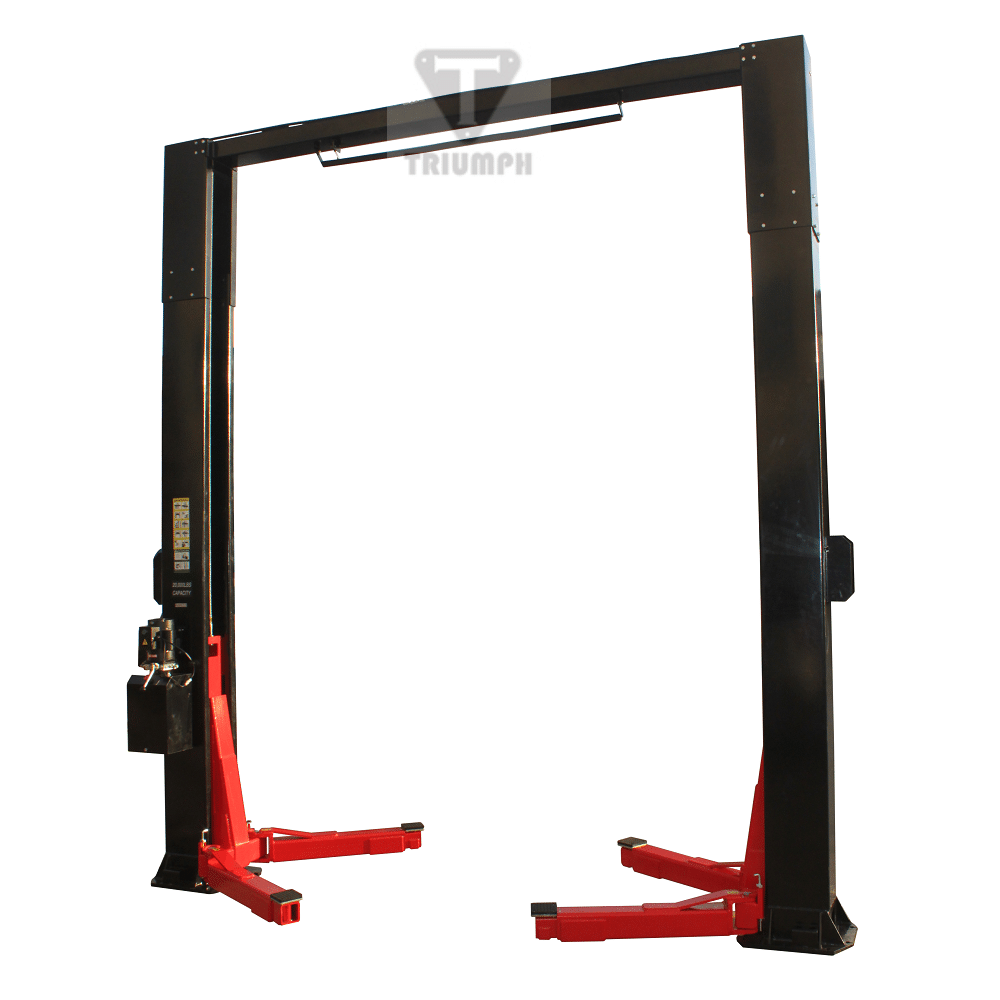

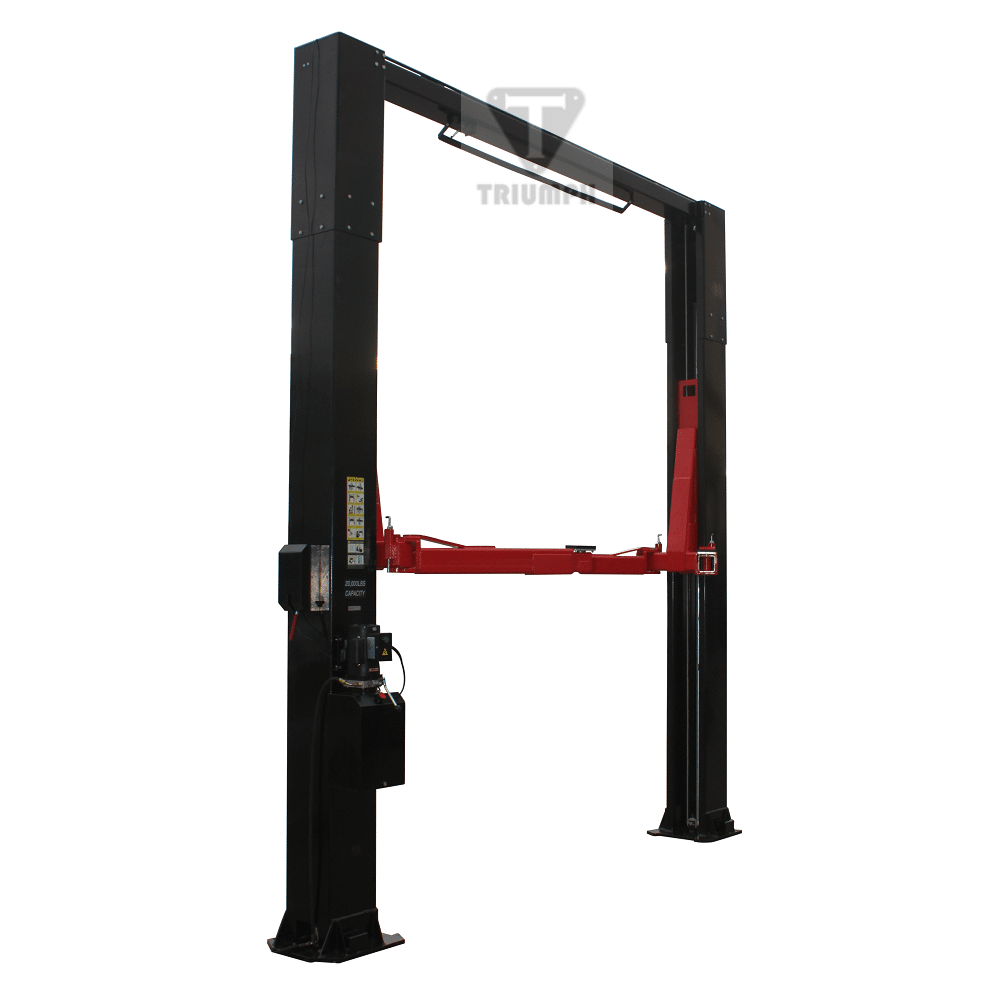

NTO-20S 20,000 lb Two Post Auto Lift
Triumph 20,000 LB 2 Post lift come with our standard 1 year parts 5 year structure warranty. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service. ISO 9001 and CE Certified/Compliant. Triumph 20,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum rated 4000 PSI strength. Direct Drive Cylinders, Electrical override automatic safety shut-off, Free mounting hardware, free truck adapters.

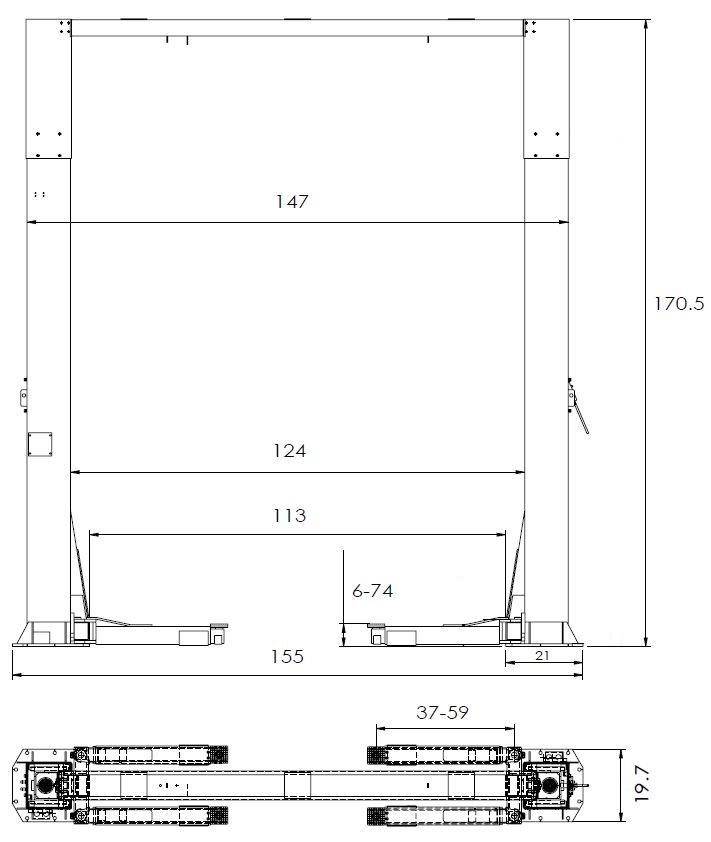

Specifications
| Capacity | 20,000 lbs |
| Type | Overhead – Symmetric |
| Overall Height | 170.5″ |
| Overall Width | 155″ |
| Lifting Height | 74″ |
| Distance Between Posts | 124″ |
| Drive Thru Width | 113″ |
| Lowered Height | 6″ |
| Base Plate Size | 21×20″ |
| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 40 Seconds |
| Voltage | 220 Volt |
| Horsepower | 3 HP |
| Concrete | 6″ Slab, 4,000 PSI |
| Warranty | 1-Year Parts |
Details on Freight
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
Triumph Locations:
- Fort Worth, TX
- Columbus, OH
- Las Vegas, NV
*Locations subject to change, please contact us for the most updated information
