Triumph NTO-11A
11,000 lb 2-Post Asymmetric Clearfloor Lift
$3,550
$3,050
Description

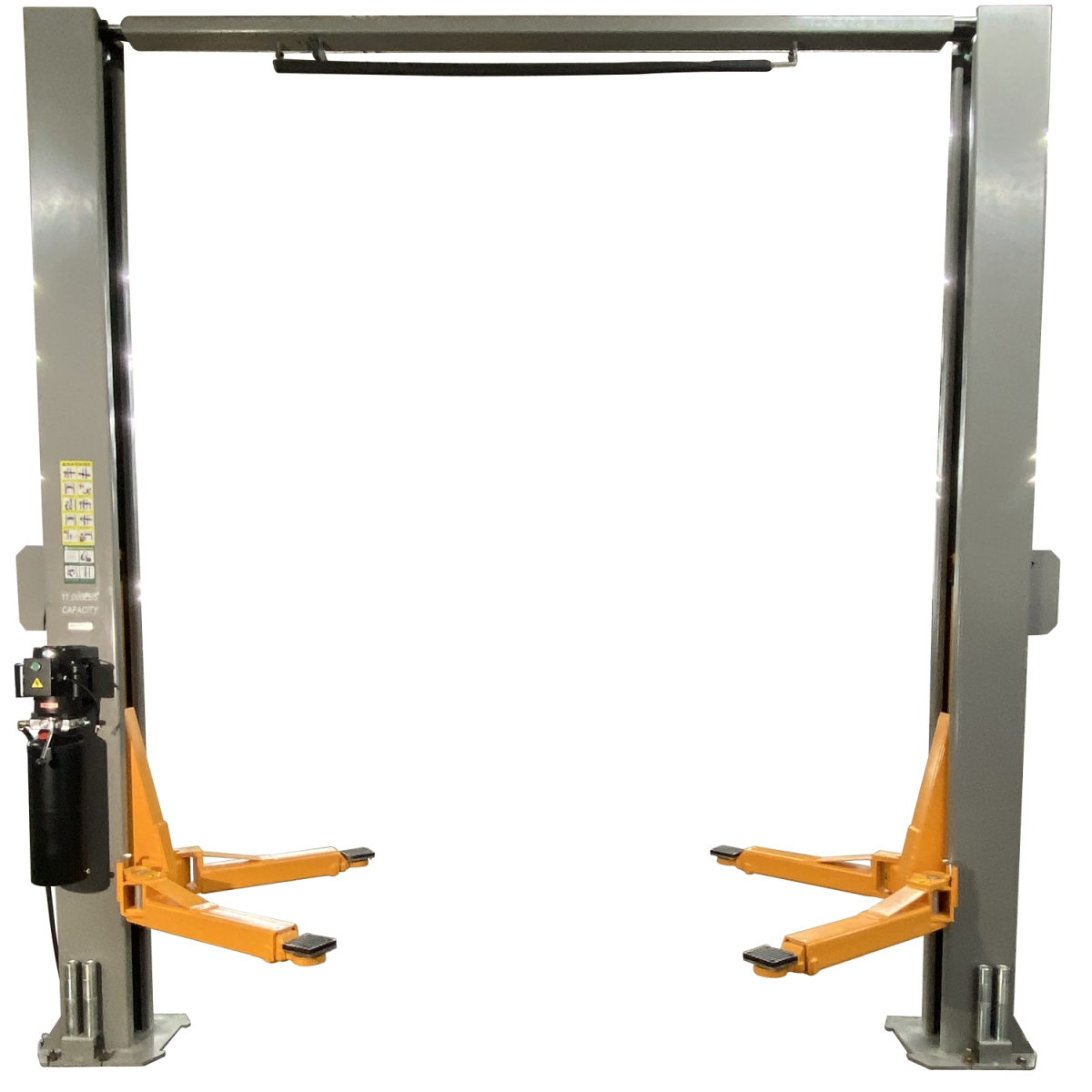

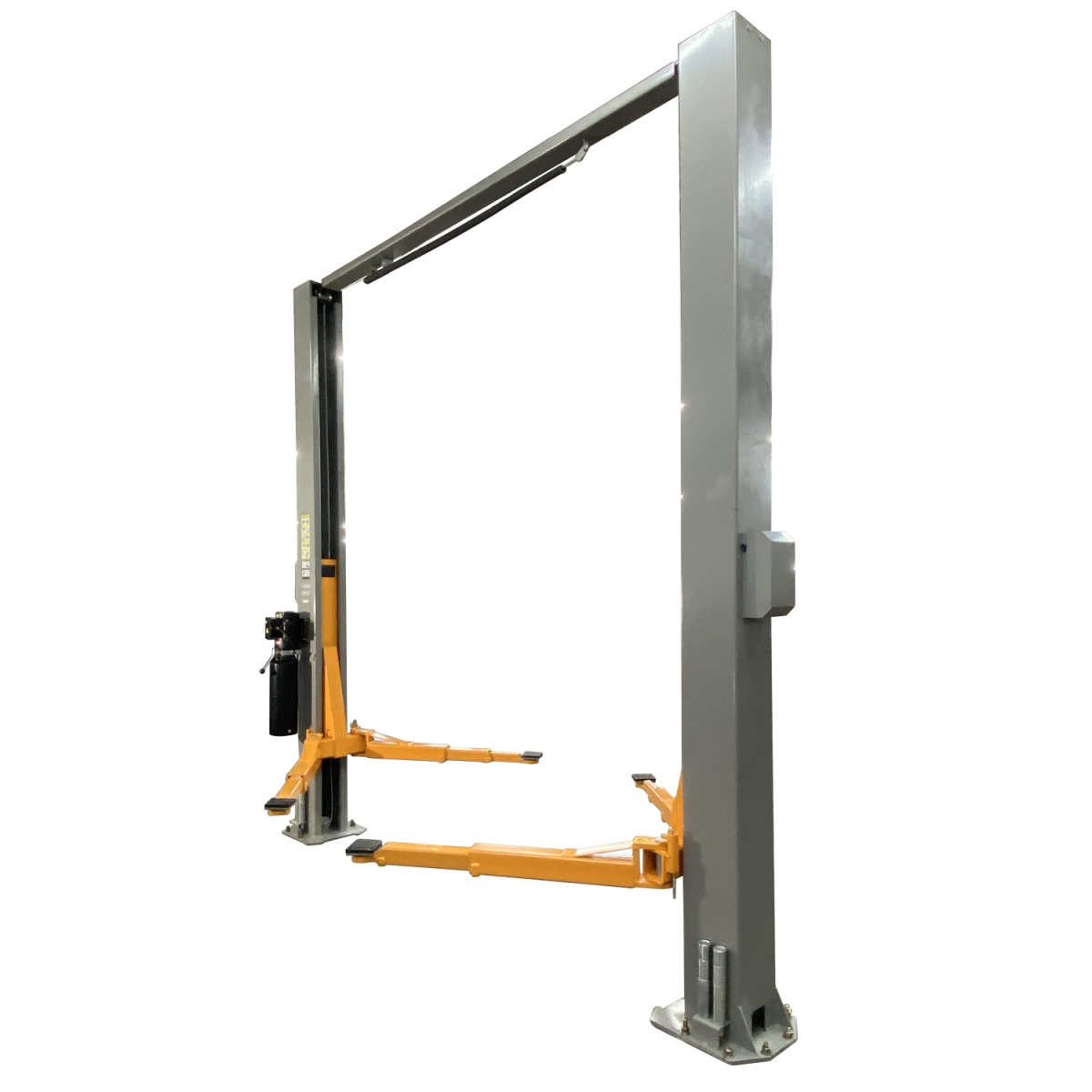

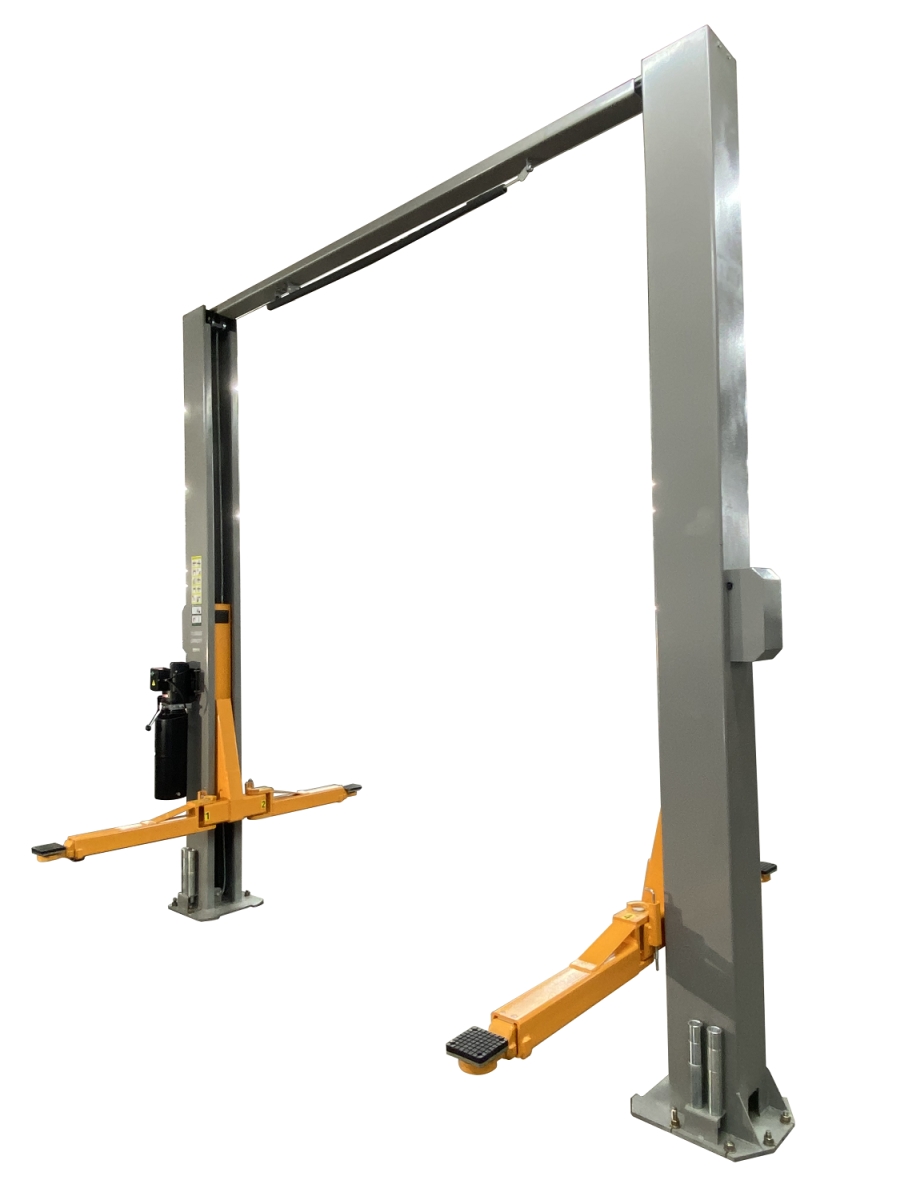

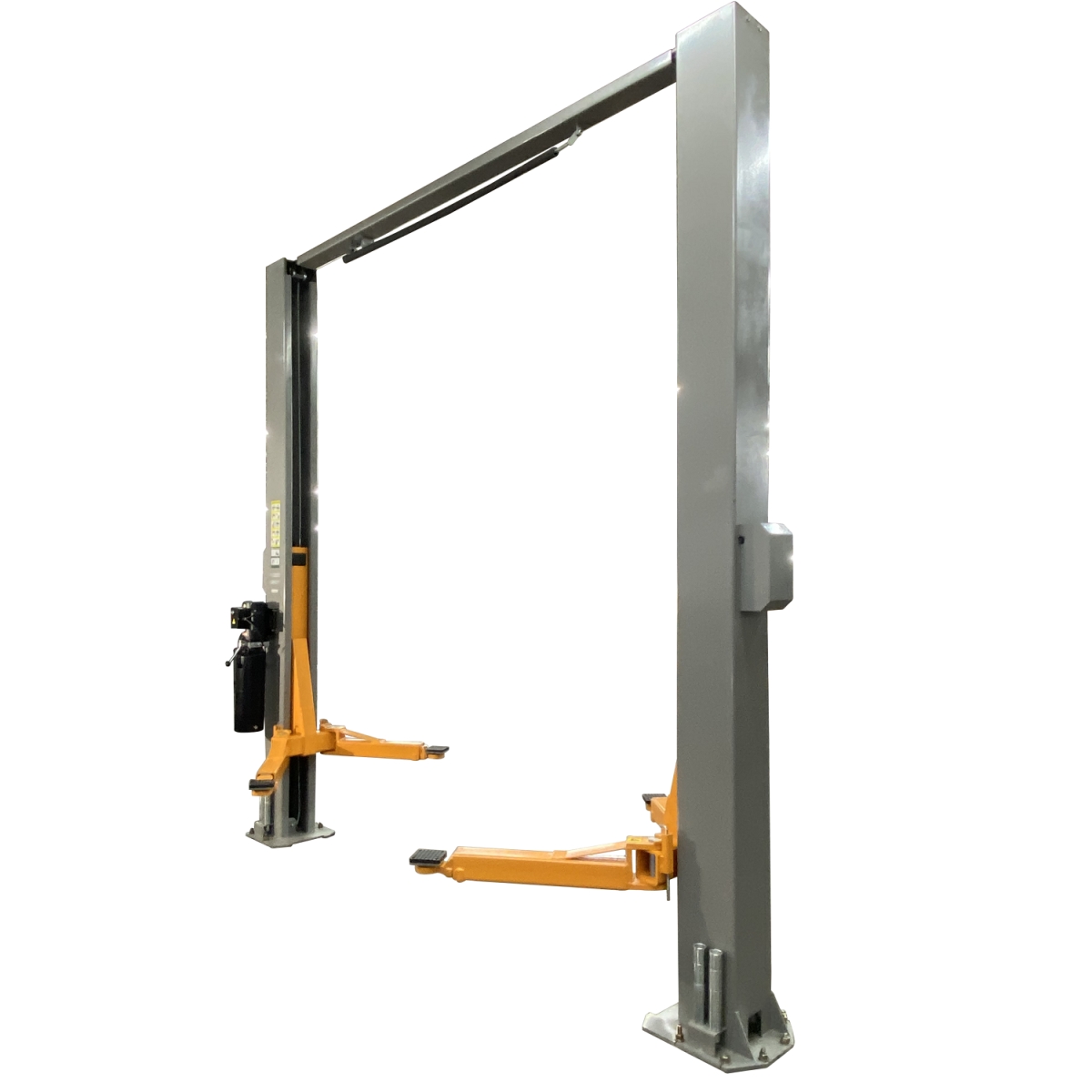

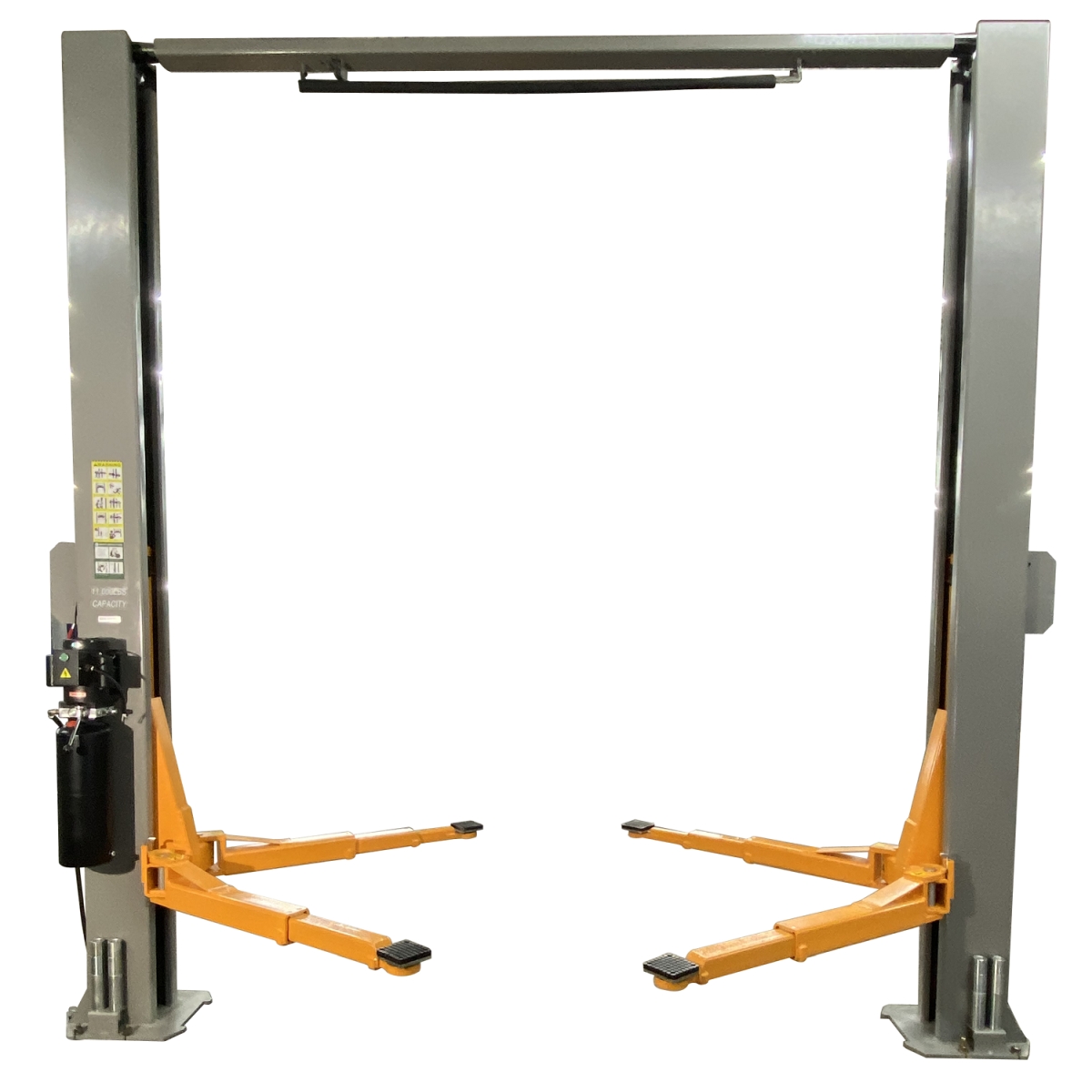

NTO-11A 11,000 lb Two Post Asymmetric Auto Lift

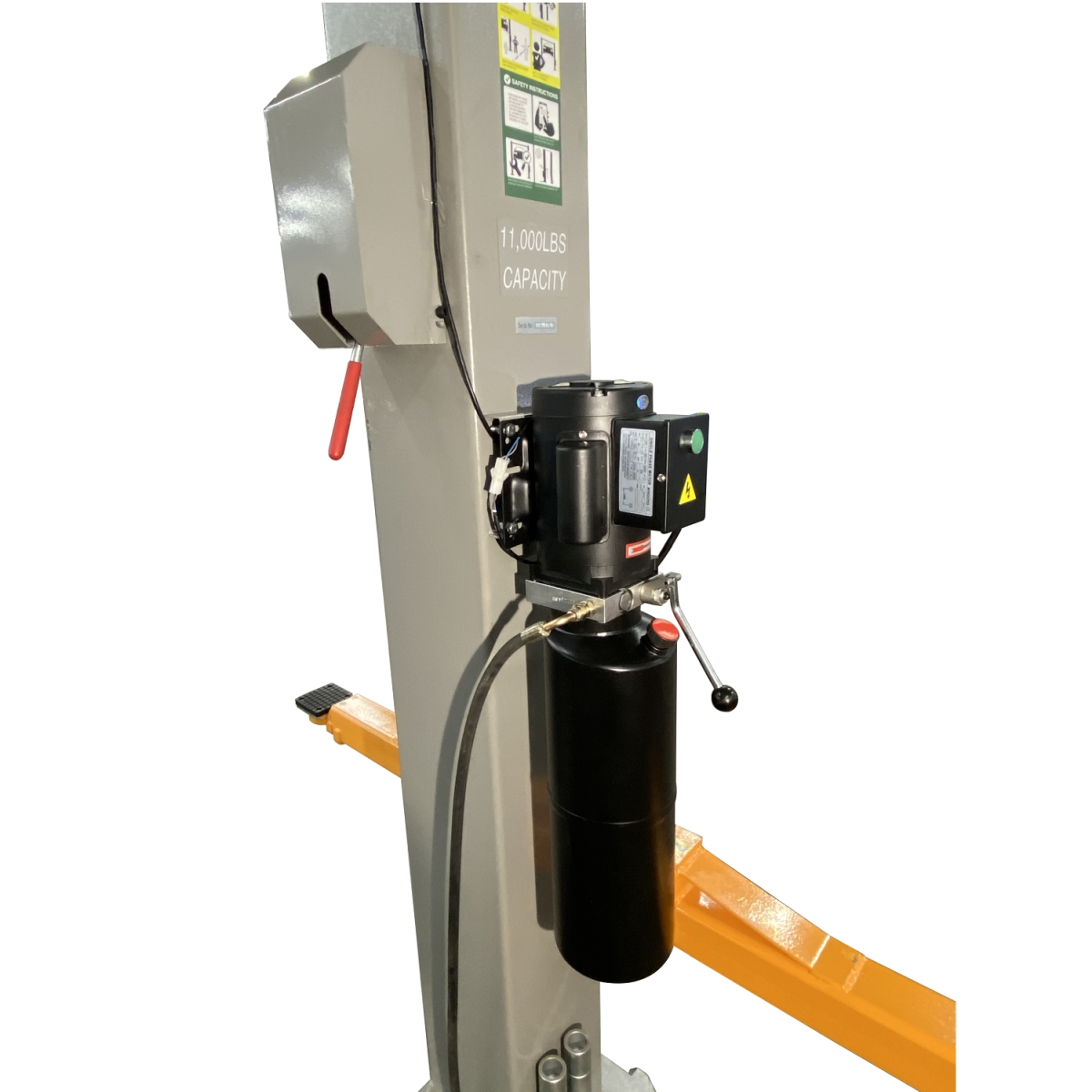

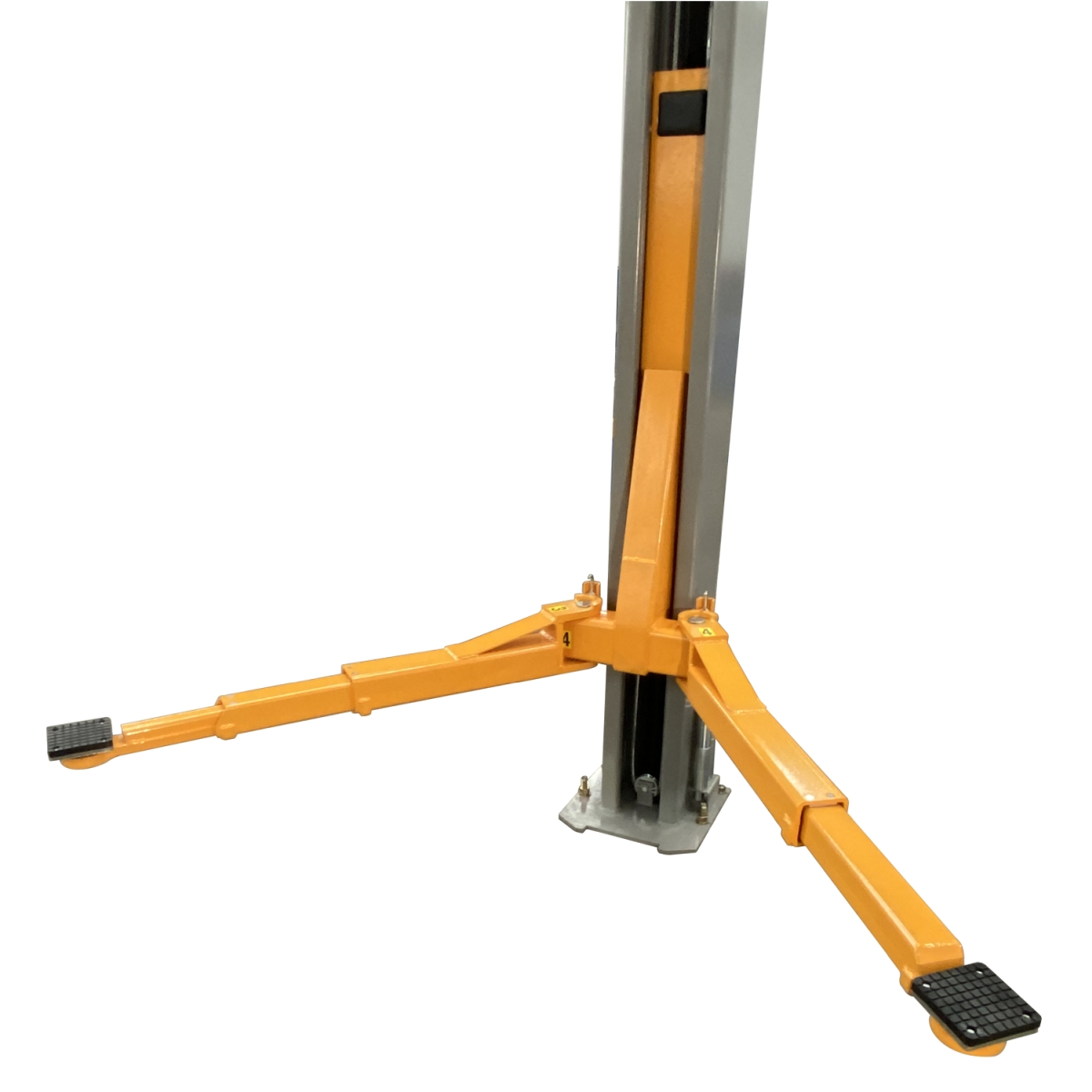

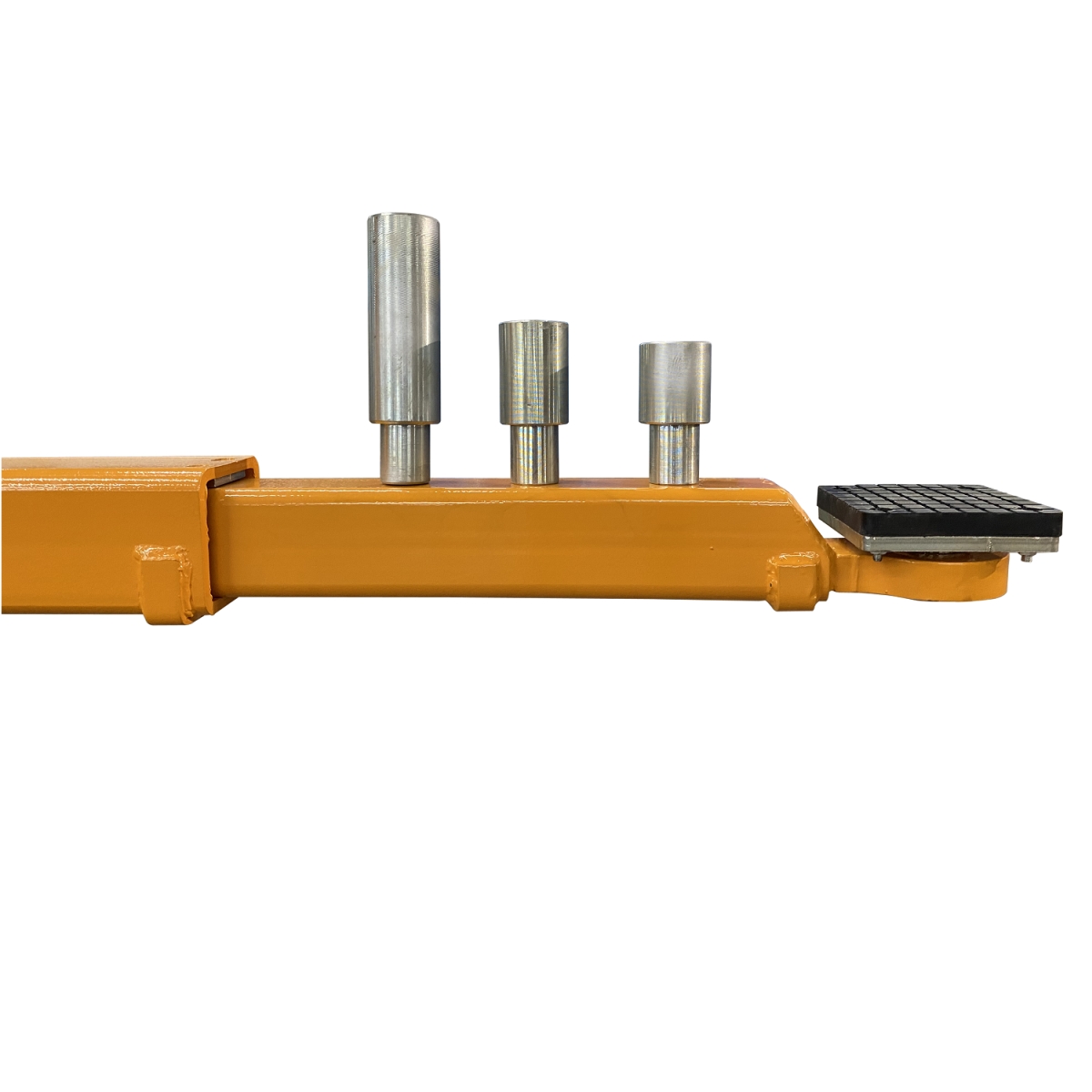

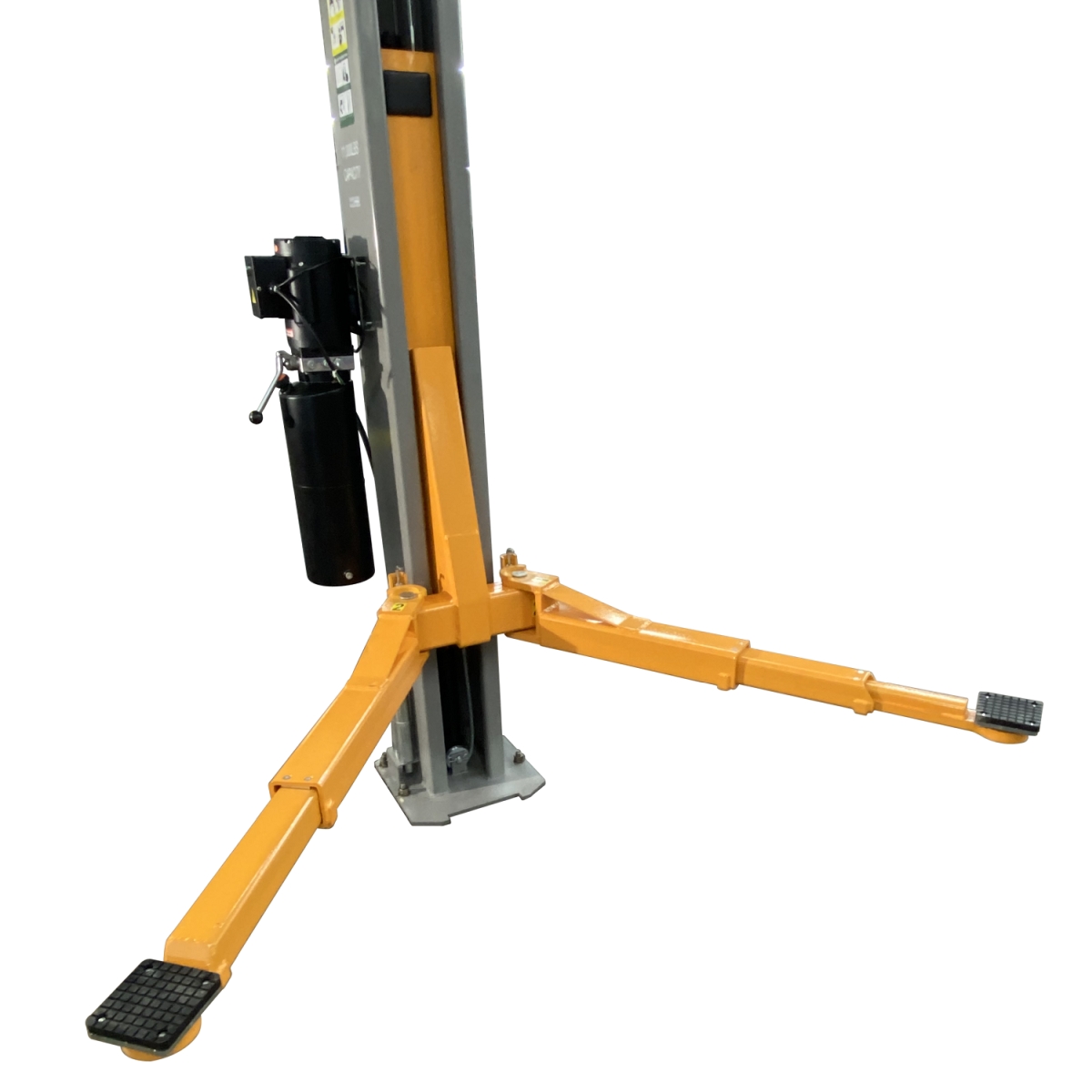

A commercial grade two post lift designed to handle large trucks and passenger vehicles. The overhead design keeps the floor clear of obstructions so you can roll any machines or tools under the vehicle while the lift is raised. Overhead cut off switch ensures you will not damage your vehicle by raising too high. A heavy duty two post lift with single point safety release. Direct drive cylinders guarantee smooth travel. 3/8″ air craft size synchronization cables ensure both sides lift equally. Large heavy duty machined truck adapters are included so you can handle small cars to large trucks. Includes mounting hardware and power unit.
Specifications
| Capacity | 11,000 lbs |
| Type | Overhead – Asymmetric |
| Overall Height | 145″ |
| Overall Width | 145″ |
| Lifting Height | 72″ |
| Distance Between Posts | 118″ |
| Drive Thru Width | 108″ |
| Lowered Height | 4.5″ |
| Base Plate Size | 18×20″ |
| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 40 Seconds |
| Voltage | 220 Volt |
| Horsepower | 3 HP |
| Concrete | 4″ Slab, 3,000 PSI |
| Warranty | 1-Year Parts |
Triumph Locations:
- Fort Worth, TX
- Columbus, OH
- Las Vegas, NV
*Locations subject to change, please contact us for the most updated information
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
