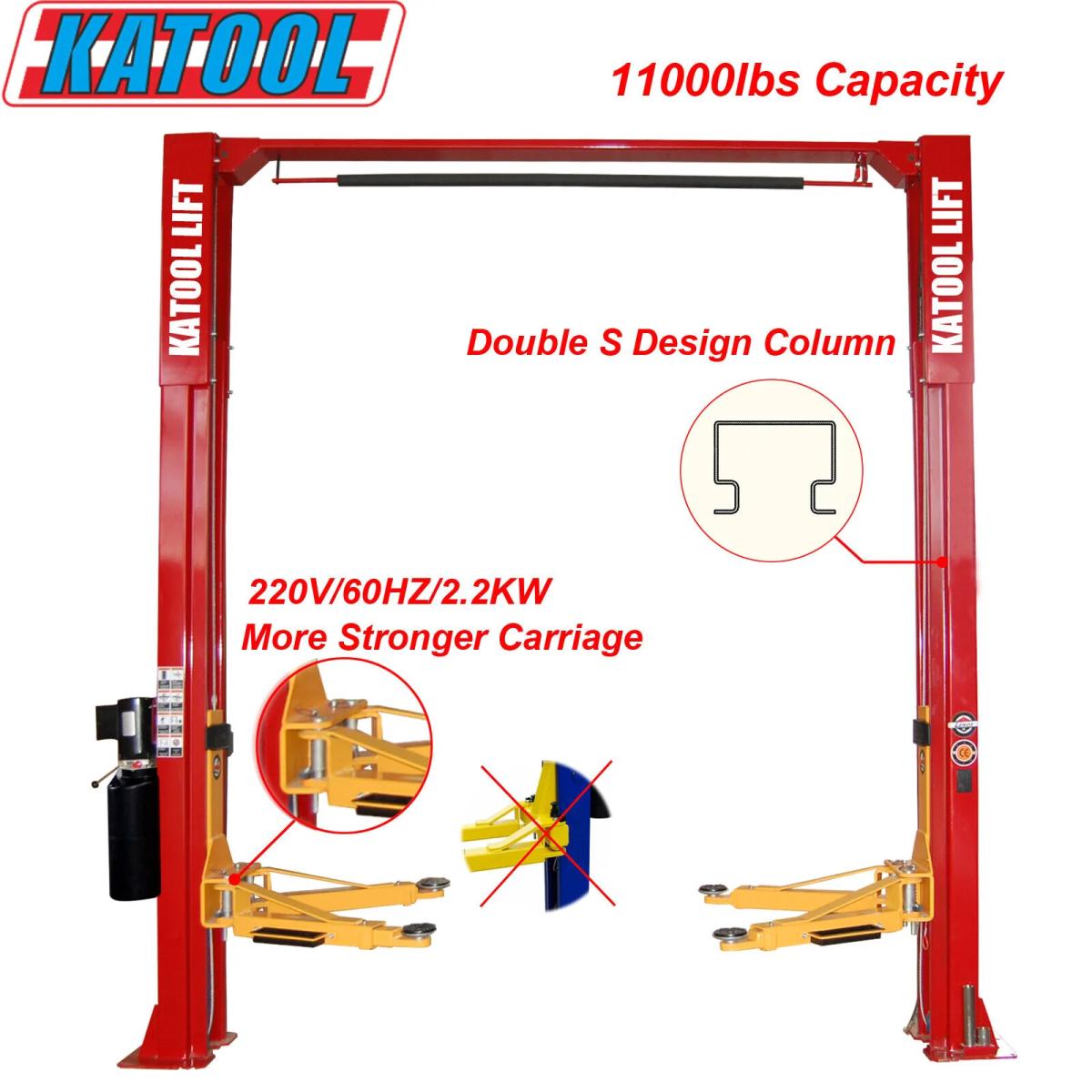

KATOOL KT-M110
11,000 lb 2-Post Clearfloor Lift$2,499
Features
Type: KT-M110 11000lbs car lift
- 11000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Symmetric clear-floor design
- Manual safety release from two sides

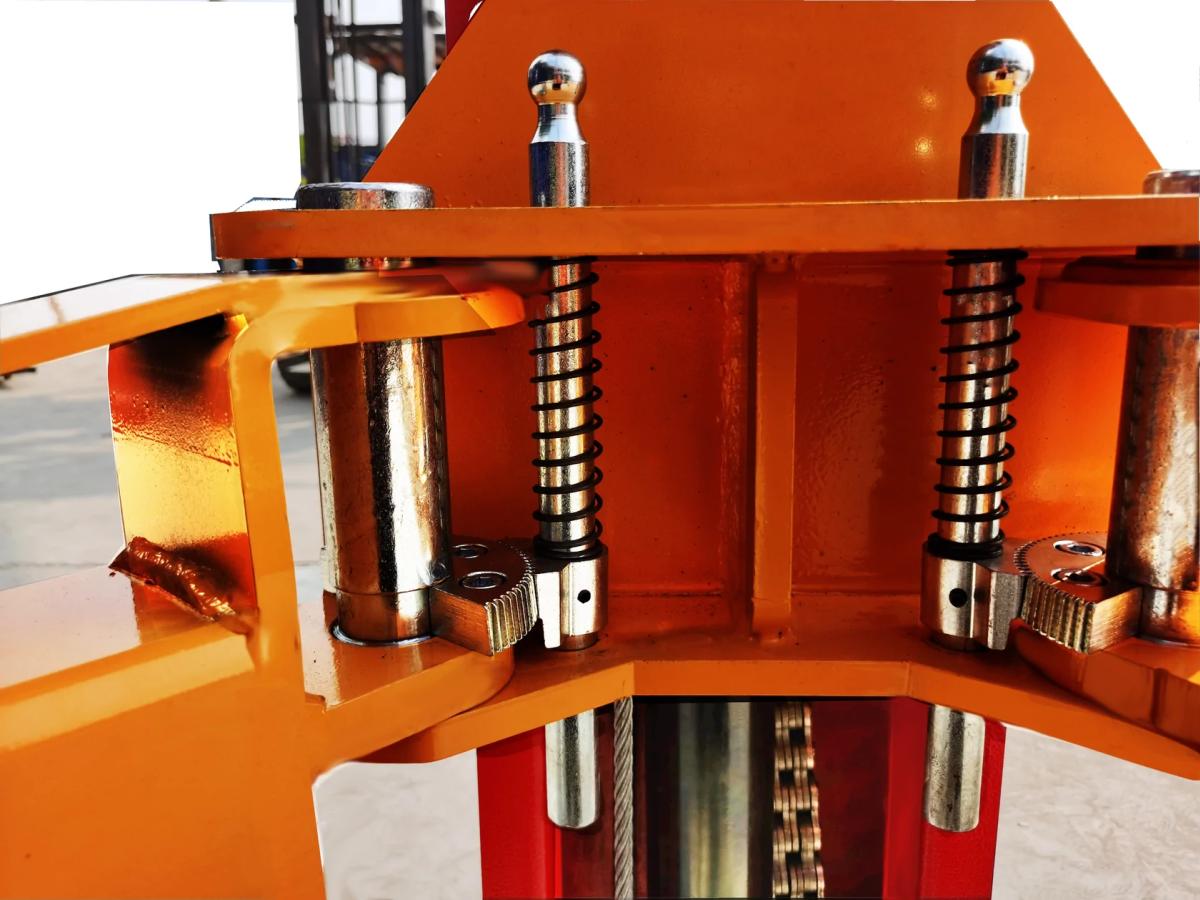

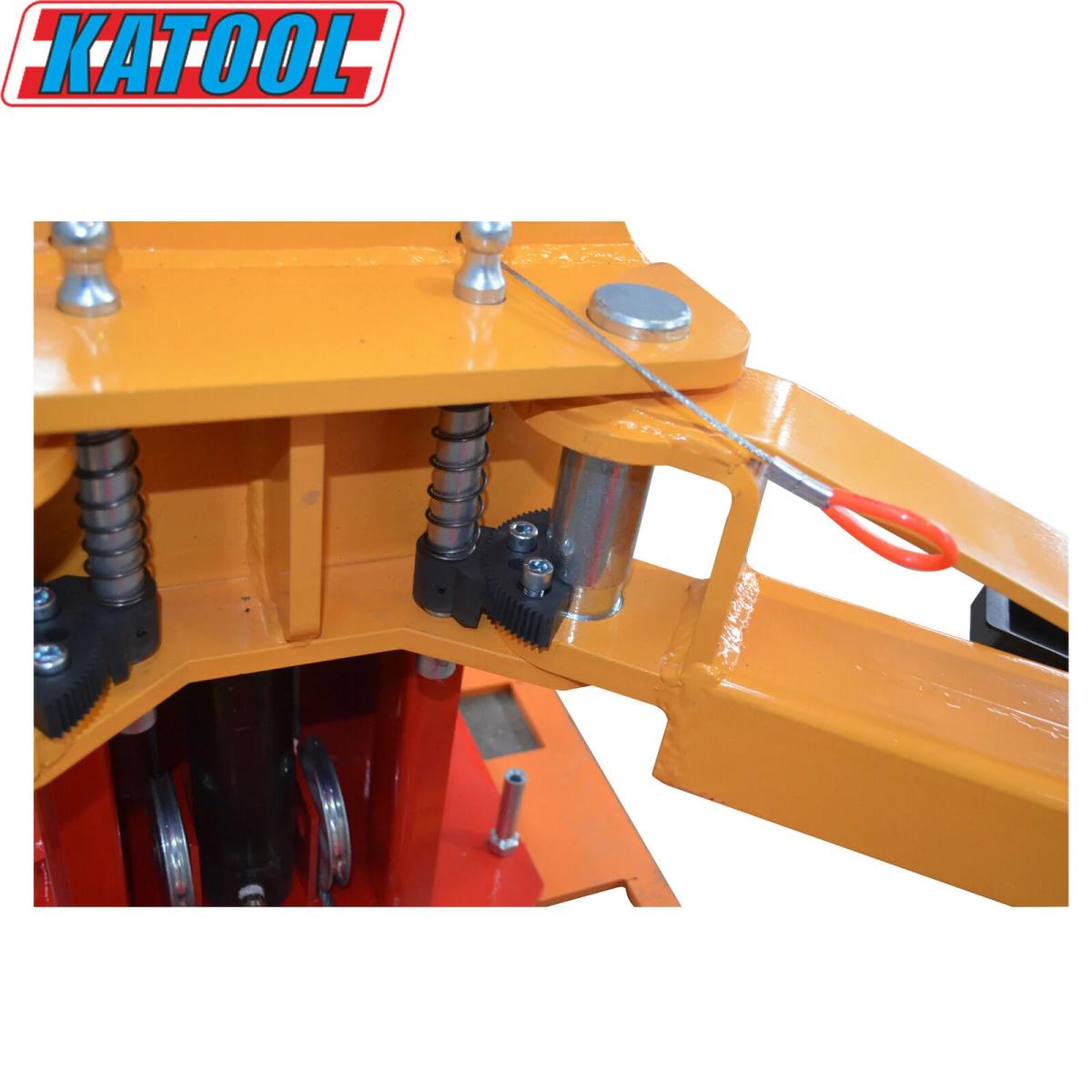

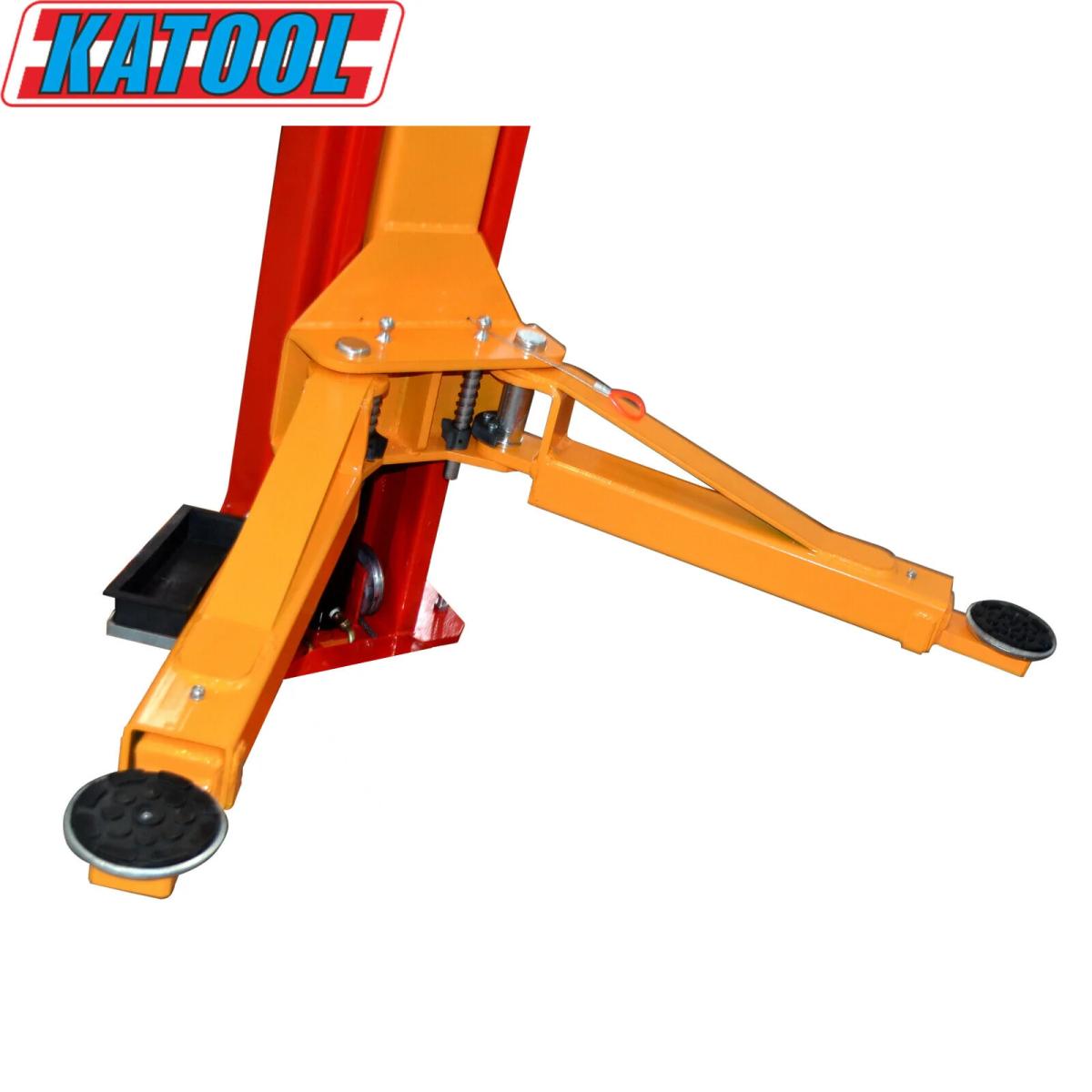

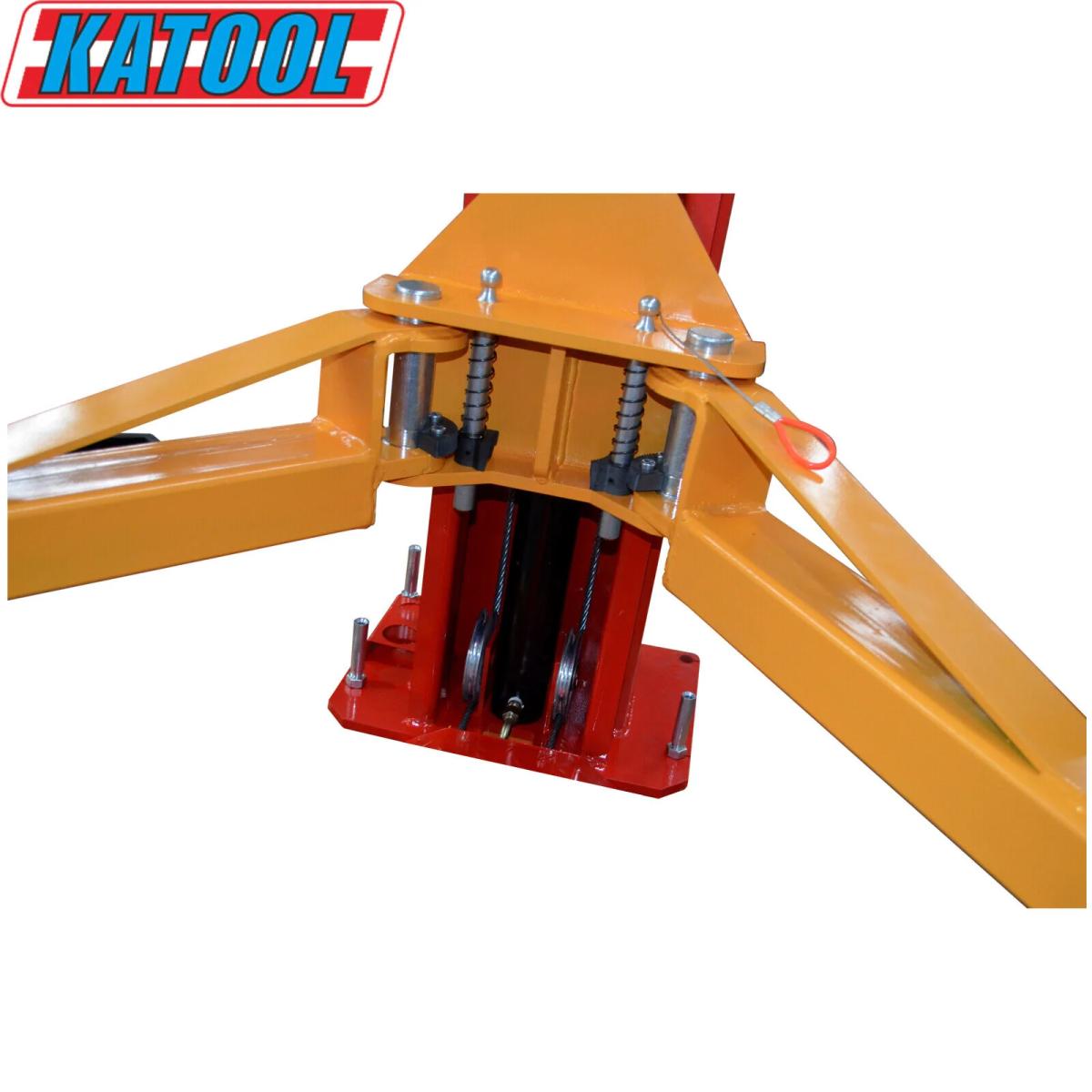

- Symmetric arm

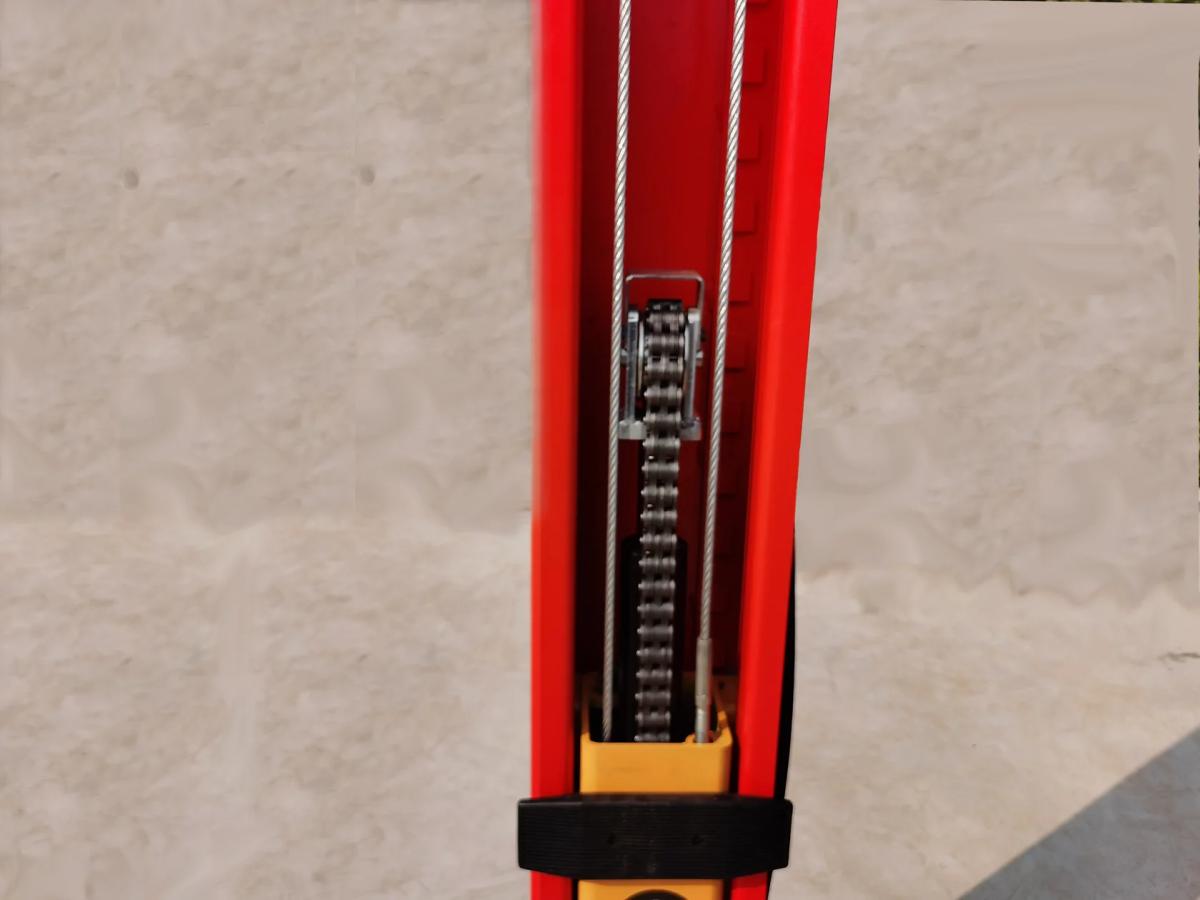

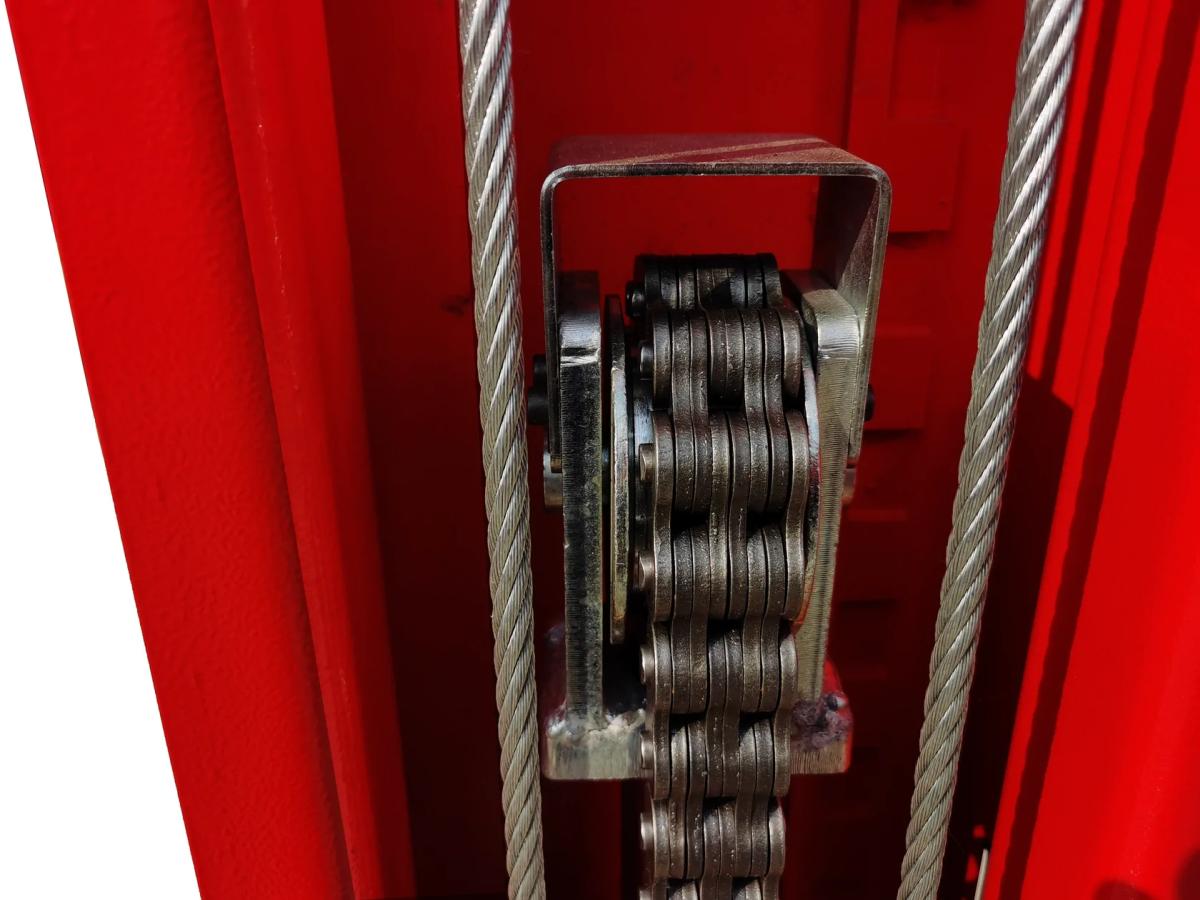

- Dual Hydraulic Chain-Drive Cylinders
- Robber pad door opening protection
- Comes with extension support adaptor sets of +30mm and +120mm
- Added overhead safety shutoff bar
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional)
Specifications
Lifting Capacity | 11000lbs.(5000KG) |
Max. Lifting Height | 70.75″/1800mm |
Min. Height | 4.25″/110mm |
Height Overall | 141.25″/3587mm |
Width Overall | 142.25″/3614mm |
Outside Column | 128″/3250mm |
Inside Column | 110.25″/2800mm |
Dirve-Thru Clearance | 94.5″/2400mm |
Front Arm Reach (Min) | 30.75″/780mm (2 stages) |
Front Arm Reach (Max) | 50.5″/1280mm (2 stages) |
Rear Arm Reach (Min) | 30.75″/780mm (2 stages) |
Rear Arm Reach (Max) | 50.5″/1280mm (2 stages) |
Motor | 220VAC/60HZ/1PH/2.2KW |
Net Weight | 1367lbs/620KG |
Warranty | 1 Year Parts / 5 Year Structural |
Details on Freight
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
KATOOL Locations:
- Ontario, CA
- Bolingbrook, IL
- Pooler, GA
- Brookshire, TX
*Locations subject to change, please contact us for the most updated information
