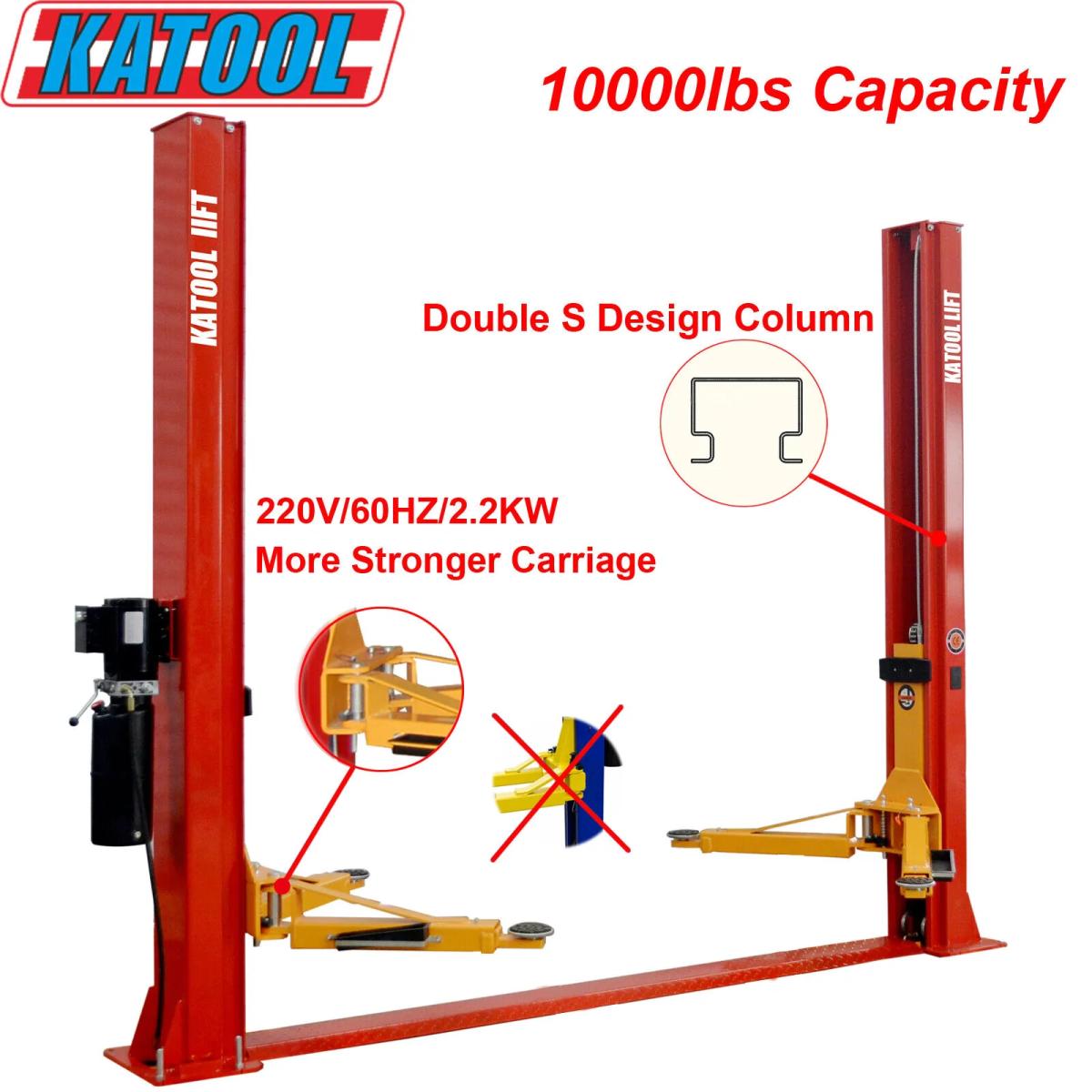

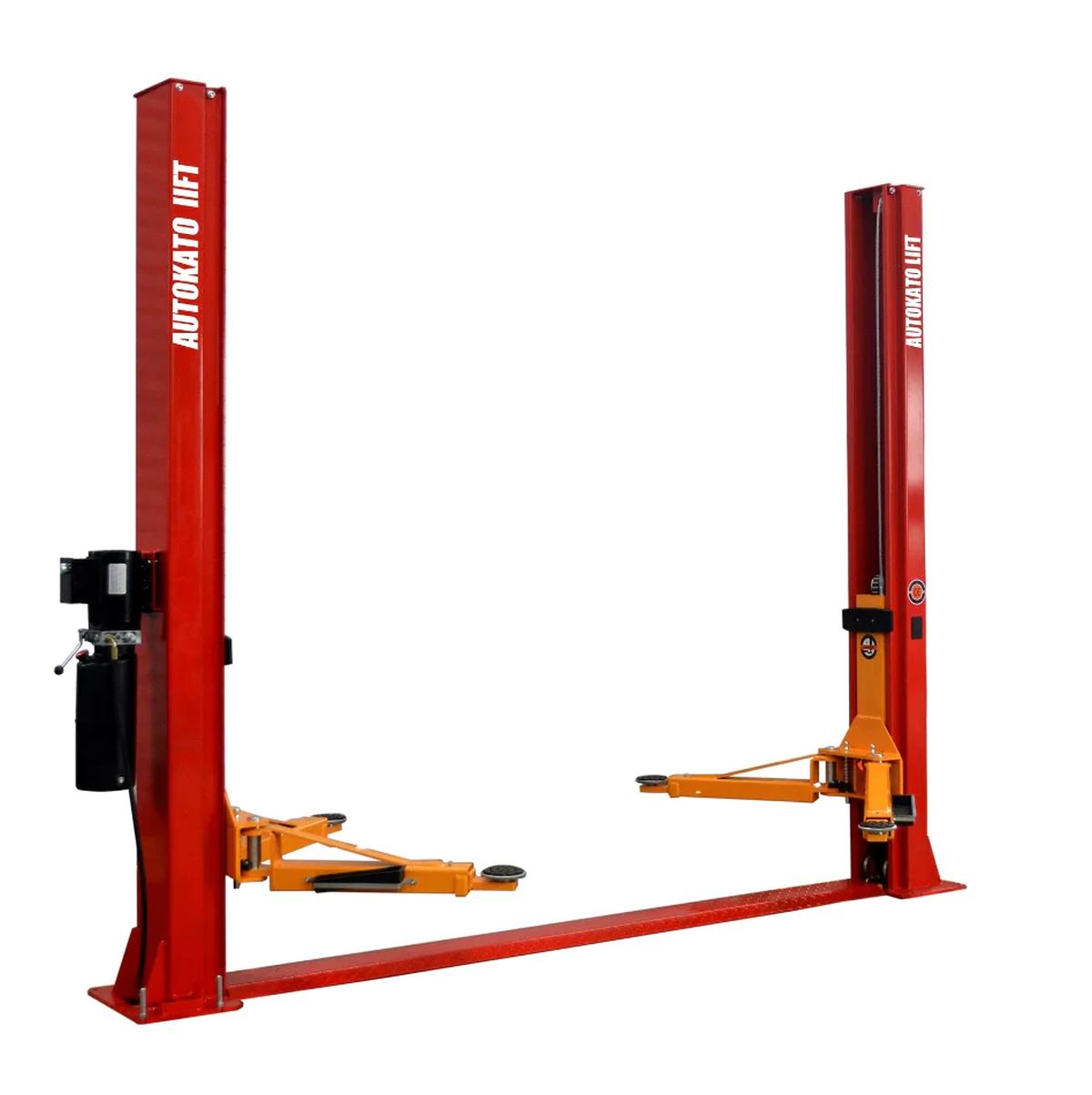

KATOOL KT-H100
10,000 lb 2-Post Symmetric Arms Baseplate Lift220V
$2,299
$1,999
Features
- Type: KT-H100 10000lbs car lift
- 10000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Manual safety release from two sides

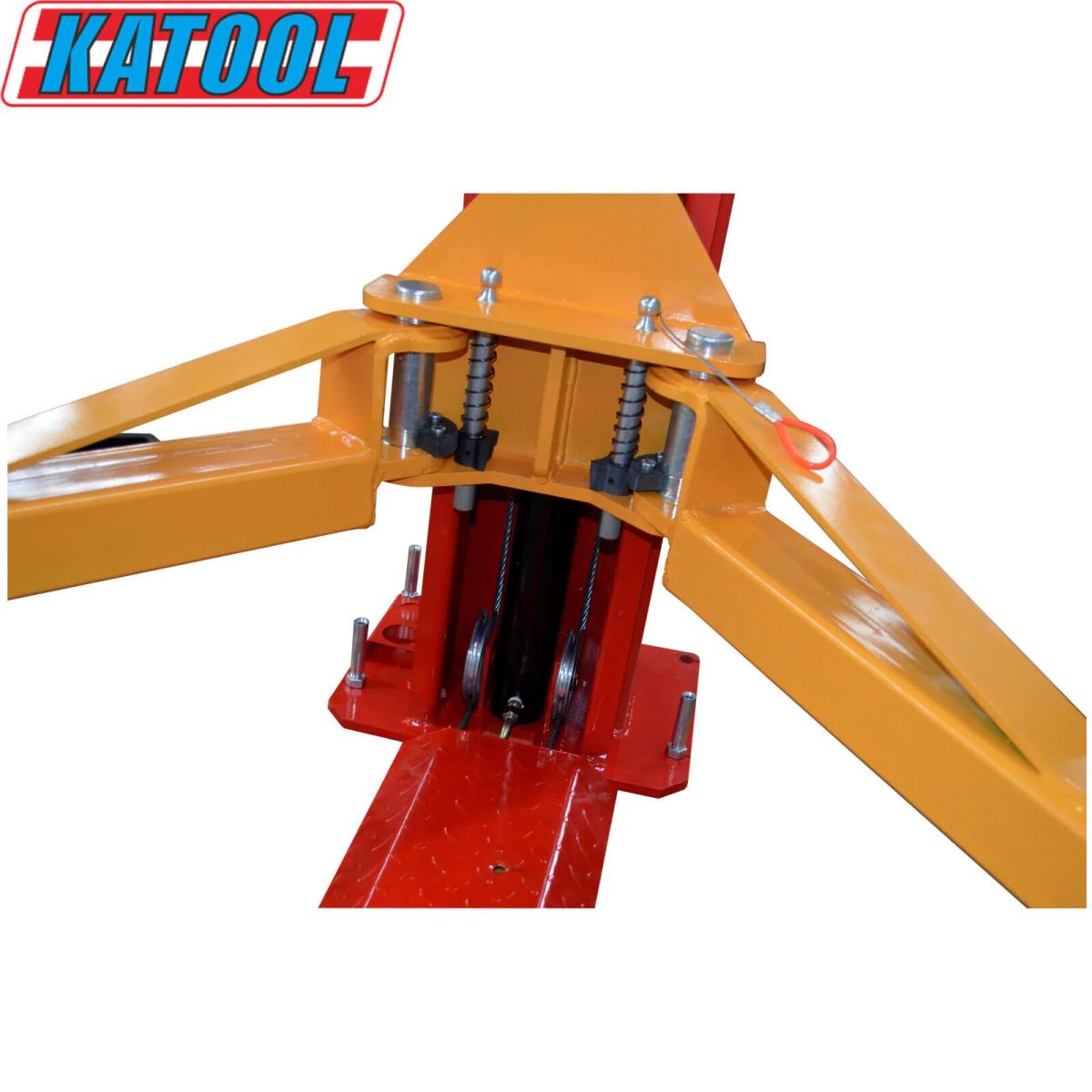

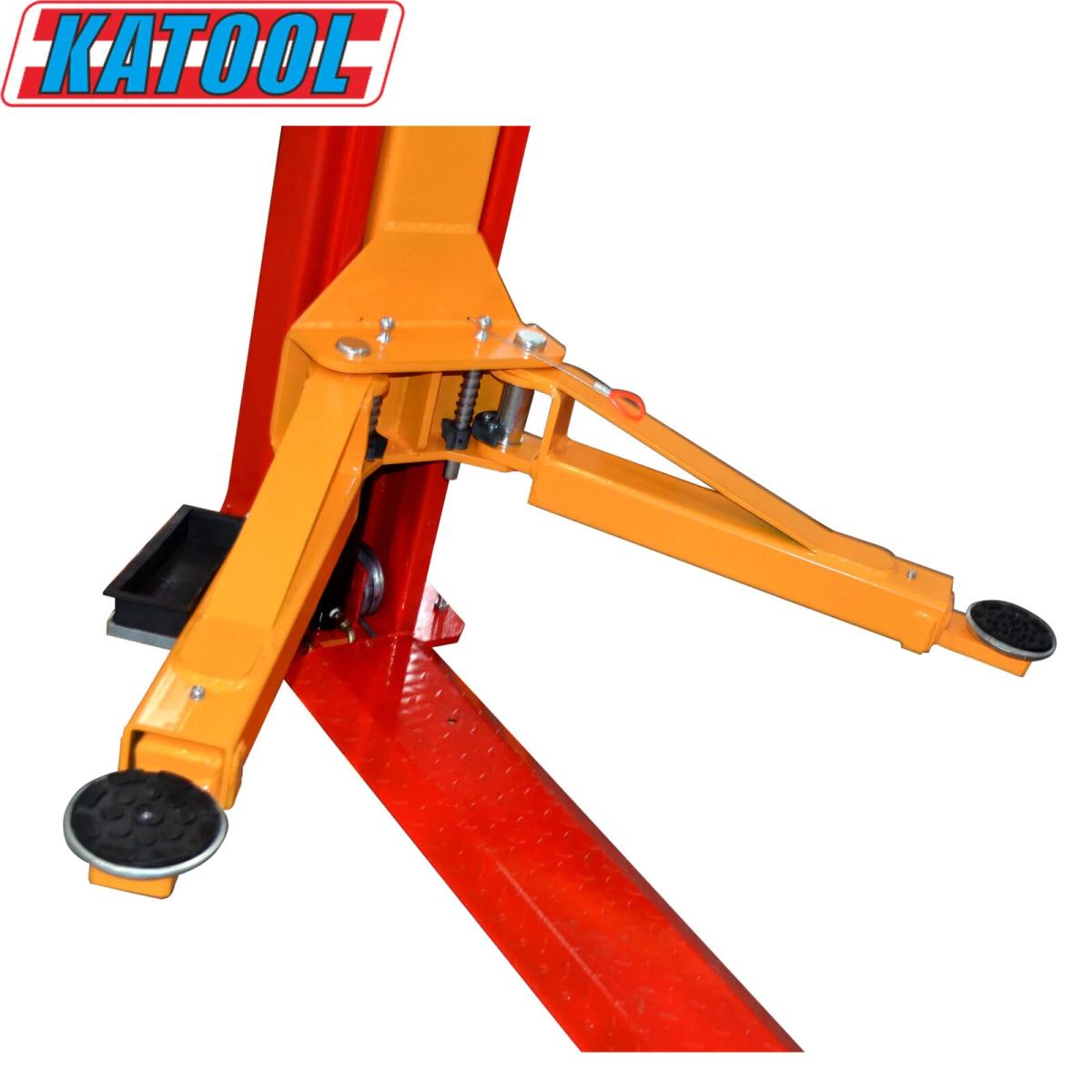

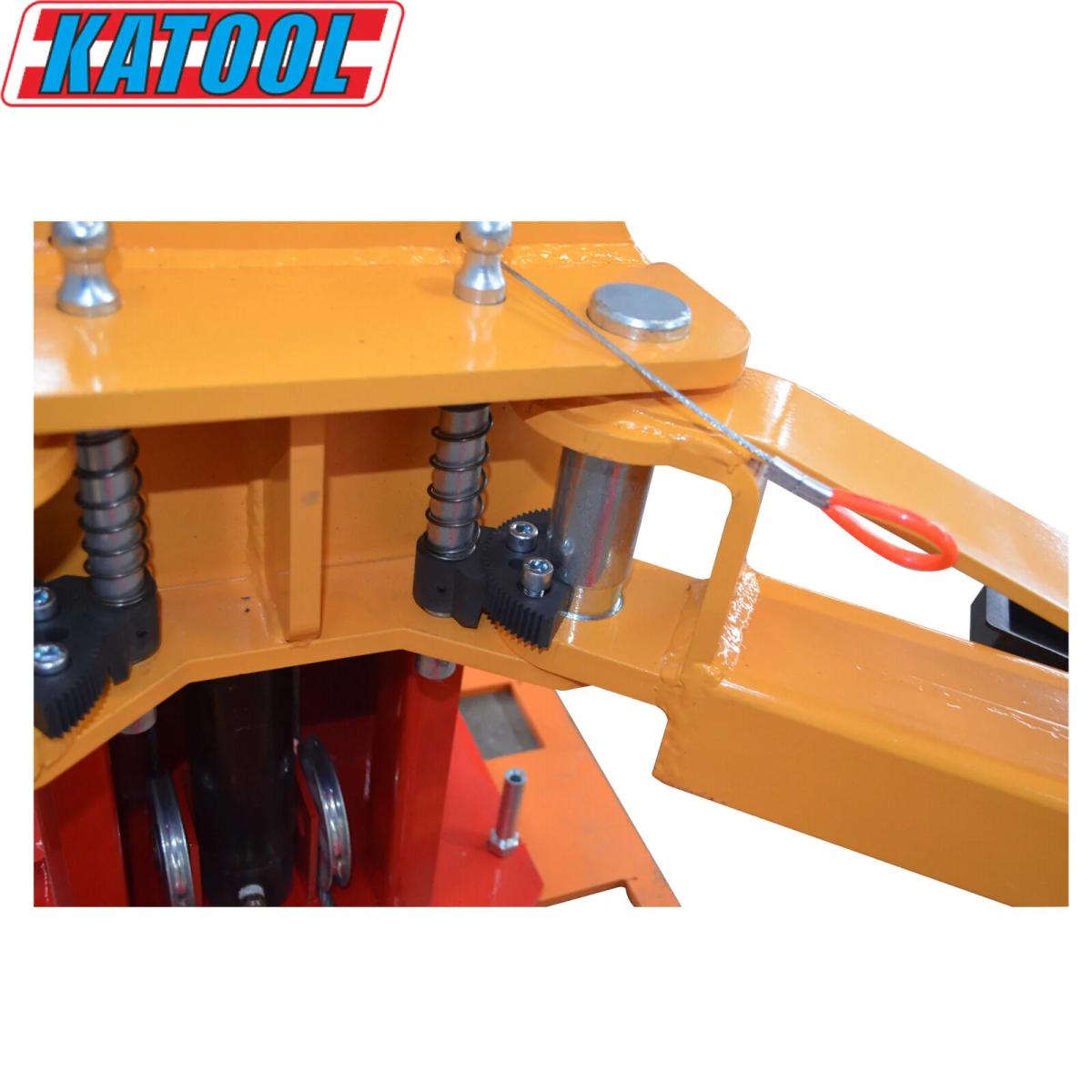

- Symmetric arms
- Base plate design
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection
- Comes with extension support adaptor sets of +30mm and +120mm
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)

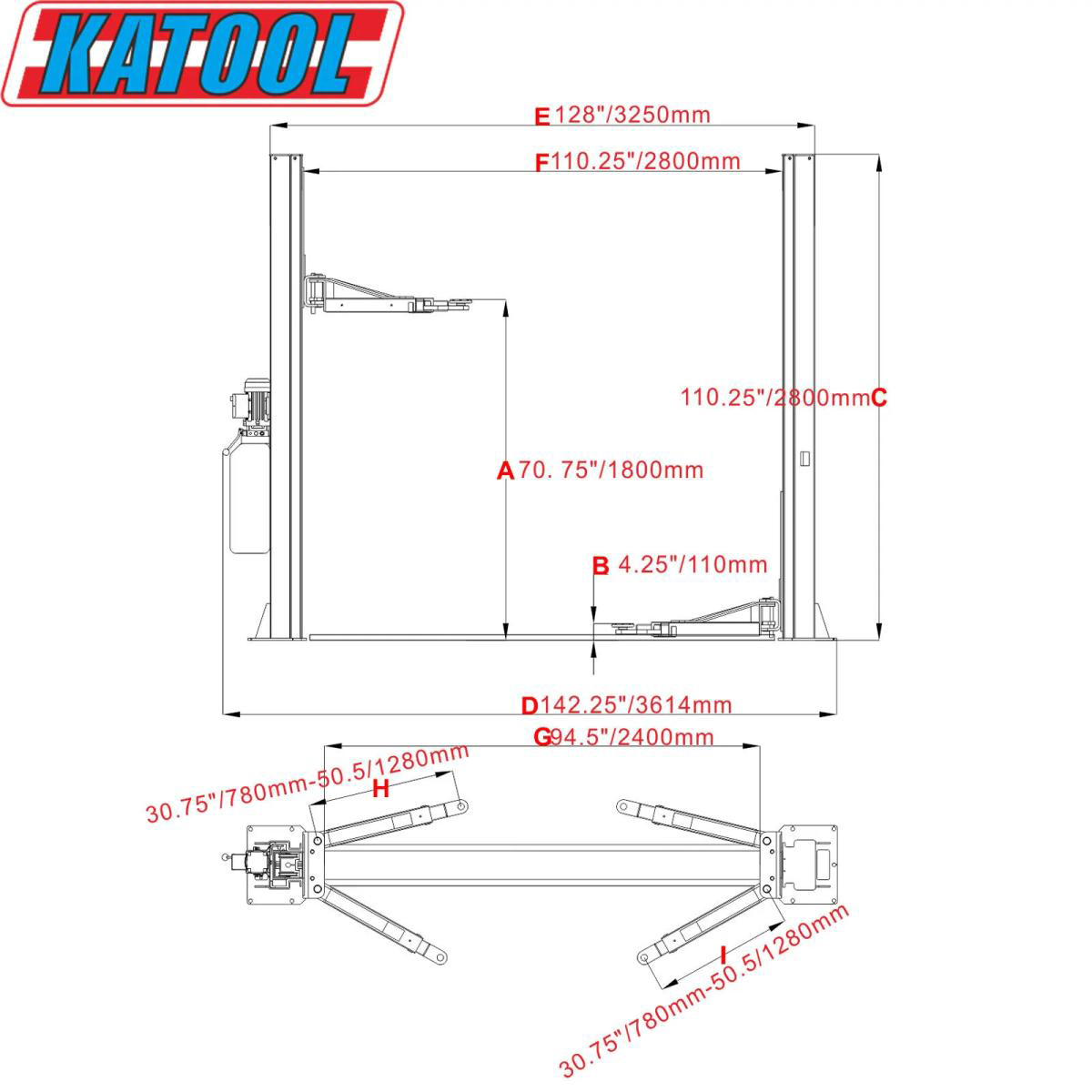

Specifications
| Lifting Capacity | 10000lbs/4500KG |
| Max. Lifting Height | 70.75"/1800mm |
| Min. Height | 4.25"/110mm |
| Height Overall | 110.25"/2800mm |
| Width Overall | 142.25"/3614mm |
| Outside Column | 128"/3250mm |
| Inside Column | 110.25"/2800mm |
| Dirve-Thru Clearance | 94.5"/2400mm |
| Front Arm Reach (Min) | 30.75"/780mm (2 stages) |
| Front Arm Reach (Max) | 50.5"/1280mm (2 stages) |
| Rear Arm Reach (Min) | 30.75"/780mm (2 stages) |
| Rear Arm Reach (Max) | 50.5"/1280mm (2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight | 1256lbs/570KG |
| Warranty: | 1 Year Parts / 5 Year Structural |
*Concrete thickness must be at least 6” with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
ACCESSORIES

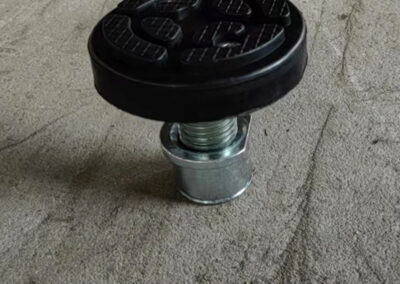

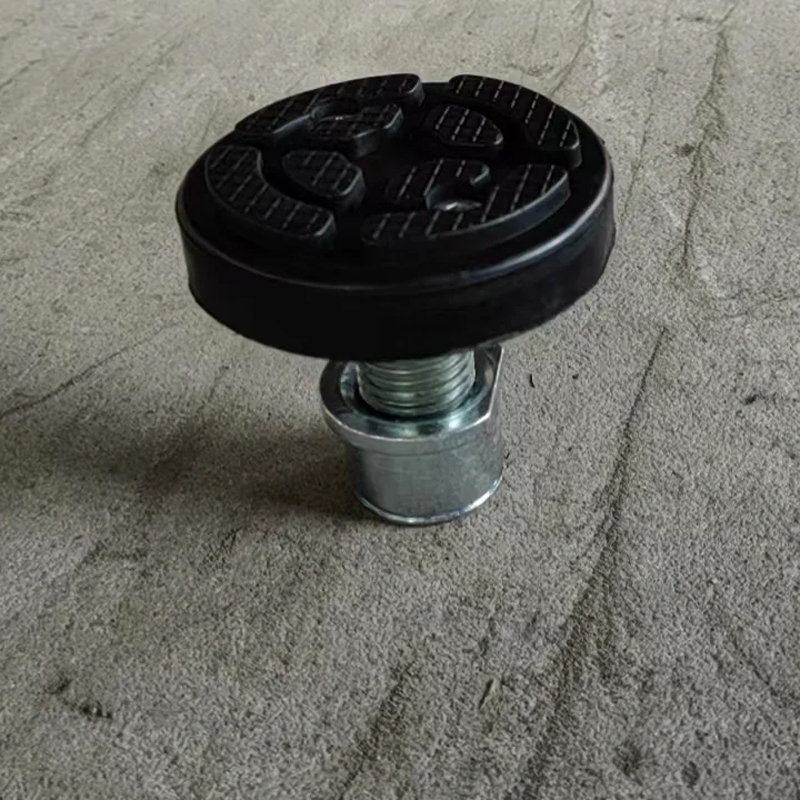

KT-MP1
$89 – Lift Screw Pad (set of 4)

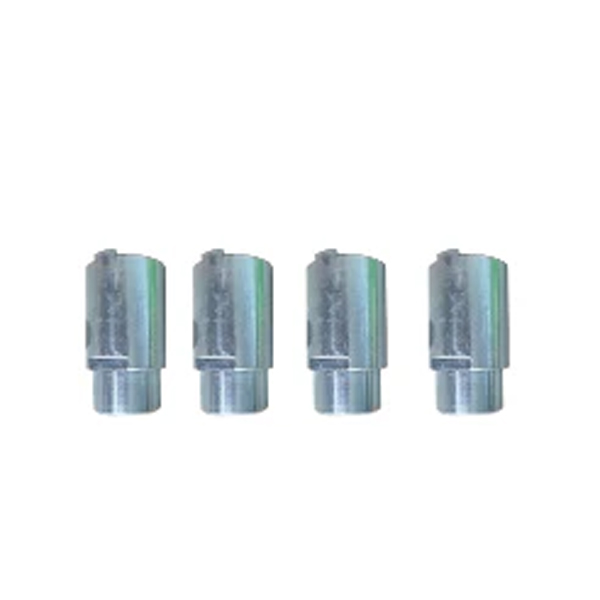

KT-MP2
$99 – Lift Height Extensions (Standard 3.94”, Set of 4)

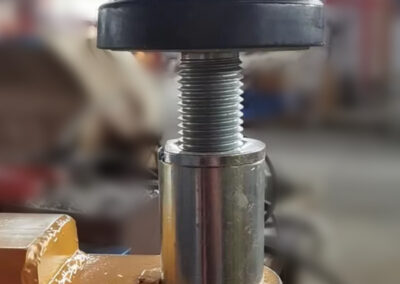

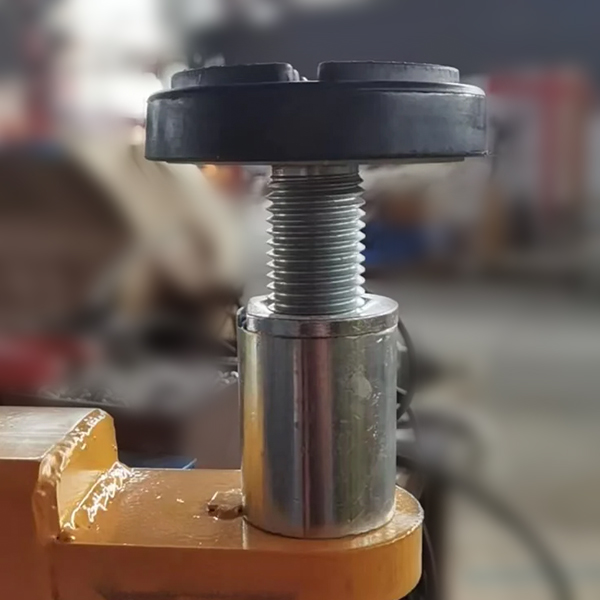

KT-MP3
$169 – Lift Screw Pad and Standard Extension (Set of 4)

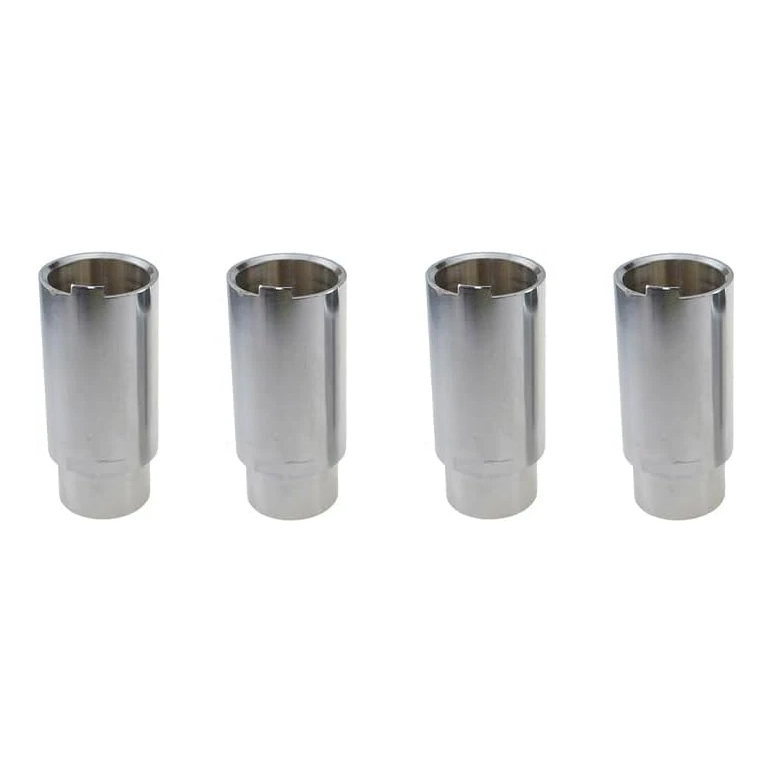

KT-MP4
$119 – Height Extensions (Tall 6”, set of 4)

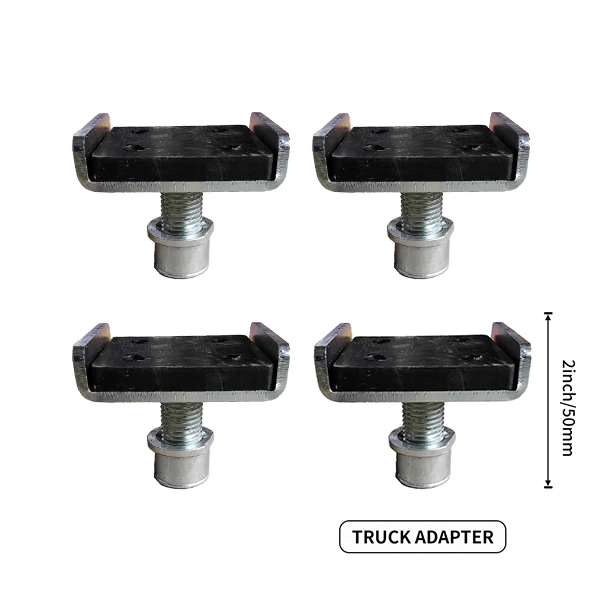

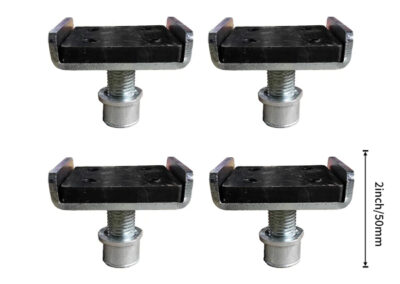

KT-MP5
$199 – Truck Frame Cradle Adapters (Set of 4)

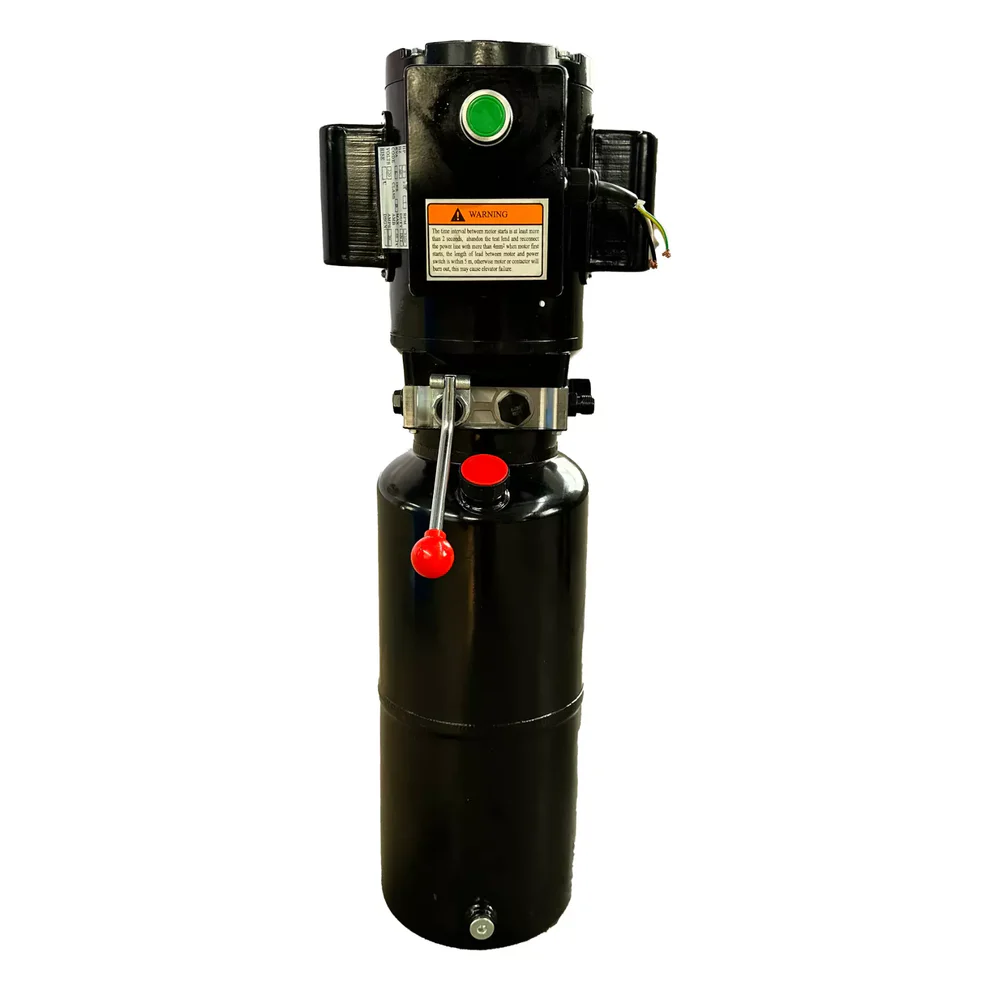

KT-2PL110
$299 – 2-Post Lift Power Unit – 110V (Replacement Unit)

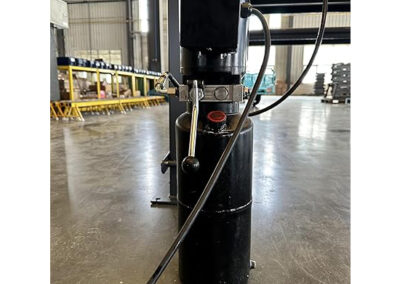

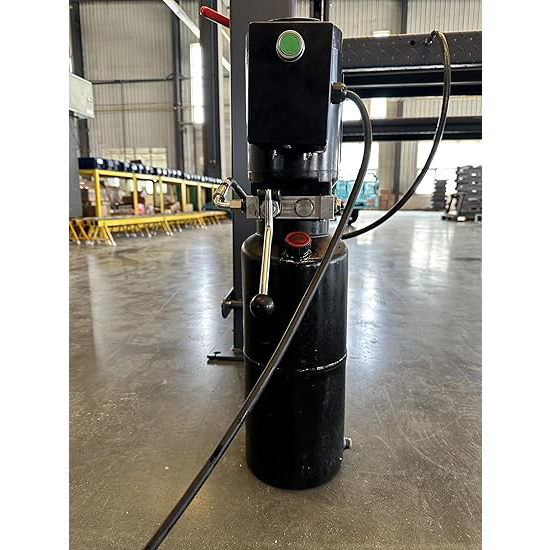

KT-2PL220
$299 – 2-Post Lift Power Unit – 220V (Replacement Unit)
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
