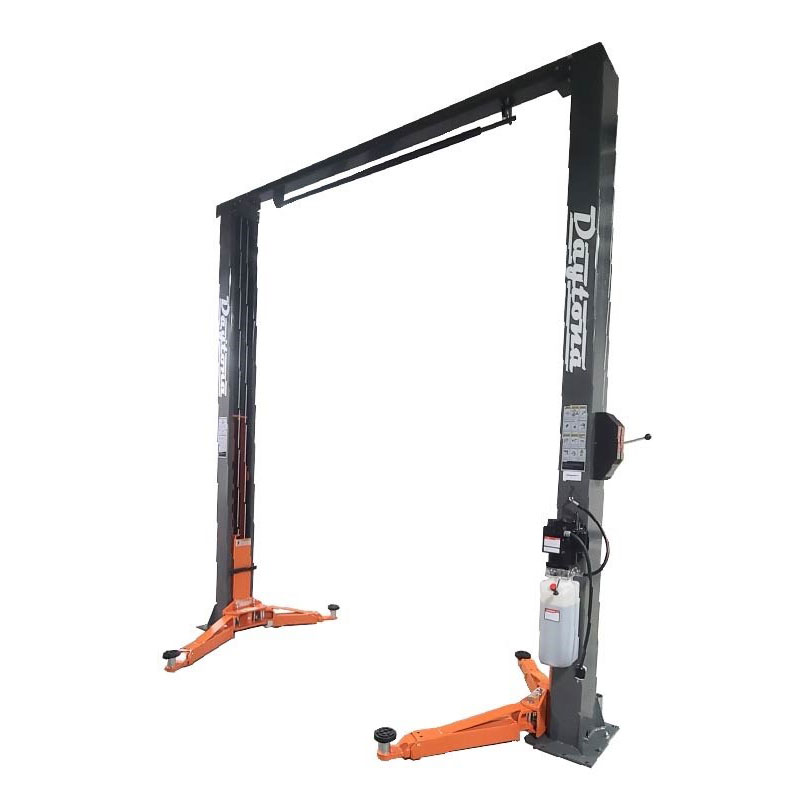

Daytona LTPO15
15,000 LBS 2-Post Overhead Lift
$7,740
$6,270
Features / Specs
15,000 lbs Capacity • Overhead Design • Height Kit Included
The LTPO15 is a heavy-duty 15,000 lb capacity 2-post overhead lift designed for larger vehicles and commercial fleets. Featuring dual direct drive hydraulic cylinders and automatic safety locks, it delivers maximum lifting power and stability.
Please Note: 2ft Height Extension Kit comes WITH this lift. The lift MUST be assembled with the height kit.
- 15,000 lbs lifting capacity maintained with arms fully extended
- Dual direct drive Hydraulic cylinders
- Three stage front arms and rear arms
FEATURES
- 15,000 lbs lifting capacity with arms fully extended.
- Automatic safety locks with single point lock.
- Dual direct drive Hydraulic cylinders.
- Three stage front and rear arms.
- Height limit switch and rubber door guards.
- Powder coat finish for maximum durability.
SPECS
Power Requirements
240V / 3HP / 13 Amp / 1 Ph / 60Hz
Dimensions, colours and items are subject to change without prior notice due to our continuous improvement program.
| Specification | Measurement |
|---|---|
| Lifting Capacity | 15,000 lbs |
| Overall Height (w/ Extension) | 176.8" [4489mm] |
| Overall Width | 152.8" [3880mm] |
| Lifting Height | 3.9" ~ 74.8" |
| Shipping Weight (Lift) | 2700 lbs |
FAQ
Does the LTPO15 include a height extension kit?
Yes, the LTPO15 comes standard with a 2ft height extension kit. The lift must be assembled with this kit installed as the cables and hoses are sized specifically for this configuration.
What is the lifting capacity of the LTPO15?
The LTPO15 has a maximum lifting capacity of 15,000 lbs, which is maintained even when the arms are fully extended.
What are the power requirements?
The unit requires a 240V, 3HP, 13 Amp, Single Phase (PH1), 60Hz power supply.
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
