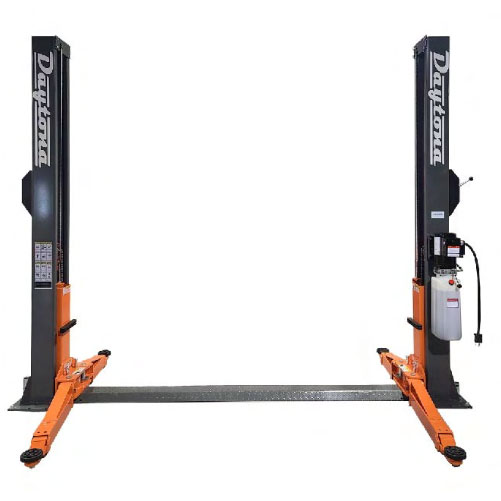

Daytona LTPF9
9,000 LBS 2-Post Floorplate Lift
$3,140
$2,550
Features / Specs
9,000 lbs lifting capacity for professional shops.
The LTPF9 is a robust 2-post automotive lift featuring a floorplate design, ideal for facilities with lower ceiling heights. Equipped with chain-over hydraulic cylinders, high-polymer slide blocks, and three-stage front arms, it offers a reliable and versatile lifting solution for vehicles up to 9,000 lbs.
Product Highlights
- 9,000 lbs Lifting Capacity
- Single point safety lock release
- Chain-over hydraulic cylinders
- Standard truck adapters included
Features
- 9,000 lbs lifting capacity
- Automatic safety locks with single point release
- High polymer polyethylene wear resistant slide blocks
- Chain-over hydraulic cylinders for powerful lifting
- Three stage front arms, screw up pads, and truck adapters
- Rubber door guards and height limit switch
Specs
Power Requirements
240V 3HP 13A PH1 60Hz
Key Dimensions
- Overall Height: 110.0"
- Overall Width: 131.2"
- Drive-Through: 98.9"
Dimensions, colours and items are subject to change without prior notice due to our continuous improvement program.
| Specification | Measurement |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Height | 4.5" – 74.8" |
| Width Between Columns | 110.5" |
| Shipping Dimensions: Lift | 114" x 18" x 30" / 1300 lbs |
| Shipping Dimensions: Pump | 31" x 12" x 11" / 60 lbs |
FAQ
What is the minimum ceiling height required for the LTPF9?
Because the LTPF9 is a floorplate design with no overhead bar, the minimum ceiling height is determined by the height of the columns (approx. 110 inches) plus the height of the vehicle you intend to lift. It is significantly more flexible than clear-floor models.
Does this lift include truck adapters?
Yes, standard truck adapters are included with every LTPF9 purchase, allowing you to safely lift SUVs and trucks immediately after installation.
What are the concrete requirements for installation?
For safe operation, the lift must be installed on a minimum of 4-6 inches of 3000-4000 PSI concrete. Always refer to the user manual for specific anchoring instructions.
What is a "single point release" safety lock?
The single point release allows the operator to disengage the safety locks on both columns from one side of the lift, making the lowering process faster and more convenient.
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
