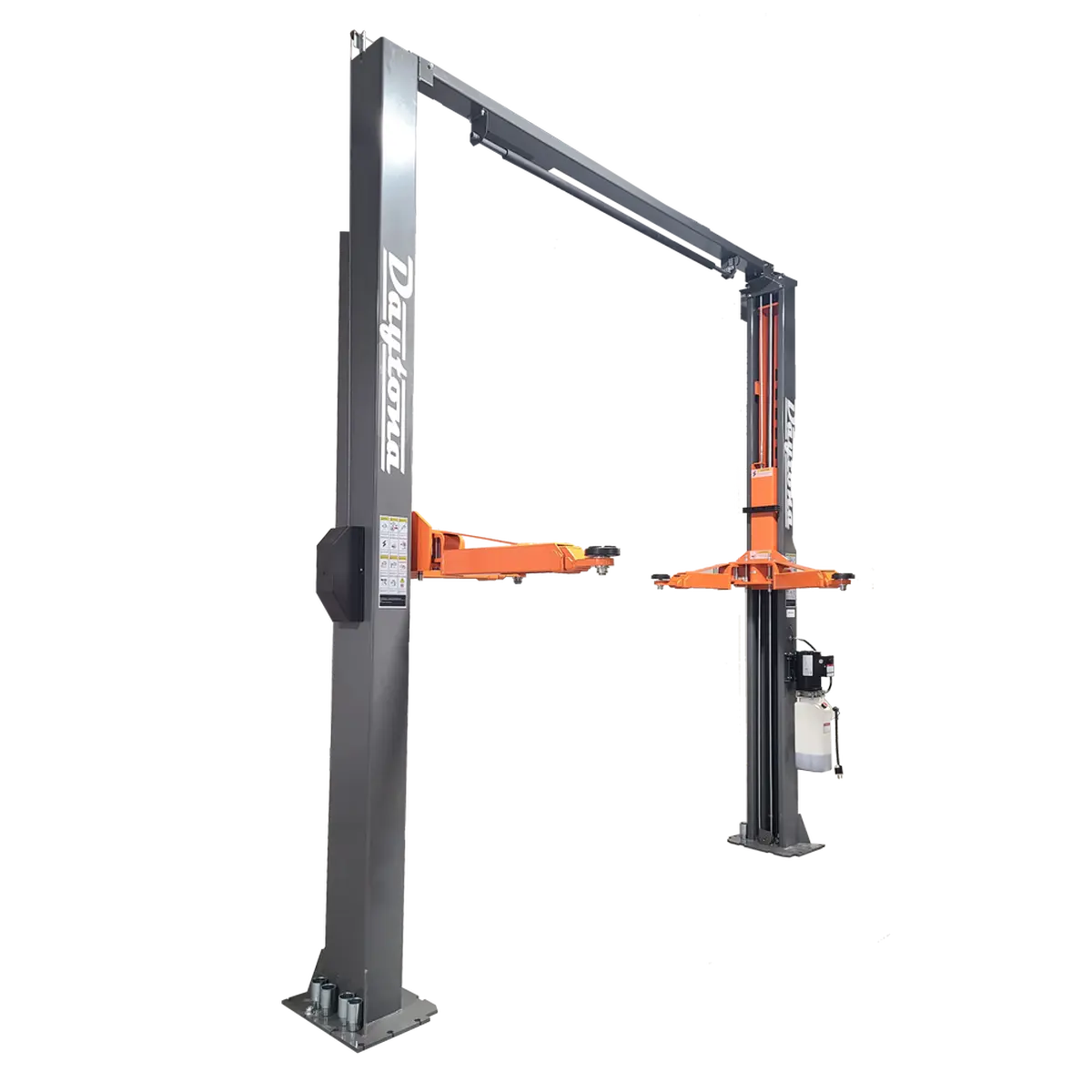

Daytona LTPA12
12,000 LBS 2-Post Adjustable Lift Heavy Duty Adjustable Width
$5,140
$4,170
Features / Specs
12,000 lbs Capacity • 3 Width Settings • Industrial Grade Finish
Engineered for commercial auto repair facilities demanding reliability and heavy-duty lifting power. Features dual direct drive hydraulic cylinders with cable equalization, automatic safety locks, and three adjustable width settings (107" / 113" / 119") to accommodate a wide range of vehicles from passenger cars to heavy trucks.
- Dual direct drive hydraulic cylinders with cable equalization
- Automatic safety locks with single point lock release system
- Three stage front arms and rear arms with truck adapters standard
- 3 adjustable width settings: 107" / 113" / 119" drive-through
Features
- 12,000 lb lifting capacity for cars, trucks, and SUVs.
- Automatic safety locks with single point lock release system.
- High polymer polyethylene wear resistant slide blocks.
- Dual direct drive hydraulic cylinders with cable equalization.
- Three stage front arms and rear arms.
- 3-stage screw up pads for precise vehicle contact.
- Height limit switch for safe operation.
- Full length rubber door guards for protection.
- Powder coat finish for lasting durability.
- Truck adapters included as standard.
Specs
Power Requirements
240V / 3HP / 13A / PH1 / 60Hz
Performance
- Lifting Capacity: 12,000 lbs
3 Width Settings
- Narrow: 107"
- Medium: 113"
- Widest: 119"
| Specification | Measurement |
|---|---|
| Overall Width (Narrow / Wide) | 150.3" / 162.1" |
| Overall Height | 141.7" [3598mm] |
| Column Height | 135.0" [3430mm] |
| Arm Reach | 66.5" [1689mm] |
| Arm Range (Min / Max) | 3.9" – 68.9" |
| Base Width | 18.7" [475mm] |
| Column Depth | 9.4" [240mm] |
| Side Profile Height | 59.7" [1517mm] |
| Side Profile Depth | 20.9" [530mm] |
| Shipping (Lift) | 138" x 22" x 41" | 2,400 lbs |
| Shipping (Pump) | 31" x 11" x 12" | 60 lbs |
| Shipping (Opt. Height Kit) | 32" x 15" x 18" | 210 lbs |
Technical Blueprints

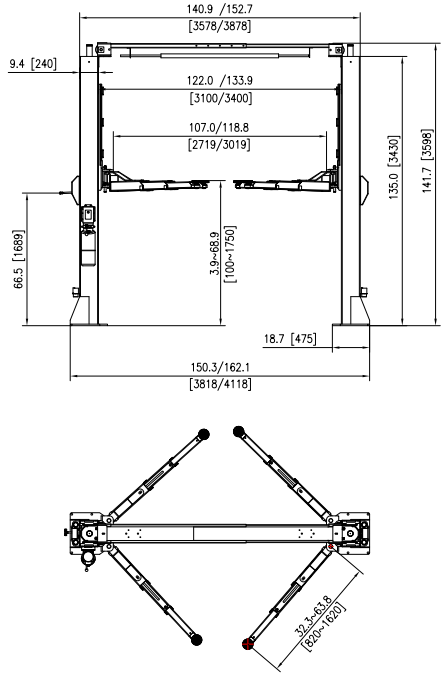

Front & Top Views

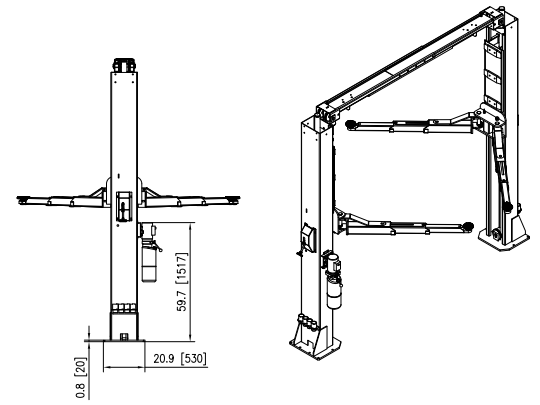

Side Views
What is the lifting capacity of the LTPA12?
The LTPA12 has a maximum lifting capacity of 12,000 lbs, suitable for passenger cars, SUVs, and trucks.
What width settings does the LTPA12 offer?
The LTPA12 offers 3 adjustable width settings: Narrow drive-through width of 107", Medium of 113", and Widest of 119". The overall width changes from 150.3" to 163" depending on the setting.

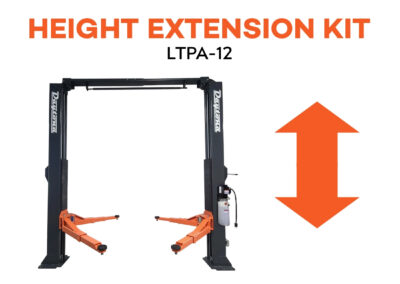

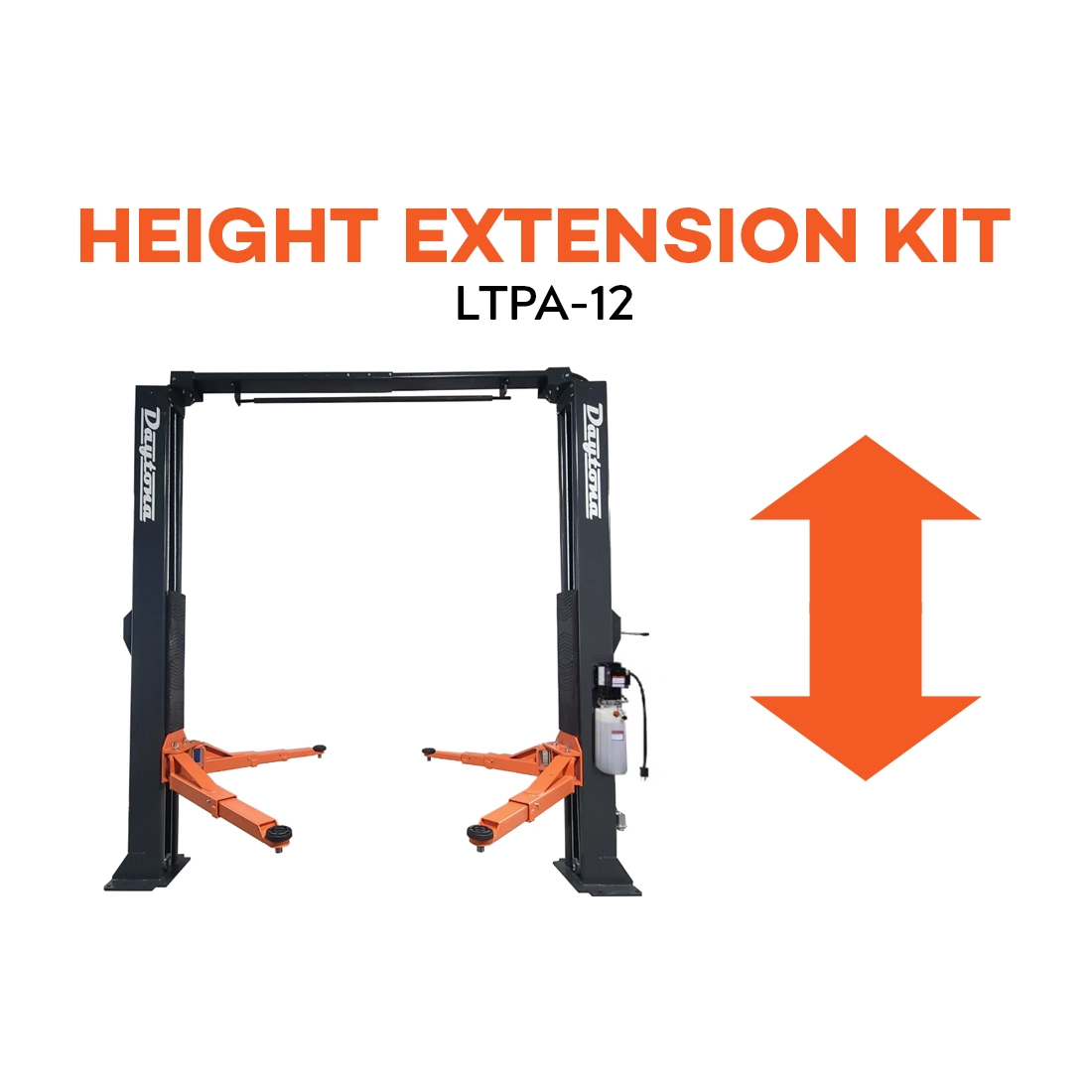

Is there an optional height extension available?
Yes, an optional 2ft Height Extension Kit is available (sold separately). It adds 2 feet of clearance under the overhead bar. Shipping dimensions for the kit are 32" x 15" x 18" at 210 lbs.
What power supply does the LTPA12 require?
The LTPA12 requires a 240V, 3HP, 13 Amp, single phase (PH1), 60Hz power supply.
What safety features are included?
The LTPA12 includes automatic safety locks with a single point lock release system, a height limit switch, high polymer polyethylene wear resistant slide blocks, and full length rubber door guards.
ACCESSORIES
LTPA12-EXT
$470 – ADJUSTABLE LIFT HEIGHT EXTENSION KIT
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
